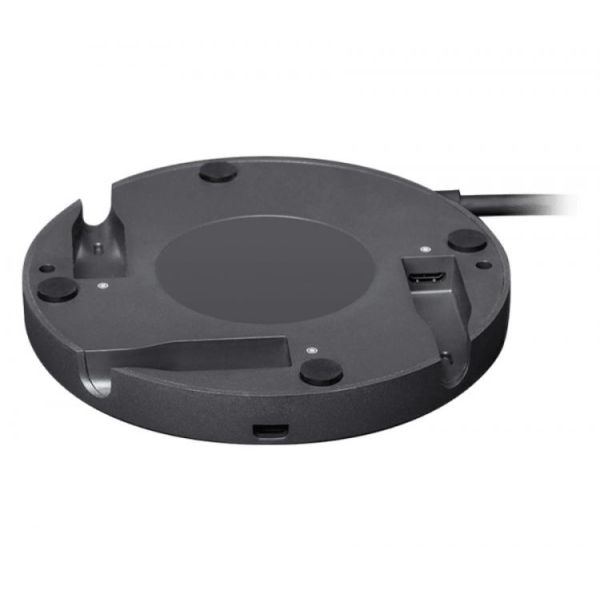

Logitech Rally Mic Pod Hub

Customise microphone placement for conference table configuration. Connect up to three Rally Mic Pods for Hub and Spoke layouts for flexible placement and efficient cable routing. Reduce cross table cabling. Connects both Mic Pods and additional Hubs.

Your Conference Room. Your Way

Rally Mic Pod Hubs provide installers with the flexibility to customise microphone placement on virtually any conference table. An alternative to daisy chaining Mic Pods to one another, the Rally Mic Pod Hub provides three connections that support any combination of Mic Pods or additional hubs. Under table mounting hardware helps conceal cables for a clean look.

Any Table - Any Shape

Eliminate the back and forth cabling on a U shaped or asymmetrical conference tables and add placement flexibility. With three connections for an array of Mic Pods, Rally Mic Pod Hub cleans up cabling so you can place mics within easy reach of the meeting room participants.

Hidden Cabling

Eliminate cross table cabling between mic pods by connecting them through grommets to hubs beneath the table. This keeps audio cabling out of sight for a professional appearance.

Mic Pod Mobility

The Rally Mic Pod Hub lets you connect each Mic Pod via a single cable. When meeting participants want to move a Mic Pod to clear table space or to put the mute control within easy reach, they can do so without tugging on neighboring mic pods. Unlike systems that require fixed mic positions, Rally automatically recalibrates the RightSound™Mic Matrix 125 times per second for consistent echo cancellation, noise suppression, and beamforming performance.

General Specifications

• Three 12 Pin Connections for any Combination of Rally Mic Pods or Additional Rally Mic Pod Hubs
• Under Table Mounting Hardware
• Captive 9.6ft (2.92m) 12 Pin Cable

System Requirements

• Rally or Rally Plus
• Rally Bar or Rally Bar Mini Configured with External Rally Mic Pods

*Please Note - Rally Mic Pod Hubs work with Logitech Rally Systems, and are not Compatible with the Standalone USB Rally Camera*

Mic Pod Hub Dimensions

• Height - 0.63in / 16mm
• Width - 4.01in / 102mm
• Depth - 4.01in / 102mm

Package Contents

• Mic Pod Hub
• Mounting Hardware
• Documentation
