Logitech Rally Mic Pod - Graphite

Expand Audio Coverage with Modular, Beamforming Microphones with RightSound™ Technology for Clear, Natural, Conversational Sound, Convenient Mute Control and Indicator Light, for use with Logitech Rally, Rally Bar and Rally Bar Mini

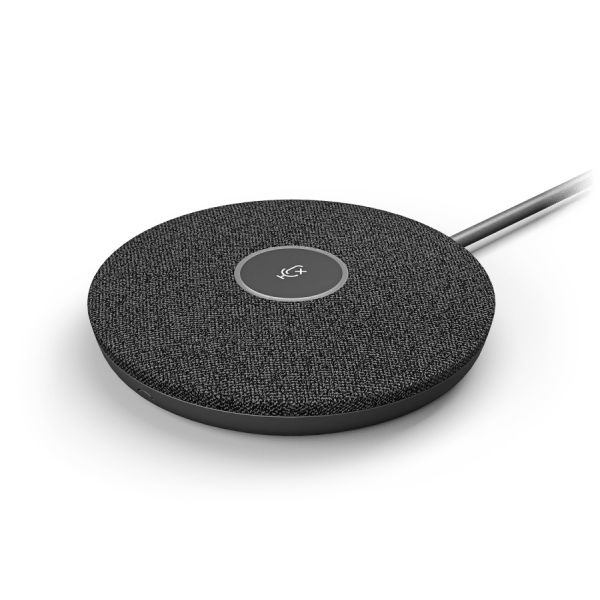

About the Rally Mic Pod

Good Looks - Great Sound

Boasting a sleek, low profile design and premium materials, the Rally Mic Pod provides clear, natural, conversational sound. Individual pods contain multiple beamforming elements to capture speech and not distractions. In larger rooms additional Microphones can be deployed to extend the beamforming mic matrix throughout the room.

Hear Every Voice Clearly

While ordinary Microphones pick up any sound, these Mic Pods hear voices. With RightSound™ technologies to auto level voices, suppress noise, and cancel echo, conversations feel remarkably lively and natural.

Simplified Cabling

Mic Pods can be daisy chained for full coverage in rooms with long tables. For U-shaped tables or single wire cabling through grommets, the Rally Mic Pod Hub accessory provides three connections for optimal positioning and to bring mute control within easy reach.

Elegant Design

Thanks to the union of advanced technology and robust build quality, the Rally Mic Pods deliver both remarkable range and exquisite sensitivity. Thoughtful materials resist fingerprints and stains, whilst a colour coded LED provides clear visual confirmation when muted.

Mount High and Low

Elevate the appearance of meeting rooms with the available Mic Pod Mount. The compact form factor and clever design details anchor Mic Pods to both tables and ceilings, and hides cabling for a clean look.

General Specifications

• Frequency Response - 90Hz – 16kHz
• Sensitivity- >-27dB +/-1dB @ 1Pa
• Microphone Data Rate Output - 48 kHz
• Pickup Range - 15 ft / 4.5m
• Beamforming Elements - Four Mmnidirectional Microphones Forming Eight Acoustic Beams
• Audio Processing - AEC (Acoustic Echo Cancellation), VAD (Voice Activity Detector)
• Noise Suppression - AI Filter
• Mute Control - Touch Sensitive Mute Control with Colour Coded LED Indicator

Interfaces and Cables

• Output - 9.6 ft (2.95m) 12 Pin Captive Cable
• Input - 12 Pin Interface to Daisychain Mic Pods or Connect to Rally Mic Pod Hub

System Requirements

• Rally - Up to 7 Mic Pods (One Rally Mic Pod Included with System)
• Rally Plus - Up to 7 Mic Pods (Two Rally Mic Pods Included with System)
• Rally Bar - Up to 3 Mic Pods (Complements the Built-in Microphone Array)
• Rally Bar Mini - Up to 2 Mic Pods (Complements the Built-in Microphone Array)

Rally Mic Pod Dimensions

• Height -0.83 in (21 mm)
• Width - 4.01 in (102 mm)
• Depth - 4.01 in (102 mm)

Package Contents

• Rally Mic Pod
• Documentation
