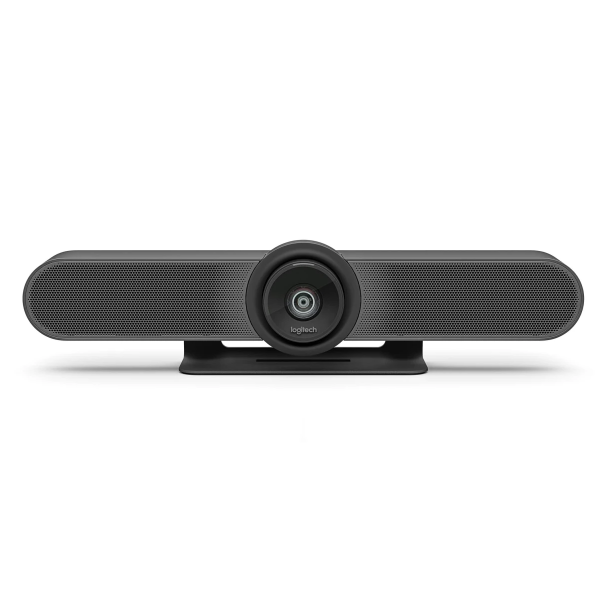

Logitech MeetUp ConferenceCam

An Advanced Conference Camera with a Room Capturing Wide Field of View - Designed for Huddle Rooms and Other Small Conference Rooms

About the Logitech MeetUp

The Logitech® MeetUp is a Premier ConferenceCam that has been designed for Small Conference Rooms and Huddle Rooms. With a room capturing superwide 120° field of view, the Logitech MeetUp ensures everyone seated at the table and in the room is seen and heard. Motorised Pan/Tilt means that the FOV (Field of View) can be expanded even further - Up to 170°, the low distortion Logitech-Engineered Lens, Three Camera Presets and Ultra 4K Optics deliver exceptional Video Quality and enhance face to face collaboration further, ensuring that no one in the room misses anything.

Meetup's integrated audio is optimised for Huddle Room acoustics and delivers a remarkable sound experience. Three horizontally aimed Beamforming Microphones and a custom tuned Speaker helps ensure that meetings sound great. meetup's front of front audio provides an intuitive and consistent listening experience.

An all in one compact design that minimizes cable clutter, the Logitech MeetUp is USB Plug and Play, meaning it works straight out of the box with any video conferencing software application and cloud service that includes the ones already being used.

Full Duplex & Advanced Beamforming - RightSound™ Technologies

Front of room alignment of voice and video is the first step to natural conversations. RightSound™ technologies include a Beamforming Microphone Array that captures speech, whilst auto leveling louder and software voices as well as supressing noise.

Computer Vision - RightSight™

With RightSight™ Computer Vision, Logitech MeetUp automatically adjusts Camera Position and Zoom to find and frame people in the room. Unlike voice tracking systems that jump from person to person, RightSight™ frames everyone in the conversation making a more comfortable and collaborative experience.

RightSense Technologies

Logitech RightSense™ proactive technologies make better video meetings easy and automatic. RightSound optimizes the human voice and enhances conversational clarity, RightSight automatically moves the camera and adjusts the zoom so no one gets left out of the picture, and RightLight helps everyone look their best on camera, regardless of lighting conditions.

RightSense Technologies Information:

Rightlight

• Low Light Compensation
• Video Noise reduction
• Low Light Saturation Optimization

RightSight

• Human Figure Detection
• Auto-Frame Participants at Meeting Start
• Auto-Frame Participants On-Demand
• Auto-Reframe when Participants Enter, Leave, or Change Positions

RightSound

• Machine Learning AI Trained to Distinguish Human Speech from Other Sounds
• AEC (Acoustic Echo Cancellation)
• VAD (Voice Activity Detector)
• Background Noise Suppression
• Auto-Level Loud and Soft Voices
• Peak-Limiting Algorithm Eliminates even Momentary Speaker Clipping to Prevent Distortion
• Anti-Vibration Enclosure

Learn More About Rightsense Technologies - RightLight™, RightSound™ and RightSight™ - Click Here for More Information

Features and Benefits:

Ultra HD 4K Image Sensor

Supports multiple resolutions including 4K (Ultra HD) - (Requires a USB 3.0 Cable, Not Included) 1080P (Full HD) and 720p (HD) tp best support the quality offered bu the application and monitor.

Superwide 120° Field of View

Widest field of view any Logitech Video Conferencing solution allows everyone in the room to be seen, even those closest to the camera or those at the end of the room.

3 Microphones and Custom Tuned Speaker

Three broadside Beamforming, Omni-Directional Microphones with noise and echo cancellation plus a custom tuned speaker that are specifically optimised for small conference rooms. The Microphones are Microsoft® Cortana® certified for precision with voice commands with any Windows® 10 system.

Razor Sharp Optics

Enhance face to face collaboration to the next best thing to physically being in the room, advanced Logitech lens technology delivers remarkable video quality with superb resolution, speed, fluidity, colour balance and detail.

5x HD Zoom

Zero in on close-ups of objects and whiteboard content with outstanding detail and clarity.

Motorized Pan/Tilt

Expand the field of view even further - up to 170° to pan the whiteboard or view other areas of interest.

3 Camera Presets

Select up to three preset locations for the camera view and return to any of the with just the touch of a button via the remote control.

Bluetooth® Wireless Technology

Connect to a Bluetooth® device for great sounding audio calls.

Expansion Microphone Ready

Optional Expansion Microphone Increases conversation radius in larger Huddle Rooms

Click Here for the Logitech Expansion Microphone for MeetUp

All in One Design

Compact all in one design takes up less space as well as minimizing cable clutter.

RF Remote Control

Easily operate camera pan/tilt/zoom functions during meetings.

Certified for Business

Business Grade Certifications mean that video meetings and presentations can be launched with complete confidence - Certified for Skype® for Business, Cisco Jabber™ Compatible. Enhanced integration with BlueJeans, Broadsoft, Lifesize® Cloud, Vidyo and Zoom - See Logitech's Compatibility Guide for latest version.

Plug and Play USB Connectivity

Easily connects to PC, Mac® and Chrome™ devices with no additional software required.

Works with Most Video Conferencing Applications

Compatible with virtually any video conferencing software app, including the ones you already use.

Multiple Mounting Options

Freedom to mount MeetUp wherever it works best - tabletop, wall or monitor for the best possible huddle room experience.

Kensington® Security Slot

MeetUp is provisioned with a Kensington security slot to help secure the equipment with an anti-theft lock.

System Requirements

• Windows 7, Windows 8.1, or Windows 10
• Mac OS X® 10.10 or Higher
• Google Chromebook™ Version 29.0.1547.70, Platform 4319.79.0 with - 2.4 GHz Intel® Core 2 Duo Processor 2 GB RAM or more USB 2.0 port (USB 3.0 Required for 4K Video)

Software Downloads

• Designed to Work with the Built-in Operating System USB Video-Class Driver
• Optional Camera Settings App Provides - Camera Image Settings Pan, Tilt and Zoom

Compatibility and Integrations

• Plug and Play USB Connectivity
• Certified for Skype™ for Business and Ready for Teams
• Zoom™ Certified
• Fuze™ Certified
• Certified for Google Hangouts Meet Hardware
• Microsoft Cortana®
• Cisco Jabber®
• Compatible with BlueJeans, BroadSoft™, GoToMeeting™, Vidyo™, and Other Video Conferencing, Recording, and Broadcasting Applications that Support USB Cameras

Technical Specifications:

Camera

• Custom Logitech Lens with 5x HD Zoom and Motorized Pan (+/- 25°) and Tilt (+/- 15°)
• Field of View - Diagonal - 120°, Horizontal - 113°, Vertical - 80.7°
• Total Room Coverage (Field of View + Pan and Tilt) - 163° Wide x 110° Tall
• 3 Camera Position Presets
• RightSight Auto-Framing (Requires Windows 10 64-bit; macOS Coming Soon)

Video Performance

• 4K Ultra HD Video Calling (up to 3840 x 2160 Pixels @ 30 fps with Customer-Supplied USB 3.0 Cable)
• 1080p Full HD Video Calling (up to 1920 x 1080 Pixels @ 30 fps)
• 720p HD Video Calling (up to 1280 x 720 Pixels @ 30 fps)

Microphone - Integrated Microphone with 3 Beamforming Elements

• Pickup Range - MeetUp - 4 Metres, With Optinal Expansion Microphone - 5 Metres
• Sensitivity: -27dB
• Microphone Frequency Response - 90Hz - 16kHz for Full Voice Reproduction and High Intelligibility without Noise
• Beamforming Performance - Factory-Paired, very low Distortion Broadside Beamforming Algorithm Steers the Microphones Directly at the Talker for the Best Voice Pickup and Noise Reduction
• AEC (Acoustic Echo Cancellation)
• VAD (Voice Activity Detector)
• Microphone Background Noise Suppression
• Microphone Date Rate - 32 kHz Sampling Rate
• Recommended # of Participants - 6
• Recommended # of Participants with Expansion Mic - 8

Speaker

• Volume Adjustable to 95 dB SPL at 1/2 Metre Peak
• Speaker Sensitivity 86.5+/-3dB SPL at 1/2 Metre
• Distortion - 200 Hz -300Hz < 3%, 3000 Hz -10KHz < 1%
• Patent-Pending Anti-Vibration Enclosure Improves Voice Clarity While Limiting Sound Transmission to Adjacent Spaces

Logitech MeetUp Product Weights and Dimensions:

Logitech MeetUp Conference Cam

• Weight - 1.04kg / 2.3lbs, Dimensions - 400mm x 104mm x 85mm - 15.75 x 4.1 x 3.35 Inches

Logitech MeetUp Remote Control

• Weight - 72g / 2.5oz, Dimensions - 83mm x 10mm x 83mm - 3.25 x 0.375 x 3.25 Inches

Package Contents

• Logitech MeetUp Camera and Speakerphone Unit
• Remote Control
• 5m USB 2.0 Cable
• Power Adapter
• Wall Mounting Bracket and Hardware
• User Documentation
