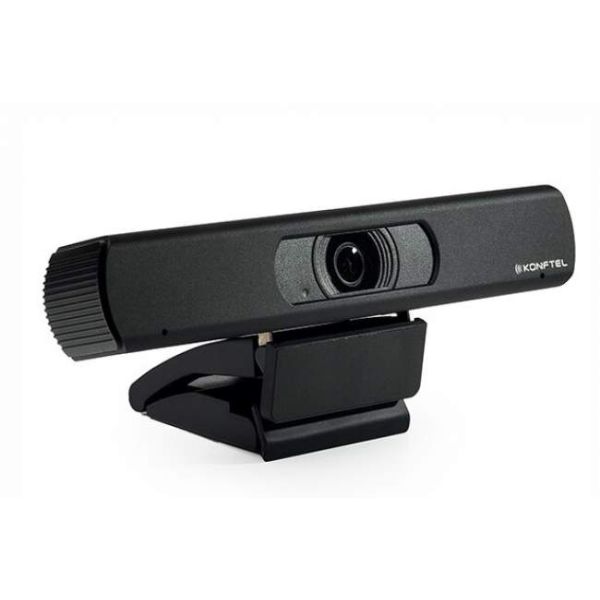

Konftel Cam20 4K USB Video Conferencing Camera

Konftel Cam20

USB Video Conferencing Camera with 4K Ultra HD for Huddle Rooms and Medium Sized Conference Rooms - 105° Field of View

The Konftel Cam20 is the Conference Camera that brings 4K Ultra HD Video to Huddle Rooms and Medium Sized Conference Rooms, coverage for all the participants who are presented naturally in the sharp image. The Konftel Cam20 is the ideal complement to your Speakerphone - The perfect Camera for Huddle Rooms and Medium Sized Conference Rooms.

Impressive Video Quality

Users can be sure that all other participants in the Video Conference will get a clear and balanced image of everyone, even if you opt to transmit in 4K or Regular HD Resolution. With WDR Technology, the Konftel Cam20 automatically adjusts to achieve a good picture in different lighting conditions, even challenging ones such as low direct sunlight and high contrast. It is optimised for situations where the Conference Camera needs to be positioned close to the table, this is normal in many of today's Huddle Rooms, the 105° Field of View means that all the participants can sit in a comfortable position and and still fit into the video image, creating a realistic image with no distortion.

Smooth Meetings

Whatever your preferred app or cloud service, the Konftel Cam20 wil sort out the video image as long as its possible to connect by USB. Once the meeting is up and running, you can control the cameras Digital PTZ (Pan-Tilt-Zoom) via the Remote Control with simple presets. 4K Resolution ensures the zoom is deep and sharp. The Cam20 is compatible with many collaboration platforms such as Skype for Business, GoToMeeting, Blue Jeans, Webex, Google Hangouts, Zoom, Slack and many more.

Monitor the Transmission

If you have an extra screen, you can connect it directly to the Cameras HDMI Port, whilst the Video Image is being transmitted the meeting via USB. This gives users a monitor that shows your side of the transmission in the room at all times.

Quick Installation

The Cam20 is quick and easy to install and mount in the meeting room. Use the flexible clamp to attach it to the screen or screw the base onto a stand in the position that is best for you. It can even go upside down on the bottom of the screen, thanks to the vertical image flip function. Then its Plug and Play via the USB Connection, no extra drivers are needed as long as you have a modern operating system (Windows 8 or above) on your PC.

Features

• 4K Ultra HD
• 105° Field of View
• Easy Installation
• EPTZ, HDMI
• 8x Digital Zoom
• USB 3.0 for PC Based Collaboration
• Simultaneous Output Signal via HDMI and USB
• Two Year Warranty
• Remote Control
• Free Software Updates

Specifications:

General

• Product Name - Konftel Cam20
• Resolution - 4K Ultra HD/30 fps
• Zoom - 8x Digital Zoom
• Focus - Auto
• Field of View - 105°
• Remote Control - Included
• Konftel Cam20 Weight - 340g
• Konftel Cam20 Dimensions - 194mm x 34mm x 42mm (Without Bracket)
• Two Year Warranty

Compatible with:

• Konftel 55W
• Konftel 55
• Konftel Ego

Camera

• Resolution - 4K Ultra HD/30 fps
• 8x Digital Zoom
• Focus - Auto
• No of Presets - 255
• Video Format - YUY2, MJPEG, H.264, NV12
• Camera Control - UVC 1.5/IR Remote

Connectivity

• USB 3.0 Type B

Power Supply

• AC Adapter - Delta ADP-30KR BD, 5V
• Power Consumption - 3W

System Requirements

• Operating System - Windows 7, 8, 10, Mac OS X, Linux

Additional Features

• Software Updates

Package Contents

• Konftel Cam20 Video Conferencing Camera
• 3m USB Cable (Type A / B)
• Remote Contro; with Two AAA Batteries
• Quick Start Guide
• Safety Declaration
