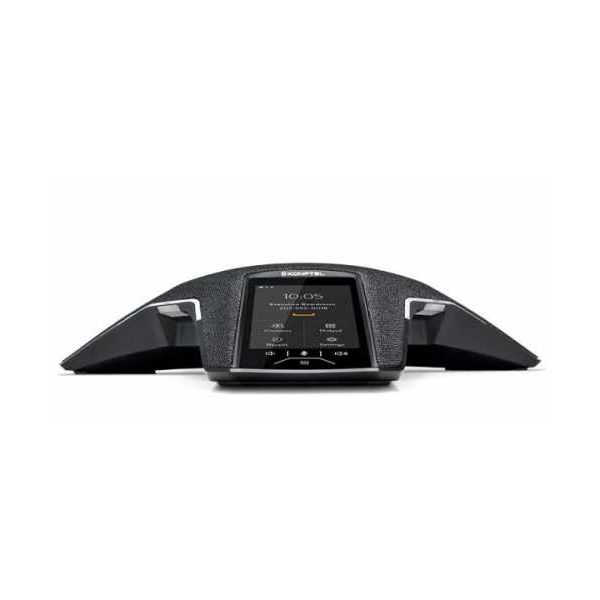

Konftel 800 SIP Conference Phone

Konftel 800 SIP Conference Phone

Hybrid SIP Conference Phone with Intuitive Interface & OmniSound® Audio Technology - Multi-Connectivity - Easy to Use Touch Interface, SIP, USB, Bluetooth® LE, Daisy-Chain

The Konftel 800 is a SIP Conference Phone that offers flexibility for todays collaboration and communication services, and brings an experience of contentment to all kinds of meetings. OmniSound® Audio creates a natural sense of presence, making it seem as all the participants are in the same room. Its Simple to Touch User Interface eliminates any stress from the beginning right through to the end of the conference call. The Konftel 800 can be easily daisy chained with three devices, ideal for any size of meeting rooms, from small meeting rooms to large.

Platform for Hybrid Conferences

The Konftel 800 offers exceptional flexibility as a powerful conference audio device for today's collaboration and communication services, whether in the Cloud, on Premise or in Hybrid Environments. It connects via SIP, USB and Bluetooth® LE. The platform enables BYOD for web and video meetings where you can also invite participants via regular phone calls, its known as Hybrid Conferences. There are several options for easy device management and auto -provisioning, which include Konftel Zero Touch Installation, the Konftel 800 has won a Red Dot Award for its product design!

No Explanation Needed - 2 x UI - Taking Away all the Stress

Easily interact two ways with the Konftel 800, the built in Colour Touch Screen displays the available features and actions with icons, which are complemented separate by volume and mute buttons, the Konftel 800 can also be managed effortlessly via the Konftel Unite mobile app, supporting one touch conferencing and calling and calling personal contacts. Both of these easy to use interfaces take all the stress out of launching and managing conference calls.

Expand the Audio Experience - Konftel Smart Microphone - Maximise the Audio Experience

The new generation OmniSound® provides a best in class audio experience. A single Konftel 800 SIP Conference Phone is perfect for meetings with up to 12 participants, with two additional Konftel Smart Microphone connected it expands to pick up the voices of up to 20 people.

Daisy Chain - Konftel Daisy Chain Cables

When using the cascading feature - Three Konftel 800 Devices can daisy chain to expand both the audio distribution and pick-up range for maximum coverage for more than 20 people - Konftel Daisy Chain Cables are used to connect up to three Konftel 800 Devices via the ports for Audio Expansion.

OmniSound® for Power and Clarity

Konftels refined audio platform OmniSound® works actively, keeping the dialog flowing in the meeting. In the Konftel 800, the result is particularly power and clear sound allowing participants to relax knowing that they can hear well and be heard, creating a natural sound of presence.

Konftel 800 Key Features

• OmniSound®
• Daisy Chain Connection
• Built In Bridge for 5 Way Calls
• Meeting Size - More Than 20 People with Audio Expansion
• Multi-Connectivity
• Support for Konftel Unite
• Easy-To-Use Touch Interface
• SIP, USB, Bluetooth®, LE
• Supports Expansion Microphones

Konftel 800 Call Features

• During Calls - Conference/Split/Hold/Private, Call Waiting, Calling Line Identifier (CLID)
• Multi-Party Calls - Local Five Way Conferencing

Power Supply:

PoE (Power over Ethernet)

• IEEE 802.3af/at (PoE+)
• Konftel PoE Injector Accessory - (Part Number - 900102150 - Not Included)

User Interface:

Display

• 4.3 Inch - 480 x 800 Touch Screen

Buttons

• Two Volume Touch Buttons
• Three Mute Touch Buttons

Status Indication

• LED Indication (Green/Red)
• Off Hook
• Mute
• Hold Status

Mobile App

• Extended UX with Konftel Unite (Free at AppStore and Google Play). Access to Mobile Phone’s Contact Book and Calendar

Menu Languages

• Conference Phone UI in English, French, Spanish, Portuguese, German, Italian, Swedish, Norwegian, Finnish, Dutch and Danish. Input a–z, A–Z, 0–9. Web UI in English. Konftel Unite mobile app UI in English, French, Spanish, Portuguese, Russian, German, Korean, Japanese, Chinese (Traditional and Simplified), Italian, Turkish, Swedish, Norwegian, Finnish, Polish, Czech, Dutch and Danish

Connectivity

• Ethernet - 1 x Ethernet 10/100/1000Mbps, PoE Type 1&2 (IEEE 802.3af and IEEE 802.3at)
• USB - 1 x USB 3.0 Host Type A, 1 x USB 3.0 Device Micro-B
• Bluetooth® - Bluetooth LE and NFC Supported. Bluetooth Audio (HFP/HSP/A2DP/AVRCP) due in 1H 2020
• Expansion - 2 x Audio Expansion Ports (RJ11)

Network

• Connection Protocol - SIP 2.0 (RFC 3261 and Associated RFC
• Signaling - UDP, TCP, TLS and SIPS
• Media Protocol - RTP, SRTP
• Network Addressing - DHCP and Static IP NAT
• NAT Traversal - STUN, ICE and TURN
• Security - 802.1x Authentication with EAP-TLS.
• Quality of Service - DiffServ, VLAN (IEEE 802.1p/Q)
• DTMF Tone Generation - RFC 4733/2833, SIP INFO, In-Band
• Time Server: NTP, SNTP (RFC4330)
• Additional Features - Remote Syslog, PCAP-Log, Unique Host Name, LLDP

Configuration and Provisioning

• Configuration - Via Integrated Web Server, HTTP or HTTPS
• Device Management - Support for Device Management to Easily Configure and Update Multiple Conference Phones
• Konftel ZTI - Konftel Zero Touch Installation, Support for Auto-Provisioning with Certificate Management
• Admin Login - Separate User and Administrator Login for Secure Configuration

Sound

• Speakers - Frequency 80 – 14000 Hz, Volume 95 dB SPL 0.5 m
• Microphones - 3 Digital MEMS Microphones, Pick-up Range 6 m
• Technology - OmniSound®, Full-Duplex Speech, Echo Suppression, Noise Cancellation, Comfort Noise Generation
• Codecs - G.711 (A-law/μ-law), G.722, G.729, Opus, iLBC

Audio Expansion:

Konftel Smart Microphone (Accessory - Not Included - Part Number - 900102144)

• Local Acoustic Echo and Noise Cancellation
• Three Digital MEMS Microphone
• Pick-Up Range 6 m
• Cable Length 3 m

Daisy Chain

• Connect up to Three Konftel 800 Devices in Daisy Chain Mode Via the Audio Expansion Ports
• Konftel Daisy-Chain Cables (Accessory - Not Included - Part Number - 900102152), 5+10 m

Konftel 800 SIP Conference Phone Package Contents

• Konftel 800 SIP Conference Phone
• Ethernet Cable - 6.5m
• USB Cable - 1.5m
• Quick Guide
• Important Notice Document
