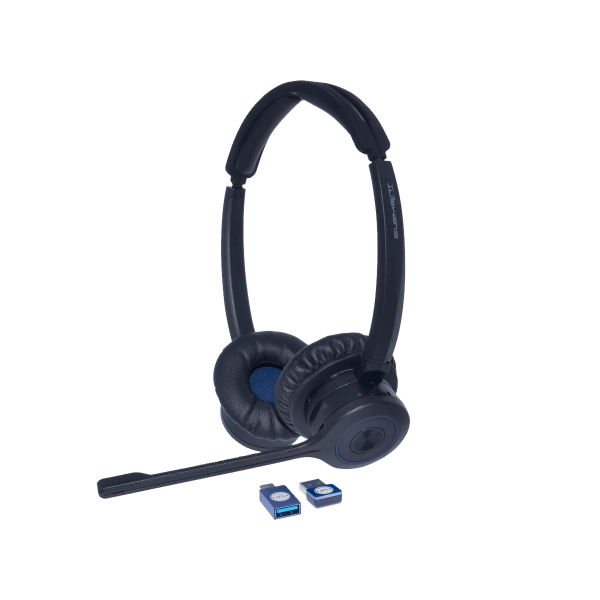

JPL Element-BT500D Binaural Wireless Bluetooth Headset

A Bluetooth Headset With Interchangeable Accessories

About the JPL Element-BT500D

The JPL Element-BT500D is a patented design Bluetooth Headset with an interchangeable Headband from Dual to Single Speaker, this allows the user a choice of wearing styles to suit the way they work.

When Mobile Phones replace ordinary Phones in the Office, a comfortable and ergonomic solution is needed for employees who spend long hours on the phone, the JPL Element-BT500D is that solution, its a comfortable Headset with good sound quality, ideal for all day users.

The Headset includes a USB Bluetooth Dongle, and the Headset and Dongle are already pre-paired and are ready for use.

The BT500D provides comfortable all day use - fitted with 65mm Leatherette Ear Cushions and a Padded Headband, and is also designed Wideband Enabled Speakers with Sound Shield™ Hearing Protection. The fully Flexible Noise Cancelling Microphone allows users to have personal preference on where they want to position the Microphone, as well as being designed with Surround Shield™, which helps to block out any background noise even in the noisiest of environments.

The Headset provides Up to 20 Hours of Call Time and Up to 96 Hours of Standby Time, as well as a Quick Recharge Time of 60 to 90 Minutes. Call Controls on the Headset Include - Call Answer / Call End / Volume Control and a Dedicated Microphone Mute Button.

TAA Compliant:

What is TAA Compliance

TAA Compliance refers to products that adhere to the U.S. Trade Agreements Act (TAA) of 1979. This legislation mandates that products listed on the GSA Schedule must be either manufactured or significantly altered in the U.S. or a specific TAA-approved country by complying with TAA regulations, these products are eligible for purchase by the US federal government including Departments of Defense and Homeland Security.

Features

• USB-A to USB-C Adapter, Micro USB Charging Cable, Carry Case and Bluetooth USB Dongle Included
• Dual or Single Speakers - Interchangeable Headband fron Dual Speaker to Single Speaker - Single Headband is Optional Accessory
• Left or Right Side Microphone Placement
• Bluetooth Version 5.0
• Call Control on Headset - Call Answer / Call End / Volume Control and a Dedicated Microphone Mute Button
• A2DP for Stereo Music
• ‘Put and Stay’ Ratchet Boom Arm with Noise Cancelling Microphone
• Wideband Enabled Speakers with Sound Shield™ Hearing Protection
• Max 30m (100ft) Working Range (Open Sight - 150ft)
• 20 Hours Talk Time (Stand By Time - 96 hours), Quick Recharge Time (60 to 90 Mins)
• Fitted with 65mm Leatherette Ear Cushions for Maximum all day Comfort
• 10 Voice Prompt Language Versions: English, Spanish, French, German, Italian, Dutch, Norwegian, Swedish, Danish, Russian
• Connection - Headset: Bluetooth 5.0, Dongle - Bluetooth 5.0
• Connectivity - Mobile Phone or BT-220 Bluetooth Dongle for Connection to PC
• Certifications - FCC, CE (RED), EAC, RoHS, REACH
• TAA Compliant - This Product Meets the Requirements of the Trade Agreements Act (TAA) Making it Eligible for Purchase by the US Federal Government Agencies

Technical Data

• RF Frequency Range - 2400 ~ 2483.5 MHz
• Max Output Power - 4.0 dBm
• Battery Type - Lithium Polymer 550 mAh
• Power Supply - Li-Polymer DC3.7 V
• Operation Range - 10m Indoor / 30m Outdoor Operation
• Microphone Sensitivity: -51 dBm ±3 dB with Noise Cancelling Microphone
• Frequency Range - 300 Hz ~ 7.0 KHz
• Speaker Impedance - 32 ohm
• Speaker Frequency - 300 Hz ~ 7.0 KHz

About the BT-220 Dongle

The JPL BT-220 is a small button Bluetooth Dongle that integrates with the JPL Element-BT500D Bluetooth Headset.

The BT-220 connects the Headset to the PC.

The Dongle is ready to use and is already paired with the Headset

Softphone interoperability through USB/computer with 3CX, Avaya One-X Agent, Broadsoft UC-one, Cisco Jabber, Counter Path, or Skype for Business with assistance from the JPL Gateway.

JPL Gateway software must be installed and running for remote call control functions to work with supported softphones.

Features

• Works Together with the Element BT500D Bluetooth Headset
• Easy Pairing
• Bluetooth 5.0 Compliant
• For Use with PC/Laptop
• Wireless Range of up to 50 Metres
• USB Telephony Device Compatible
• Requires Connection JPL Gateway Software to Download for Interoperability with 3CX, Avaya One-X Agent, Broadsoft UC-one, Cisco Jabber, Counter Path, or Skype for Business

About the USB-A to USB-C Adapter

The USB-A to USB-C Adapter connects Devices with the standard USB-A Connection to Devices/Equipment with a USB-C Type Port. Its an ideal Accessory for connecting your Headset or Webcam to any USB-C Device.

Features

• Easy to Use
• Super Speed USB 3.0 Data Transfer
• Gives USB-C Charging or Dongle Connectivity
• Plug and Play
• PC and Mac Compatible - Any USB-C Device
• Compatible with USB Flash Drives
• Supports Connection to USB Game Controllers
• USB 3.0 Data Transfer
• USB Type-C 3.0 Male with Positive Latch
• USB Type-A 3.0 Female
• Dimensions - 31mm x 14mm x 7mm

Package Contents

• Binaural Headband with Optional Padded Headband Cushion
• Microphone Boom Arm
• BT-220 Dongle
• USB-A to USB-C Adapter
• Micro USB to USB-A Charging Cable
• Headset Hanging Hook
• Clam Style Carry Case
