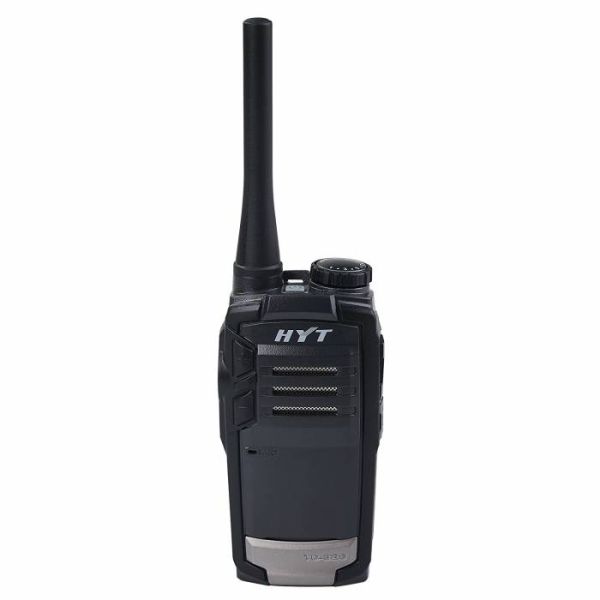

Hytera TC-320 Analogue PMR446 Radio

This Product is End of Life

Please Click Here for Our Range of Licence Free Two Way Radios

The analogue handheld radio TC-320 PMR446 is a licence-free radio that offers many functions for an attractive price. The TC-320 PMR446 excels through its compact and its first-class ergonomic design. TC-320 PMR446 users also benefit from the extraordinary sound quality resistance against mechanical impacts.

Licence-free two-way radio

The TC-320 PMR446 is a PMR446 radio and can therefore be used straight out of the box without any specific proof of necessity or a licence.

Double injection moulding and intelligent design

Due to the combination of the double injection molding process during manufacturing and the anti-slip surface coating , the TC-320 is convenient to grab and operate.

Compact and long-life chassis

The radio is strong enough to withstand a fall from a height of 1.5m. Double injection moulding and anti-slip design Due to the combination of double injection moulding process during manufacture and the anti-slip technology on its surface, the TC-320 PMR446 is convenient and easy to operate.

Charging and programming via mini USB interface

The TC-320 PMR446 can be charged directly via its mini USB interface and programmed with the help of the programming software and a programming cable from Hytera.

Functions (excerpt)

• Audio compander
• Scrambler
• Monitor function
• CTCSS/CDCSS and hum and noise
• VOX
• Channel scan
• Energy saving mode
• Warning tone for low battery charge state
• Busy channel lockout
• Time-out timer (TOT)
• Programmable via PC (mini USB interface)
• Line connected cloning function for transferring settings to another two-way radio
• Programmable squelch level

Technical Data

• Frequency range: 446.00625 MHz to 446.09375 MHz
• Channel capacity: 16
• Channel spacing: 12.5 kHz
• Operating voltage: 3.8 V
• Standard battery: 1700mAh (lithium-ion battery)
• Battery service life (5-5-90 duty cycle): approx. 10 hours
• Frequency stability ± 2.5 ppm
• Operating temperature range: - 20 °C to +55 °C
• Dimensions (H × W × D)(with standard battery, without antenna) 100mm × 48mm × 27mm
• Weight (with standard battery) 135 g

Transmitter

• Transmitting power 0.5 W
• Modulation 8K0F3E
• Interfering signals and harmonics ? - 36dBm
• Hum and noise ? - 34dB
• Nominal audio distortion ? 5 %

Receiver

• Sensitivity - ≤ 0.282 μV
• Adjacent channel selectivity - ≥ 55 dB
• Intermodulation - ≥ 55 dB
• Spurious response rejection - ≥ 60 dB
• Hum and noise - ≥ 34 dB
• Nominal audio power output - 400mW
• Nominal audio distortion - ≤5% (400mW)

In the Box

• Hytera TC-320 Handheld Radio
• Lithium-ion Battery (1700 mAh) BL1715
• Power Adapter with Mini USB Port
• Belt Clip BC16
• Wrist Strap
