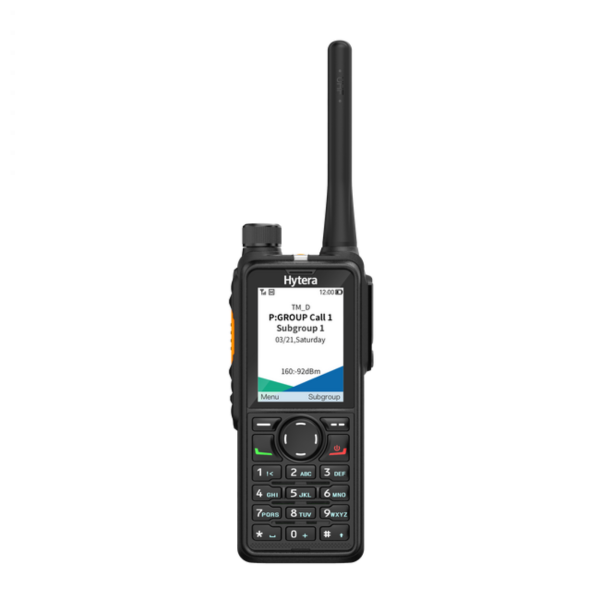

Hytera HP705 - UHF - Digital Two-Way Radio

The Hytera HP705 DMR Two Way Radio presents a thinner, lighter style and comes with functions that refresh standards in Digital Radios. Innovative Noise Cancelling MIL-STD-810 G Standard and an IP68 Rating provides more efficient and more reliable communication with loud and clear audio, powerful battery, remarkable portability and ruggedness for ease of use right the way across multiple environments and industries.

The HP705 has a 0.91 Inch Display, Volume/Channel/Contact Button, Dedicated Emergency Button, Power Button and Two Programmable Buttons, Loud and Clear Speaker, a Water Port for Draining out any Water in the Speaker Cavity, Bluetooth 5.0 Audio and Data, Sensitive Antenna and supports a Micro SD Card (Not Included).

Thinner and Lighter

An optimised mechanical design and a compact lithium polymer battery that fits discreetly into the HP705 design, the Radio is only 29.5mm thick and weights only 290g. The easy to carry Radio allows users to keep their focus on the job in hand.

Longer Battery Life

The latest in proven Lithium Polymer Technology is used in the battery used with the Hytera HP705, the design and technology of the battery reduces power consumption. The battery is lighter and smaller than ever before, yet still delivers up to 25 hours of battery life (5/5/90) providing Radio operation for your entire shift.

Higher Level of Ruggedness

The Hytera HP705 is designed as per the MIL-STD-810 G, it is IP68 Rated (Submersible to a depth of 2 metres for 4 hours in water) and able to withstand a 2 metre drop onto concrete - meaning that the HP705 can withstand the toughest of environments.

Louder and Clearer Audio

The HP705 has louder and clearer audio and is equipped with an optimised powerful loudspeaker that helps users to hear sounds clearer even in noisy environments. Water porting technology is also used to drain out any water that gets into the speaker cavity, ensuring that audio clarity is maintained if the Radio does come into contact with water. Al-based Noise Cancellation Technology can decrease 30db background noise and howling no matter what kind of noisy environment the HP705 user is in.

Enhanced Coverage

The HP705 extends operational range and improves the talking range through high receiver sensitivity and through high transmit power stretching communications into areas with weak signal. This enhanced coverage improves user safety and reduces network costs.

Flexible Wireless Connection

The HP705 supports built in BT 5.0 for wireless connection. The advantages of Bluetooth 5.0 are - lower power consumption, supports multiple devices and more rich data applications such as a Bluetooth Earpiece, Bluetooth Patrol and Positioning.

Emergency Button

The Emergency Alarm Button is bigger to provide easier operation if the user needs to summon assistance. Man Down and Lone Worker features provide enhanced user safety in hazardous environments.

Radio Programming & Licencing

This Radio Requires a License to Operate.

• An Ofcom radio operator's license will need to be Purchased before using the Radio - Please Click Here to Purchase a License
• At PMC, we will program the Radio/s to your new or existing Licensed frequency before we dispatch the radio/s to you.

Features

Operating Modes

• Digital Conventional
• Analogue Conventional
• Digital Trunking

Supplementary

• Profiles
• QR Code
• Roaming
• Covert Mode
• Radio Check
• Remote Monitor
• Alert Call

Voice Service

• Private Call
• Group Call
• All Call
• PSTN/PABX Call
• Broadcast Call
• Emergency Call
• Call Priority

Analogue Mode

• 2 Tone Signaling
• HDC1200

Connection

• BT Audio
• BT Data
• High Efficiency GNSS, GPS, GLONASS
• Wide Range of Accessories
• Open API

Safety

• Emergency
• Man Down
• Lone Worker
• Authentication
• Air Interface Encryption
• End-to-End Encryption
• Scrambler
• Disable/Enable
• Micro SD Card

Applications

• Transportation
• Manufacturing
• Business
• Public Safety
• Security
• Utilities

Specifications

• Frequency Range - UHF - 350-470MHz
• Channel Capacity - 1024
• Zone Capacity - 64
• Channels per Zone - 256
• Channel Spacing - 12.5kHz/20kHz/25kHz
• Operating Voltage - 7.7V
• Battery - Li-Polymer) - 2400mAh
• Battery Life - Up to 25 Hours - 21 Hours (GNSS Enabled)
• Frequency Stability - ±0.5ppm
• Antenna Impedance - 5.0Ω
• Receiver Sensitivity - Analogue - 0. 18µV {12dB SINAD) 0.1 6 µV (Typical) (12d B SINAD), Digital - 0.18µV/BER5%
• RF Power Output - UHF - 1W/4W
• Dust and Water Protection - IEC60529- IP68
• Humidity, Shock and Vibration - Per MIL-STD-810 G Standard
• Bluetooth 5.0 Audio and Data
• AI Based Noise Cancellation
• Water Port for Braining Water in the Speaker Cavity
• Loud and Clear Speaker
• Power Button and Two Programmable Buttons
• Volume/Channel/Contact Button
• 0.91 Inch Colour Display
• Dimensions - 132mm x 55mm x 29.5mm
• Weight - 290g

Package Contents

• 1 x Hytera HP705 Two Way Radio
• 1 x Antenna
• 1 x 2400 mAh Li-Polymer Battery
• 1 x CH10L27 Charging Cradle
• 1 x Power Supply Unit (PSU)
• 1 x Belt Clip
• 1 x Nylon Strap
