  • High Sensitivity Sensor with 160 x 120 Resolution
  • High Quality 320 x 240 Resolution 2.4'' LCD Display
  • Wide Temperature Measurement Range - 30°C - 45°C
  • High Temperature Measurement Accuracy - Up to ±0.5°C
  • Built-in Rechargeable Li-ion Battery
  • Up to 8 Hours Continuous Operation
  • Tripod Mount - For Use With Hikvision Handheld Fever Screening Cameras, Easy Set-Up Where Required, Can be Used with Hikvision Turret and Bullet Thermal Cameras (Adapter Plate Needed - Not Included)

Hikvision Handheld Thermal Fever Screening Camera & DS-2907ZJ Tripod Mount Bundle

PMC Product code
18037
Manufacturer's Product Code
DS-2TP31B-3AUF | DS-2907ZJ
In Stock
Condition
Brand New
£1,648.00 £1,977.60
VisaMastercardAmerican ExpressMaestroPayPalKlarnaAppleGoogle Pay

Free shipping when you spend over £150*Free shipping when you spend over £150

DHL Premium shippingDHL Premium shipping

*UK Mainland Only. Some locations and products not eligible due to weight & size. Courier company not guaranteed. For more information, please contact us.

Hikvision Handheld Thermal Fever Screening Camera & DS-2907ZJ Tripod Mount Bundle

Contact Free - Multi-Person Detection - One Second to Detect Skin Surface Temperature - Up to 8 Hours Continuous Operation - Easy Set-Up Where Required

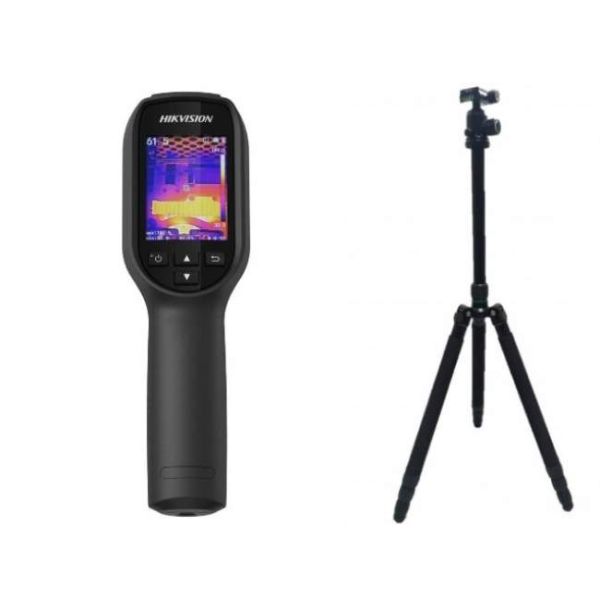

The Hikvision Handheld Thermal Fever Screening Camera & DS-2907ZJ Tripod Mount Bundle consists of the Hikvison DS-2TP31B-3AUF Handheld Thermal Fever Screening Camera and Hikvsion DS-2907ZJ Tripod Mount.

Hikvison Handheld Thermal Fever Screening Camera

The Hikvision Handheld Thermal Camera is specially designed to detect elevated skin surface temperature with high accuracy in real time. Equipped with a 160 x 120 Resolution Thermal Detector, it can be widely used for preliminary temperature screening in Office Buildings, Factories, Airports, Stations and other public places.

The DS-2TP31B-3AUF Handheld Camera records thermal images in a choice of four Colour Palettes - Black Hot, White Hot, Rainbow or Ironbow, and will run for up to 8 hours on a full charge and is then charged via a USB Cable which is included.

The images are displayed on a 2.4 Inch LCD Screen with 320 x 240 resolution.

Key Features

  • 160 x 120 Resolution
  • Thermographic Accuracy up to ±0.5 °C
  • 320 x 240 Resolution 2.4 Inch LCD Display
  • Built in Rechargeable Li-ion Battery
  • Up to 8 Hours Continuous Running Time

Functions:

Thermography

Device Detects the Real Time Temperature, and Displays the Temperature on the Screen.

Storage

The Device is Equipped with a Replaceable Memory Card to Store Recorded Capture Snapshots, and Important Data.

Palette

The Device Supports 4 Palettes - Black Hot, White Hot, Rainbow and Ironbow.

Specifications:

  • Model - DS-2TP31B-3AUF
  • Parameter - Handheld Thermography Camera
  • Image Sensor - Uncooled Focal Plane Arrays
  • Max Resolution - 160 x 120
  • Pixel Pitch - 17μm
  • Response Waveband - 8μm to 14μm
  • NETD - < 40mK (@ 25 °C,F#=1.0)
  • Field of View - 37.2° × 50 °
  • Focal Length - 3.1mm
  • IFOV (mrad) - 5.48 mrad
  • Min Focus Length - ≥ 150 mm
  • Aperture - F1.1
  • Monitor - 320 x 240 Resolution - 2.4 Inch LCD Display
  • Palettes - Black Hot, White Hot, Rainbow and Ironbow
  • Rules - 3 Thermometry Points - Maximum Temperature, Minimum Temperature, Centre Temperature
  • Thermographic Range - 30°C to 45 °C
  • Thermographic Accuracy - ±0.5 °C
  • Battery Type - Rechargeable Lithium Battery
  • Battery Operating Time - 8 Hours Continuous Running
  • Storage - Replaceable Memory Card (Default 8G, Support up to 125G Storage
  • Photo - Thermal Image
  • Language - English
  • Power - 3.7V DC/0.4A
  • Power Consumption - Less than 1.2W
  • Hardware Interface - Micro USB
  • Protection Level - IP54
  • Drop Test Height - 2m (6.56 Feet)
  • Dimensions - 196 mm × 117 mm × 59 mm (7.7 ″ × 4.6 ″ × 2.3 ″)
  • Weight - Approximately - 350g (0.77lb)

Hikvision DS-2907ZJ Tripod Mount for Handheld Fever Screening Cameras

The Hikvision DS-2907ZJ is a Tripod that is used for Mounting Hikvison's Fever Screening Cameras including the Hand Held Cameras.

However the DS-2907ZJ can be used for the mounting of DS-2TD1217B-x/PA Turret, and DS-2TD2617B-x/PA and DS-2TD2636B-x/P Bullet Thermographic Cameras.

DS-2TD1217B-x/PA Turret Cameras are Attached to the Tripod using a DS-2908ZJ Adapter, and DS2TD2617B-x/PA and DS-2TD2636B-x/P Bullet Cameras Require a DS-2909ZJ Adapter.

Hikvision DS-2907ZJ Features

  • Hikvision Hand Held Cameras can be Mounted onto the Tripod
  • Set Up the Camera Where Ever they are Required
  • Hikvision Bullet Thermal Camera can be Mounted on the Tripod (Hikvision DS-2909ZJ Bullet-Tripod Adapter Plate Needed - Not Included)
  • Hikvision Turret Thermal Camera can be Mounted on the Tripod (Hikvision DS-2908ZJ Turret-Tripod Adapter Plate Needed - Not Included)
  • Portable and Easy to Carry

Hikvision DS-2907ZJ Specifications

  • Minimum Height - 19.1 Inches (485mm)
  • Maximum Height - 6.07 Inches (1.85m)
  • Minimum Pipe Diameter - 0.75 Inches (19mm)
  • Maximum Pipe Diameter - 1.1 Inches (28mm)
  • Folded Length - 20.67 Inches (525mm)
  • Unextended Length - 5.12 Inches (1.56m)
  • Item Weight - 5.3lbs (2.4 kg)
  • Maximum Load Capacity - 66.1lbs (30kg)
More Information
Product Details
ColourBlack
Manufacturer's Code:DS-2TP31B-3AUF | DS-2907ZJ
EAN5059403340256
Warranty24 Months
ManufacturerHikvision
Please Note
Please noteAll information is provided for reference only. If you are unsure about any of the features listed, please check the manufacturer's official information.
