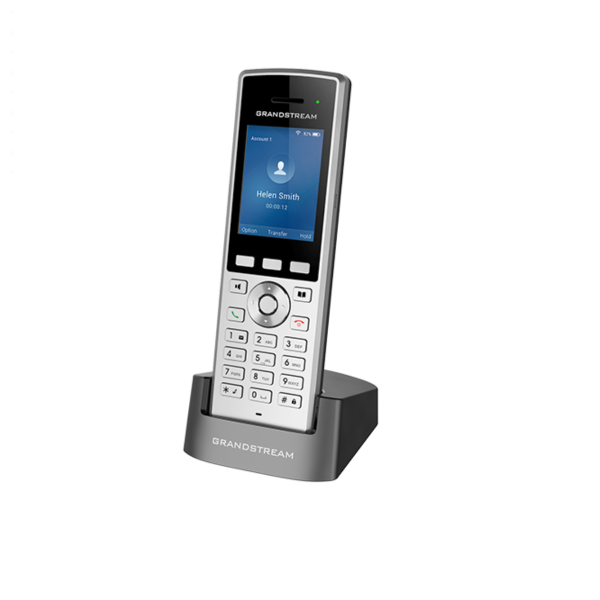

Grandstream WP822 Cordless Wi-Fi IP Phone

About the Grandstream WP822

The Grandstream WP822 is a portable Wi-Fi IP Phone designed to suit a variety of business enterprises and vertical market applications including retail logistics, medical and security.

This business grade Wi-Fi Phone comes equipped with integrated dual band 802.11a/b/g/n/ac Wi-Fi, an advanced antenna design and roaming support. By adding 8 hour talk time, HD voice with dual mics and a configurable push to talk button the WP822 comes equipped with a combination of features, mobility and durability to suit all portable telephony needs.

Features

• Dual Band Wi-Fi with Efficient Antenna Design and Advanced Roaming Support
• 2 SIP Accounts, 2 Lines
• HD Voice & Dual MIC Design with AEC and Noise Shield Technology
• Rechargeable 2000mAh Battery, 8 Hour Talk Time, 200 Hour Standby Time
• Integrated Bluetooth to Connect Headsets
• Configurable Button for Push to Talk
• Micro USB Port and 3.5mm Headset Jack

Protocol/Standards

• SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS (A record, SRV, NAPTR), DHCP, SSH, TFTP, NTP, STUN, SIMPLE, 802.1x, TLS, SRTP, IPv6

Voice Codecs and Capabilities

• Support for G.711µ/a, G.729A/B, G.722 (Wide-band), iLBC, Opus, In-band and Out-of band DTMF (In Audio, RFC2833, SIP INFO), VAD, CNG, AEC, PLC, AJB, AGC, ANS

Wi-Fi

• Integrated Dual Band Wi-Fi 802.11 a/b/g/n/ac (2.4GHz & 5GHz). 802.11r Supported (WPA2/WPA2-Enterprise)

Wi-Fi Encryption

• WEP, WPA/WPA2, WPA Enterprise, WPA3, WPA3-Enterprise

Graphic

• 2.4 Inch (240x320) TFT Colour LCD

Bluetooth

• Integrated Bluetooth

Peripherals

• 3 Soft Keys, Dial, Hang-Up, Speakerphone, Phonebook, Back-lit Keypad, Proximity Sensor, Vibration Motor, Volume Button, Navigation Keys, and Accelerometer Supporting Configurable Gestures

Push to Talk

• Customisable Buttom for Push to Talk

Auxiliary Ports

• 3.5mm Headset Jack, Micro USB Port for Charging, Dual-MIC, Dual-Colour MWI LED

Telephony

• Hold, Transfer, Forward, 3 Way Audio Conference, Call Waiting, Call Log (up to 100 Records), Downloadable Phonebook (XML, up to 500 Items) Off Hook Auto Dial, Auto Answer, Flexible Dial Plan, Personalsed Music Ringtones, Server Redundancy and Fail-over, Push to Talk, LDAP

Security

• User and Administrator Level Passwords, MD5 and MDS-sess based Authentication, 256-bit AES based Secure Configuration File, SRTP, TLS, 802.1x Media Access Control

HD Audio

• HD Audio on Handset and Speakerphone with Support for Wideband Audio, HAC Supported

Power & Green Energy Efficiency

• Universal Power Adapter Included Input - 100-240VAC; Output: +5VDC, 1A (5W) 2000mA Li-ion Battery, 200h Standby Time and 8h Talk Time

QoS

• 802.11e (WMM) and Layer 3 (ToS, DiffServ, MPLS) QoS

Multi-Language

• English, Chinese, German, French, Italian, Portuguese, Russian, Spanish, and more

Upgrade/Provisioning

• Firmware Upgrade via TFTP/HTTP/HTTPS/FTP/FTPS, Mass Provisioning using Encrypted XML Configuration File, Manual Upload

Physical

• Handset Dimensions - 164mm x 52mm x 25.8mm
• Charger Cradle Dimensions - 77.9mm x 81.2mm x 38.2mm
• Handset Weight - 185.9g
• Handset Package Weight - 422.6g

Package Contents

• WP822 Wi-Fi Handset
• Universal Power Supply
• Charging Cradle
• Belt Clip
• 1 x Li-Ion Battery
• Quick Start Guide
