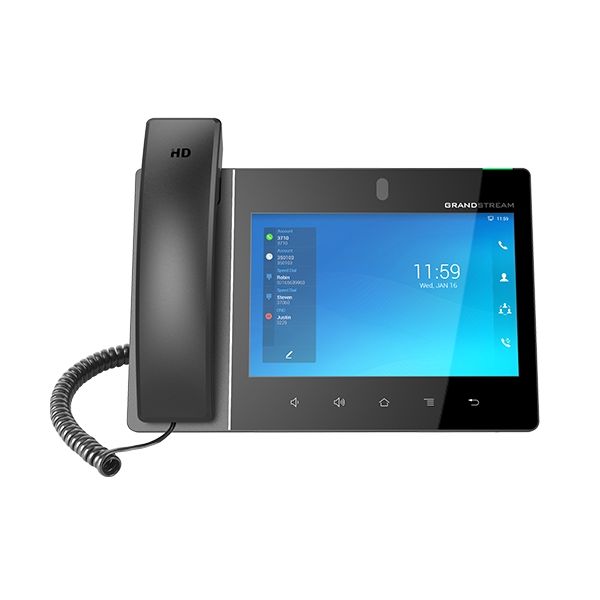

Grandstream GXV3480 Smart IP Video Phone for Android

The GXV3480 IP Video Phone for Android combines a 16 line IP Video Phone with a multi-platform video conferencing solution as well as having the functionality of an Android tablet offering an all in one communication solution.

The GXV3480 features an 8 Inch (1280 x 800) Capacitive Touch Screen IPS LCD, 2 Megapixel Camera, Dual Microphone, Dual Gigabit Ports with PoE/PoE+, HD Audio and HD Video, Integrated Wi-Fi 6 (802.11 a/b/g/n/ac/ac) and Bluetooth 5.0. It runs on Android 11 Operating System and offers instant access to hundreds of thousands of Android apps.

By combining a state of the art IP Video Phone, an advanced Video Conferencing Solution and the functionality of an Android Tablet, the GXV3480 offers businesses throughout the world a powerful desktop communication and productivity solution.

Features

• 16 Lines with up to 16 SIP Accounts
• Built in 2 Megapixel Camera for Video Calling with Privacy Shutter
• Runs on Android 11 Operating System
• Built in Bluetooth 5.0 for Syncing with Mobile Devices and Connecting Bluetooth Headsets
• Dual Switched Auto Sensing 10/100/1000 Mbps Network Ports
• Integrated Dual Band Wi-Fi 6 (2.4GHz and 5GHZ
• Built in PoE/PoE+ for Power and Network Connections
• Dual Mic HD Speakerphone with Noise Shield 2.0, Advanced Echo Cancellation and Excellent Double Talk Performance
• Quad Core 2.0GHz ARMCortex-A55 Processor with 4GB RAM and 16GB eMMC Flash
• 8 Inch (1280 x 800) Capacitive 10 Point Touch Screen IPS LCD
• Peripherals Include HDMI In / Out, USB Type C, 3.5m Headset Jack, EHS (Plantronics / Poly) Headsets
• 12 Way HD Audio Conferencing and 3 Way 1080p 30fps HD Video Capability

Protocols / Standards

• SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS (A record, SRV, NAPTR), DHCP, PPPoE, SSH, TFTP, NTP, STUN, SIMPLE, LLDP-MED, LDAP, TR-069, 802.1x, TLS, SRTP, IPv6, OpenVPN®

Network Interfaces

• Dual Switched 10/ 100/ 1000 Mbps Ports with Integrated PoE/PoE+

Graphic Display

• 8.0 inch 1280 × 800 Capacitive Touch Screen IPS LCD

Camera

• Tiltable 2 Mega Pixel CMOS Camera with Privacy Shutter. 1080p@30fps

Bluetooth

• Integrated Bluetooth 5.0

Wi-Fi

• Dual Band (2.4GHz and 5GHz) with 802.11 a/b/g/n/ac/ax, 2T2R, Wi-Fi Display & AirPlay

Auxiliary Ports

• RJ9 Headset Jack (Allowing EHS with Plantronics / Poly Headsets), 3.5mm Headset Jack, USB 3.0 port, Type-C, HDMI-out, HDMI-in

Feature Keys

• 2 Function Touch Keys VOLUME+/-, 3 Dedicated Android Touch Keys HOME, MENU and BACK

Voice Codecs and Capabilities

• Wideband Opus, Wideband G.722, G.711μ/a, G.729A/B, G.726-32, iLBC, in-band and out-of-band DTMF (In audio, RFC2833, SIP INFO), VAD, CNG, AEC, PLC, AJB, AGC, ANS, Noise Shield 2.0

Video Codecs and Capabilities

• H.264 BP/MP/HP, Video Resolution up to 1080p, Frame Rate up to 30 fps, Bit Rate up to 4Mbps, 3 Way Video Conference (1080p@30fps), BFCP, People Video(up to 1080p@30fps) + Content Video(up to 1080p@15fps), Anti-flickering, and Auto Exposure

Telephony Features

• Hold, Transfer, Forward (Unconditional/No Answer / Busy), Call Park / Pickup, 12 Way Audio Conference (Including theHost), Shared Call Appearance (SCA) / Bridged Line Appearance (BLA), Nirtual MPK, Downloadable Contacts (XML, LDAP, Up to 2000 Items), Call Record (Local and Server), Call Log (Up to 2000 Records), Call Waiting, Auto Answer, XML Customisation of Screen, Flexible Dial Plan, Personalised Music Ringtones and Music on Hold, Server Redundancy & Fail Over

Sample Applications

• Local Apps - Contacts, Call History, File Manager, Programmable Key, Settings, Browser, Clock, Voicemail, Calculator, Recorder, GS Market, etc
• Support Third Party Android Apps
• API/SDK Available for Advanced Custom Application Development

Android

• Runs on Android 11 Operating System

HD Audio

• 2 Omni-Directional Microphones, HD Handset and Speakerphone with Support for Wideband Audio

Power & Green Energy Efficiency

• Universal Power Adapter Included - Input: 100-240VAC 50-60Hz; Output 12VDC 1.5A (18W) Integrated PoE* 802.3af Class 3, PoE+ 802.3at, Class 4

*Must use PSU or PoE+ to Power up the Phone when using USB Devices*

QoS

• Layer 2 QoS (802.1Q, 802.1p) and Layer 3 (ToS, DiffServ, MPLS) QoS

Security

• User and Administrator Level Passwords, Random Default Admin Password, MD5 and MD5-sess based Authentication, 256-bit AES Encrypted Configuration File, TLS, SRTP, HTTPS, 802.1x Media Access Control, Kensington Security Slot (Kensington Lock) Support, Anti-hacking Secure Boot

Multi-Language

• English, German, Italian, French, Spanish, Portuguese, Russian, Croatian, Chinese, Korean, Japanese, and more

Upgrade / Provisioning

• Firmware Upgrade via TFTP / HTTP / HTTPS or local HTTP Upload, Mass Provisioning using TR-069 or AES Encrypted XML Configuration File, GDMS

Base Stand

• Integrated Stand with Multiple Adjustable Angles

Package Contents

• Grandstream GXV3480 IP Video Phone with Integrated Base Stand
• Handset with Curly Cord
• Universal Power Supply
• Network Cable
• Screen Cleaning Cloth
• Quick Installation Guide
