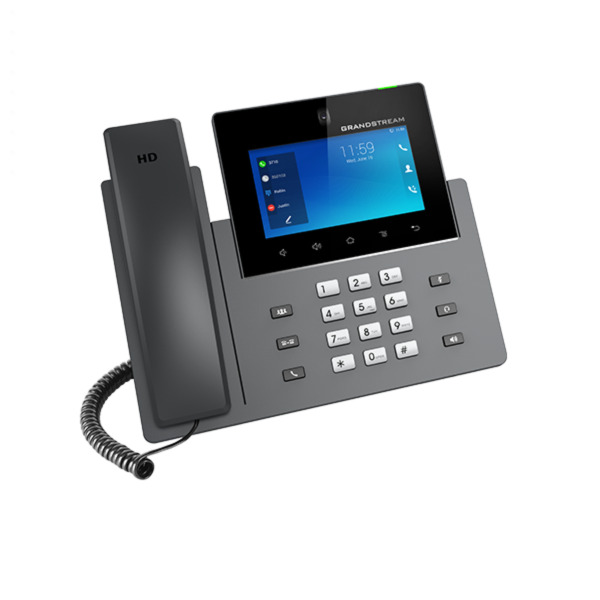

Grandstream GXV3450 - Smart IP Video Phone for Android

About the Grandstream GXV3450

The Grandstream GXV3450 IP Video Phone for Android combines a 16 line IP Video Phone with a multi-platform video collaboration solution and the functionality of an Android Tablet to offer an all in one communication solution.

The GXV3450 IP Video Phone delivers a powerful experience through its 5 inch - 1280 x 720 capacitive touch screen, tiltable camera, dual microphone and support for 720p HD Video. The GXV3450 adds dual gigabit ports with PoE/PoE+, integrated Wi-Fi 5 and Bluetooth 5.0 support. It also runs Android 11 and offers instant access to hundreds of thousands of Android Apps.

By combining a state of the art IP Video Phone, an advanced video collaboration solution and the functionality of an Android Tablet, the GXV3450 offers businesses throughout the world a powerful desktop communication and productivity solution.

Features

• 16 Lines with up to 16 SIP Accounts
• Built in 2 Mega Pixel CMOS Camera for Video Calling with Privacy Shutter
• Runs on Android 11 Operating System
• Built in Bluetooth 5.0 for Syncing with Mobile Devices and Connecting Bluetooth Headsets
• Dual Switched Auto Sensing 10/100/1000 Mbps Network Ports
• Integrated Dual Band Wi-Fi 5 (2.4GHz and 5GHz)
• Built in PoE/PoE+ to Power the Device and give it a Network Connection
• Dual Mic & HD Speakerphone with Noise Shield 2.0 Advanced Echo Cancellation and Excellent Double Talk Performance
• Quad Core 1.8GHz ARM Cortex A55 Processor with 2GB RAM and 16GB eMMC Flash
• 5 Inch (1280 x 720) Capacitive 5 Point Touch Screen IPS LCD
• Peripherals Include USB 3.0, USB 2.0, RJ9 Headset with EHS
• 10 Way Audio Conferencing & 3 Way 720p 30fps HD Video Conferencing Capability

Protocols / Standards

• SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS (A record, SRV, NAPTR), DHCP, PPPoE, SSH, TFTP, NTP, STUN, LLDP-MED, LDAP, TR-069, 802.1x, TLS, SRTP, IPv6, OpenVPN®

Network Interfaces

• Dual Switched 10/100/1000 Mbps Ports with Integrated PoE/PoE+

Graphic Display

• 5.0 Inch 1280 x 720 Capacitive Touch Screen (5 Points) IPS LCD

Camera

• Tiltable 2 Mega Pixel CMOS Camera with Privacy Shutter, 1080P@30fps

Bluetooth

• Integrated Bluetooth 5.0

Wi-Fi

• Dual Band, Dual Stream Wi-Fi 5 (204GHz & 5GHz) with 802.11 a/b/g/n/ac

Auxiliary Ports

• RJ9 Headset Jack (Allowing EHS with Plantronics/Poly Headsets), USB 2.0 Port, USB 3.0 Port

Feature Keys

• 11 Function Keys for CONFERENCE, TRANSFER, SEND/REDIAL, MUTE, EARPHONE, SPEAKERPHONE, VOLUME -/+. 3 Dedicated Android Keys for HOME, RECENT, and BACK

Voice Codecs and Capabilities

• Wide-band Opus, Wide-band G.722, G.711μ/a, G. 729A/B, G.726-32, iLBC, In-band and Out-of band DTMF (In Audio, RFC2833, SIP INFO), VAD, CNG, AEC, PLC, AJB, AGC, ANS, Noise Shield 2.0

Video Codecs and Capabilities

• H.264 BP/MP/HP, Video Resolution up to 720p, Frame Rate up to 30 fps, Bit Rate up to 2Mbps, 3 Way Video Conference (720p@30fps), Anti-Flickering, and Auto Exposure

Telephony Features

• Hold, Transfer, Forward (Unconditional/No Answer/Busy), Call Park/Pickup, 10 Way Audio Conference(Including the Host), Shared Call Appearance (SCA) / Bridged-Line-Appearance (BLA), Virtual Programmable Key, Downloadable Contacts (XML, LDAP, up to 1000 Items), Call Record(Local and Server), Call Log (up to 1000 Records), Call Waiting, Auto Answer, XML Customisation of Screen, Flexible Dial Plan, Personalised Music Ringtones and Music on Hold, Server Redundancy & Fail-Over

Sample Applications

• Local Apps - Contacts, Call History, File Manager, Programmable Key, Settings, Browser, Clock, Voicemail, Calculator, Recorder, GS Market, etc
• Supports Third Party Android Apps
• API/SDK Available for Advanced Custom Application Development

Android

• Runs Android 11 Operating System

Applications Deployment

• Supports Android 11 Compliant Applications to be Developed, Downloaded and run on the Device with Provisioning Control

HD Audio

• 2 Omni-Directional Microphones, HD Handset and HD Speakerphone with Support for Wideband Audio

Power & Green Energy Efficiency

• Universal Power Adapter Included - Input - 100-240VAC 50-60Hz; Output 12VDC 1.5A (18W) Integrated PoE* 802.3af Class 3, PoE+ 802.3at, Class 4 *Must use PSU or PoE+ to Power up the Phone when using USB Devices and/or 2 or More GBX20 Extension Modules

Expansion Module

• Can Power up to 4 Grandstream GBX20 Extension Modules that Feature a 272 x 480 Colour LCD, 20 Quick Dial/BLF Keys with Dual Colour LED, 2 Navigation Keys, and less 1.2W Power Consumption per Unit

QoS

• Layer 2 QoS (802.1Q, 802.1p) and Layer 3 (ToS, DiffServ, MPLS) QoS

Security

• User and Administrator Level Passwords, Random Default Admin Password, MD5 and MD5-sess based Authentication, 256bit-AES Encrypted Configuration File, TLS, SRTP, HTTPS, 802.1x Media Access Control, Anti-Hacking Secure Boot

Multi-Language

• English, German, Italian, French, Spanish, Portuguese, Russian, Croatian, Chinese, Korean, Japanese, and more

Upgrade/Provisioning

• Firmware Upgrade via TFTP / HTTP / HTTPS or Local HTTP Upload, Mass Provisioning using TR-069 or AES Encrypted XML Configuration File, GDMS

Base Stand

• Desktop Stand with Three Adjustable Levels

Package Contents

• Grandstream GXV3450 IP Video Phone
• Handset with Handset Cord
• Base Stand
• Universal Power Supply
• Network Cable
• Screen Cleaning Cloth
• Quick Installation Guide
