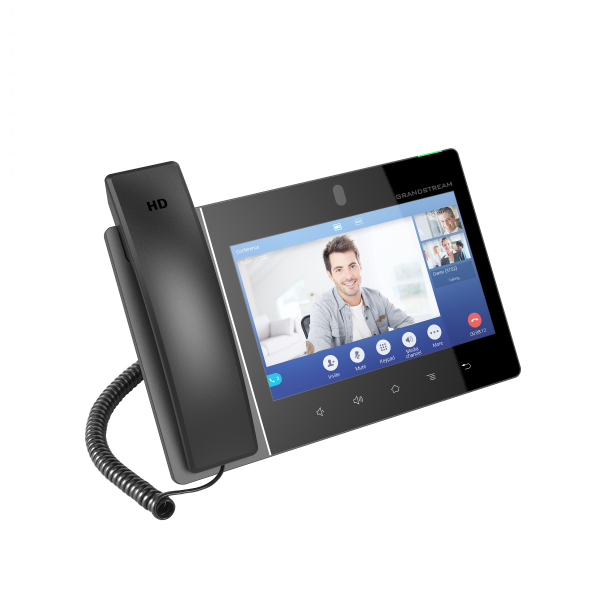

Grandstream GXV3380 Smart Video IP Phone

A High End Smart Video IP Phone for Android

About the Grandstream GXV3380

Experience the future of business communication with the GXV3380 IP Video Phone. This powerful device seamlessly combines a 16 line IP Video Phone, a Multi-Platform Video Collaboration Solution, and the versatility of an Android Tablet in a single, integrated unit.

Enjoy crystal clear video calls with a 2 Megapixel Camera and support for 1080p HD resolution. Navigate effortlessly with an 8 Inch - 1280x800 Capacitive Touch Screen.

Connect to multiple devices and networks with dual Gigabit ports (PoE/PoE+), integrated Wi-Fi (802.11ac), and Bluetooth support. Share content easily with HDMI in/out and collaborate with teams worldwide.

Access thousands of Android Apps and customise your experience with the Android 7.x Operating System.

Features

• 16 Lines with up to 16 SIP Accounts
• Built in 2 Megapixel Camera for Video Calling with Privacy Shutter
• Runs on Android 7.x Operating System
• Built in Bluetooth for Syncing with Mobile Devices and Connecting Bluetooth Headsets
• Dual Switched Auto-Sensing 10/100/1000 Mbps Network Ports
• Integrated Dual Band Wi-Fi (2.4GHz & 5GHz)
• Built in PoE/PoE+ for Power and Network Connections
• Dual Mic HD Speakerphone with Advanced Echo Cancellation & Excellent Double Talk Performance for any Scenario
• 64 bit Quad Core Processor, 2GB RAM and 16GB Flash
• 8 Inch - 1280 x 800 Capacitive 10 Point Touch Screen IPS LCD
• Peripherals Include HDMI In / Out, USB, Micro SD, Headset Jack, EHS (Plantronics Headsets)
• 7 Way HD Audio Conferencing & 3 Way 1080p 30fps HD Video Capability

Technical Specifications:

Protocols / Standards

• SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS (A record, SRV, NAPTR), DHCP, PPPoE, SSH, TFTP, NTP, STUN, SIMPLE, LLDP-MED, LDAP, TR-069, 802.1x, TLS, SRTP, IPv6, OpenVPN®

Network Interfaces

• Dual Switched 10/100/1000 Mbps with Integrated PoE/PoE+

Graphic Display

• 8 Inch - 1280 x 800 Capacitive Touch Screen (10 Points) IPS LCD

Camera

• Tiltable 2 Megapixel CMOS Camera with Privacy Shutter, 1080p 30fps

Bluetooth

• Integrated Bluetooth 4.2 + EDR

Wi-Fi

• Dual Band (2.4GHz & 5GHz) with 802.11ac a/b/g/n/ac and WMM

Auxiliary Ports

• RJ9 Headset Jack (Allowing EHS with Plantronics Headsets), 3.5mm Stereo Headset with Microphone, USB 2.0 Port, Micro SD, HDMI-Out (1.4 up to 1080p60fps), HDMI in (1.4 up to 1080p@60fps)

Feature Keys

• 2 Function Touch Keys Volume +/-, 3 Dedicated Android Touch Keys, Home, Menu and Back

Voice Codecs and Capabilities

• Wide-Band Opus, Wide-Band G.722, G.711µ/a, G. 729A/B, G.726-32, iLBC, In-Band and Out-of-Band DTMF (In Audio, RFC2833, SIP INFO), VAD, CNG, AEC, PLC, AJB, AGC, ANS

Video Codecs and Capabilities

• H.264 BP/MP/HP, Video Resolution up to 1080p, Frame Rate up to 30 fps, Bitrate up to 4Mbps, 3-Way Video Conference (1080p@30fps), BFCP, People Video (up to 1080p@30fps) + Content Video (up to 1080p@15fps), Anti-Flickering, Auto Focus and Auto Exposure, Camera Block

Telephony Features

• Hold, Transfer, Forward (Unconditional/No Answer/Busy), Call Park/Pickup
• 7-Way Audio Conference (Including the Host), Shared Call Appearance (SCA)
• Bridged Line Appearance (BLA), Virtual MPK, Downloadable Contacts (XML, LDAP, up to 2000 Items)
• Call Record (Local and Server), Call Log (Up to 2000 Records), Call Waiting, Auto Answer, XML Customisation of Screen
• Click to Dial, Flexible Dial Plan, Hot Desking, Personalised Music Ringtones and Music on Hold, Server Redundancy and Fail Over

Sample Applications

• Local Apps - Contacts, Call History, File Manager, Programmable Key, Settings, Browser, Email, Voicemail, Calculator, Clock, Recorder, GS Market, etc
• Supports Third-Party Android Apps Including Skype, Google Hangouts, etc. API/SDK Available for Advanced Custom Application Development

Android

• Runs Android 7.x

Applications Deployment

• Supports Android 7.x Compliant Applications to be Developed, Downloaded and Embedded on the Device with Provisioning Control

HD Audio

• 2 Omni-Directional Microphones, HD Handset and Speakerphone with Support for Wideband Audio

Power & Green Efficiency

• Universal Power Adapter Included - Input: 100-240VAC 50-60Hz; Output 12VDC 1.5A (18W) Integrated PoE* 802.3af Class 3, PoE+ 802.3at, Class 4

_{*USB Enabled only when Power Supply or PoE+ is Used}

QoS

• Layer 2 QoS (802.1Q, 802.1p) and Layer 3 (ToS, DiffServ, MPLS) QoS

Security

• User and Administrator Level Passwords, MD5 and MD5-sess Based Authentication, 256-bit AES Encrypted Configuration File, TLS, SRTP, HTTPS, 802.1x Media Access Control, Kensington Security Slot (Kensington Lock) Support

Multi-Language

• English, German, Italian, French, Spanish, Portuguese, Russian, Croatian, Chinese, Korean and Japanese

Upgrade/Provisioning

• Firmware Upgrade via TFTP / HTTP / HTTPS or Local HTTP Upload, Mass Provisioning using TR-069 or AES Encrypted XML Configuration File

Base Stand

• Integrated Stand with Multiple Adjustable Angles

Package Contents

• Grandstream GXV3380 Smart Video IP Phone
• Handset with Cord
• Base Stand

_{*Please Note that Refurbished Package Contents May Vary from the Above*}
