Grandstream GWN7664LR - Outdoor Wi-Fi 6 - Access Point

A High End Outdoor 802.11ax Wi-Fi 6 Access Point Offering Dual Band 4×4:4 MU-MIMO Technology - Ideal for Medium to Large Businesses and Enterprises Who Need to Provide Long Range Coverage in Both Indoor and Outdoor Spaces - Features Include Dual Gigabit Ethernet Ports, Up to 300 Metre Range, Detachable / Changeable Antennas and PoE

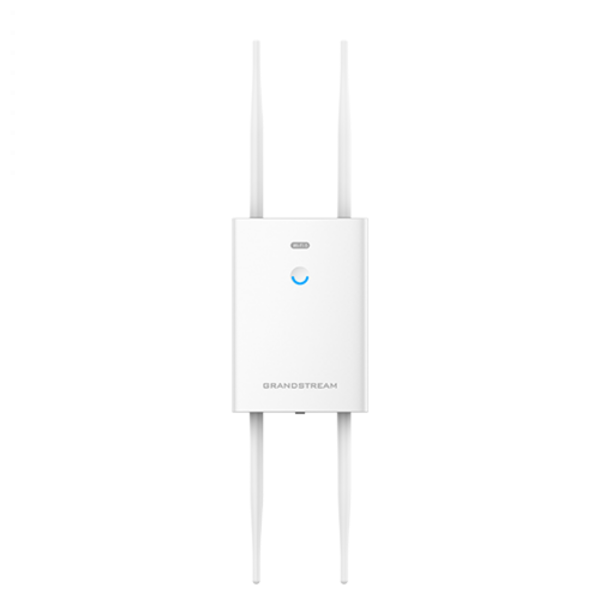

Grandstream GWN7664LR

The Grandstream GWN7664LR is an outdoor 802.11ax 4×4:4 Wi-Fi 6 access point for medium-to-large businesses and enterprises who need to provide long-range coverage in both indoor and outdoor spaces. It offers weatherproof casing and heat resistant technology, dual band 4×4:4 MU-MIMO with DL / UL OFDMA Technology.

Designed with a sophisticated changeable Antenna for different scenarios, whilst supporting 750+ concurrent Wi-Fi Client devices.

The GWN7664LR includes a built in controller that is embedded within the product’s web user interface to ensure easy installation and easy management.

Supported by GWN Cloud, and GWN Manager - Grandstream's free cloud Wi-Fi management platform, the GWN7664LR makes managing your network or several networks across multiple locations eaiser than ever before.

It is the ideal Wi-Fi Access Point for voiceover-Wi-Fi deployments and offers a seamless connection with Grandstream’s Wi-Fi capable Voice and Video IP Phones. With support for advanced QoS, low latency real-time applications, mesh networks, captive portals, 750+ concurrent clients and Dual Gigabit network ports with PoE/PoE+, the Grandstream GWN7664LR is an ideal Wi-Fi access point for enterprises, multiple floor offices, warehouses, hospitals and schools.

Features

• 3.55 Gbps Aggregate Wireless Throughput, 3.5Gbps Aggregate Wired Throughout
• Dual Band 4x4:4 MU-MIMO with DL/UL OFDMA Technology
• Self Power Adaptation upon Auto Detection of PoE or PoE+
• Supports 750+ Concurrent Wi-Fi Client Devices
• Up to 300 Metre Coverage Range
• Advanced QoS to Ensure Real Time Performance of Low Latency Applications
• Anti Hacking Secure Boot and Critical Data/Control Lockdown via Digital Signatures, Unique Security/Random Default Password per Device
• Flexibility of 4 Detachable / Changeable Antennas for Different Application Scenarios
• Embedded Controller can Manage up to 50 Local GWN Series AP's, GWN Cloud Offers Unlimited AP Management & GWN Manager Offers On-Premise Software AP Management

Technical Specifications

• Wi-Fi Standards - IEEE 802.11 a/b/g/n/ac/ax
• Antennas - 4 Dual Band Extermal Antennas - 2.4GHz, Gain 3dBi 5 GHz, Gain 3.5dBi
• Wi-Fi Data Rates - 5G - IEEE 802.11ax: 8 Mbps to 2402 Mbps. IEEE 802.11ac: 6.5 Mbps to 1733 Mbps. IEEE 802.11n: 6.5Mbps to 600Mbps. IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps, 2.4G - IEEE 802.11ax: 8 Mbps to 1147 Mbps, IEEE 802.11n: 6.5Mbps to 600Mbps, IEEE 802.11b: 1, 2, 5.5, 11 Mbps, IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps - Actual Throughput may vary Depending on many Factors Including Environmental Conditions, Distance between Devices, Radio Interference in the Operating Environment and Mix of Devices in the Network
• Frequency Bands - 2.4GHz Radio - 2412- 2484 MHz, 5GHz Radio - 5180 - 5825 MHz
• Channel Bandwidth - 2.4G - 20 and 40 MHz (x4), 5G - 20,40 and 80 MHz (x4)
• Wi-Fi and System Security - WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise, Anti-Hacking Secure Boot and Critical Data/Control Lockdown via Digital Signatures, Unique Security Certificate and Random Default Password per Device
• MIMO - 4×4:4 - 2.4G, 4×4:4 - 5G
• Coverage Range - Up to 300 Metres
• Maximum TX Power 2.4G: 26 dBm, 5G: 25 dBm - *Maximum Power Varies by Country, Frequency Band and MCS Rate
• Receiver Sensitivity - 2.4G - 802.11b: -99dBm@1Mbps, -91dBm@11Mbps, 802.11g: -94dBm @6Mbps, -78dBm@54Mbps, 802.11n 20MHz: -75dBm @MCS7; 802.11n 40MHz:-71dBm @MCS7, 802.11ax 20MHz: -64dBm @ MCS11, 802.11ax 40MHz: -63dBm @MCS11, 5G - 802.11a: -95dBm @6Mbps, -77dBm @54Mbps, 802.11n 20MHz: -74dBm @MCS, 802.11n 40MHz:-71dBm @MCS7, 802.11ac 20MHz: -70dBm@MCS8, 802.11ac: HT40:- 66dBm @MCS9, 802.11ac 80MHz: -62dBm @MCS9, 802.11ax 20MHz: -64dBm @ MCS11, 802.11ax 40MHz: -62dBm @MCS11, 802.11ax 80MHz: -59dBm @MCS11
• SSID's - 32 SSIDs Total, 16 per Radio (2.4Ghz and 5Ghz)
• Concurrent Clients - 750+
• Network Interfaces - 1 x 1G Port and 1 x 2.5G Port, Supports 2.5Gbps Aggregate Wire Through0ut
• Auxiliary Ports - 1x Reset Pinhole
• Mounting - Wall Mount or Pole Mount, Kits Included
• LED's - 1 Tri Colour LED for Device Tracking and Status Indication
• Network Protocols - IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM
• QoS - 802.11e/WMM, VLAN, TOS
• Network Management - Embedded Controller can Manage up to 50 Local GWN Aps GWN, Cloud Offers a free Cloud Management Platform for Unlimited GWN APs GWN Manager Offers Premise-Based Software Controller for up to 3,000 GWN APs
• Power Green and Efficiency - PoE - 802.3 af, 802.3at, Max Consumption - 18W
• Compliance - FCC, CE, RCM, IC
• GWN7664LR DImensions -  562.3mm x 140mm x 44.9mm

Package Contents

• Grandstream GWN7664LR 802.11ax Wireless Access Point
• Mounting Kits
• Quick Installation Guide
