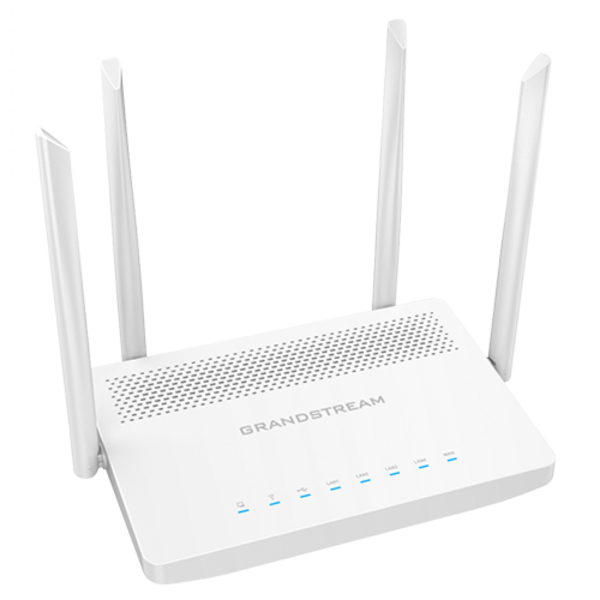

Grandstream GWN7052F Dual-Band Wi-Fi Router

A Secure Dual Band Router Powered by 802.11ac Wi-Fi Technology - Ideal for Small Offices, Home Offices and Remote Workers

About the Grandstream GWN7052F

The GWN7052F is a robust, secure Dual Band WiFi Router designed for the modern small office, home office, and remote work environment. Leveraging 802.11ac WiFi and 2x2 MU-MIMO, it offers both wireless mesh networking capabilities and wired access point connectivity.

Driven by a powerful 880MHz Dual Core Processor, the GWN7052F delivers fast WiFi speeds of up to 1.266 Gbps, supporting up to 100 concurrent wireless devices. This makes it perfect for bandwidth-intensive applications like 4K Ultra HD streaming, video conferencing, online gaming, and more. Built-in VPN support allows remote workers to securely access corporate networks from anywhere. Security is paramount, with enterprise-grade features including unique security certificates and randomized default passwords. Triple-play functionality allows for the prioritisation of different services including Internet, IPTV, and VoIP through VLANs.

Simplified setup and management are ensured through an embedded controller accessible via the device's web interface, with future support for GWN.Cloud, Grandstream's free cloud-based WiFi management platform. Combining high-speed WiFi, mesh networking, wired AP connectivity, VPN capabilities, and advanced QoS, the GWN7052F is the ideal networking solution for expanding home and small business networks.

Features

• 1.27Gbps Aggregate Wireless Throughput with 5x Auto Sensing Gigabit Ports
• Dual Band 2x2:2 MU-MIMO
• Built in VPN support Allows Easy Access to Corporate Networks for Remote Employees
• Supports up to 100 Wireless Client Devices
• Secure Cloud Provisioning via GWN.Cloud
• Supports Mesh Networking with Grandstream Access Points - Providing Easy Network Expansion
• Powerful Security Features that Include - Guest Network, Network Blacklist, Anti-Hacking Secure Boot and Critical Data / Control Lockdown via Digital Signatures and more
• Rich Firewall Features Including Anti-DoS, Traffic Rules, NAT and ALG
• 256MB RAM, 60K NAT Sessions
• 1x Gigabit SFP WAN Port, 4x Gigabit Ethernet Ports (WAN/ LAN Configurable)

Specifications:

• Memory and NAT Sessions - 256MB RAM, 60K NAT Sessions
• NAT Routing & IPSec VPN Performance - 1Gbps NAT Routing and 300Mbps IPSec VPN Performance
• Wi-Fi Standards - IEEE 802.11 a/b/g/n/ac
• Antennas - 4 Individual External Antennas, 2 Per Band, 2.4GHz, Gain 5.0dBi, 5 GHz, Gain 5.0dBi
• Wi-Fi Data Rates - 5G - IEEE 802.11ac - 6.5 Mbps to 867 Mbps, IEEE 802.11n - 6.5 Mbps to 300 Mbps, IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps, 2.4G - IEEE 802.11n - 6.5 Mbps to 300 Mbps, IEEE 802.11b - 1, 2, 5.5, 11 Mbps, IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
• Frequency Bands - 2.4GHz Radio - 2400 – 2483.5MHz, 5GHz Radio - 5150 - 5850MHz
• Channel Bandwidth - 2.4G - 20 and 40 MHz, 5G - 20, 40 and 80 MHz
• Wi-Fi and System Security - WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES); WPA3, Anti-Hacking Secure Boot and Critical Data / Control Lockdown via Digital Signatures, Unique Security Certificate and Random Default Password per Device
• MIMO - 2×2:2 2.4GHz (MIMO), 2×2:2 5GHz (MU-MIMO)
• Maximum Power - 2.4G - 23dBm, 5G - 24dBm
• Receiver Sensitivity - 2.4G - 802.11b: -96dBm@1Mbps, -88dBm@11Mbps, 802.11g: -93dBm @6Mbps, -75dBm@54Mbps, 802.11n 20MHz: -73dBm @MCS7; 802.11n 40MHz: -70dBm @MCS7
• SSID's - 16 SSID's Total - 8 Per Radio (2.4GHz and 5GHz)
• Concurrent Clients - Up to 100
• Network Interfaces - 1x Gigabit SFP WAN Port, 4x Gigabit Ethernet Ports (WAN/LAN Configurable)
• Auxiliary Ports - 1 x USB 2.0 Port, 1 x Reset Pinhole
• Mounting - Desktop or Wall Mount
• LED's - 1 Tri-Colout LED and 7 Single Colour LED's for Device Tracking and Status Indication
• Network Protocols - IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM
• QoS - 802.11e/WMM, VLAN, TOS
• Firewall - DDNS, Port Forwarding, DMZ, UPnP, Anti-DoS, Traffic Rules, NAT, ALG
• Max Concurrent VPN Tunnels - Up to 50 Tunnels
• Network Management - Embedded Controller can Manage Itself and up to 50 GWN APs, GWN.Cloud offers a Free Cloud Management Platform
  for Unlimited GWN7052F Routers and GWN APs, SSH for CLI, TR-069, SNMP v1/v2c/v3, Telnet (pending)
• Dimensions - GWN7052F Dimensions - 205mm x 130mm x 35mm (L x W x H) - Without Antennas,235.5mm x 145mm x 192mm (L x W x H) -With Antennas
• Package Weight - 740g

Package Contents

• Grandstream GWN7052F Router
• Universal Power Supply
• Network Cable
• Quick Installation Guide
