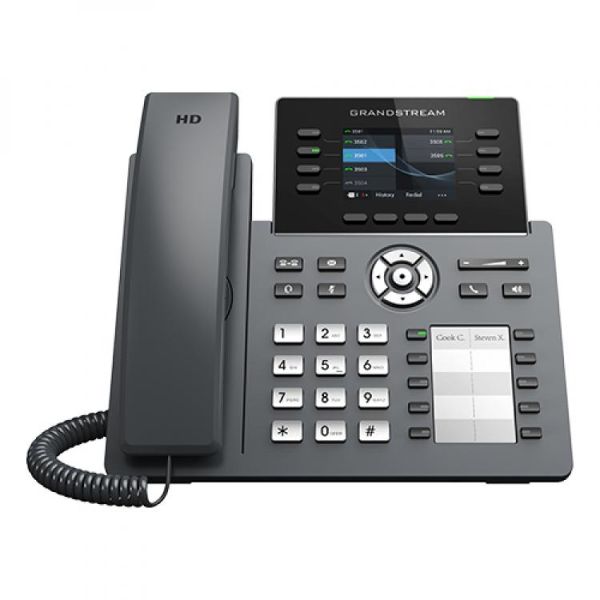

Grandstream GRP2634 - 8 Line Professional Carrier Grade IP Phone

Part of the GRP Series of Carrier Grade IP Phones, the GRP2634 is a Professional 8 Line model designed with zero-touch provisioning for mass deployment and easy management. It features a sleek design and a suite of next generation features including - 5 way voice conferencing to maximise productivity, Integrated PoE & Wi-Fi, Full HD Audio on both the Speaker and Handset to allow users to communicate with the utmost clarity, EHS Support for Plantronics Headsets and USB to support Grandstream’s GUV Series Headsets.

The GRP Series includes Carrier Grade security features to provide enterprise level security - including Secure Boot, Dual Firmware Images and Encrypted Data Storage. For cloud provisioning and centralized management, the GRP2634 is supported by Grandstream’s Device Management System (GDMS), which provides a centralised interface to configure, provision, manage and monitor deployments of Grandstream endpoints. With 32 Virtual Multi-Purpose Keys (VPK) and 10 Multi-Purpose Keys (MPK), the GRP2634 is the perfect choice for busy professionals and receptionists who need to manage high call volumes, with advanced functionality. Designed for easy deployment by enterprises, service providers and other high volume markets, the GRP2634 offers an easy to use and easy to deploy voice endpoint.

Features

• 8 Lines - 4 SIP Accounts
• Supported by GDMS which Provides a Centralised Interface to Configure, Provision, Manage and Monitor Grandstream Devices
• RJ9 Headset Jack Allowing EHS with Plantronics Headsets and Integrated USB Headset Support
• Full Duplex Speakerphone with HD Audio to Maximise Audio Quality and Clarity
• Dual Switched Autosensing 10/100/1000 Mbps Gigabit Ethernet Ports with Integrated PoE
• Supports 5 Way Audio Conferencing for Easy Conference Calls
• Enterprise Level Protection Including Secure Boot, Dual Firmware Images, and Encrypted Data Storage
• Swappable Faceplate to Allow for Easy Logo Customisation
• Equipped with Noise Shield Technology to Minimise Background Noise
• Integrated Dual Band Wi-Fi 802.11 a/b/g/n/ac (2.4Ghz & 5Ghz)

Protocols / Standards

• SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS(A record, SRV, NAPTR), DHCP, PPPoE, TELNET, TFTP, NTP, STUN, SIMPLE, LLDP, LDAP, TR-069, 802.1x, TLS, SRTP, IPV6

Network Interfaces

• Dual Switched Auto Sensing 10/100/1000 Mbps Gigabit Ethernet Ports with Integrated PoE

Graphic Display

• 2.8 Inch (210 x 240) TFT Colour LCD

Wi-Fi

• Integrated Dual Band Wi-Fi 802.11 a/b/g/n/ac (2.4Ghz & 5Ghz)

Bluetooth

• Integrated Bluetooth

Feature Keys

• 8 Line Keys with up to 4 SIP Accounts
• 10 MPK Extension Keys with Paper Slot
• 4 XML Programmable Context Sensitive Softkeys
• 5 Navigation / Menu Keys
• 9 Dedicated Function Keys for - MESSAGE(with LED Indicator), TRANSFER, HEADSET, MUTE, SEND/REDIAL, SPEAKERPHONE, VOL+, VOL

Auxiliary Port

• RJ9 Headset Jack Allowing EHS with Plantronics Headsets, USB to Support Grandstream’s GUV Series Headsets and other USB Headsets

Codecs and Capabilities

• Support for G7.29A/B, G.711µ/a-law, G.726, G.722(Wide-band), G723, iLBC, OPUS, In-band and out-of-band DTMF(in Audio, RFC2833, SIP INFO)

Telephony Features

• Hold, Transfer, Forward, 5 Way Conference, Call Park, Call Pickup, Shared Call appearance(SCA) / Bridged-line-Appearance(BLA), Downloadable Phonebook(XML, LDAP, up to 2000 Items), Call Waiting, Call Log(up to 2000 Records), XML Customisation of Screen, Off-Hook Auto Dial, Auto Answer, Click-to-Dial, Flexible Dial Plan, Hot Desking, Personalised Music Ringtones and Music on Hold, Server Redundancy and Fail Over

HD Audio

• HD Handset and Speakerphone with Support for Wideband Audio, Dual Microphone

Green Energy Efficiency

• Universal Power Adapter Included - Input:100-240V, Output: +12V, 1A, Integrated Power-over-Ethernet (802.3af) Max Power Consumption 9.5W (Power Adapter) or 10.8W (PoE)

QoS

• Layer 2 QoS (802.1Q, 802.1P) and Layer 3 (ToS, DiffServ, MPLS) QoS

Security

• User and Administrator Level Passwords, MD5 and MD5-sess Based Authentication, 256-bit AES Encrypted Configuration file, SRTP, TLS, 802.1x Media Access Control, Secure Boot

Multi-Language

• English, German, Italian, French, Spanish, Portuguese, Russian, Croatian, Chinese, Korean, Japanese and more

Upgrade / Provisioning

• Firmware Upgrade via FTP/TFTP / HTTP / HTTPS, Mass Provisioning using GDMS/TR069 or AES Encrypted XML Configuration File

Base Stand

• 2 Angle Positions Available, Wall Mountable - *Wall Mount is sold Separately*

Physical Specifications

• Dimensions - 220mm x 210mm x 82mm
• Unit Weight - 880g
• Package Weight - 1260g

Package Contents

• Grandstream GRP2634 IP Phone
• Handset with Cord
• Phone Stand
• 12V Power Adapter
• Network Cable
• Quick Installation Guide
• GPL License
