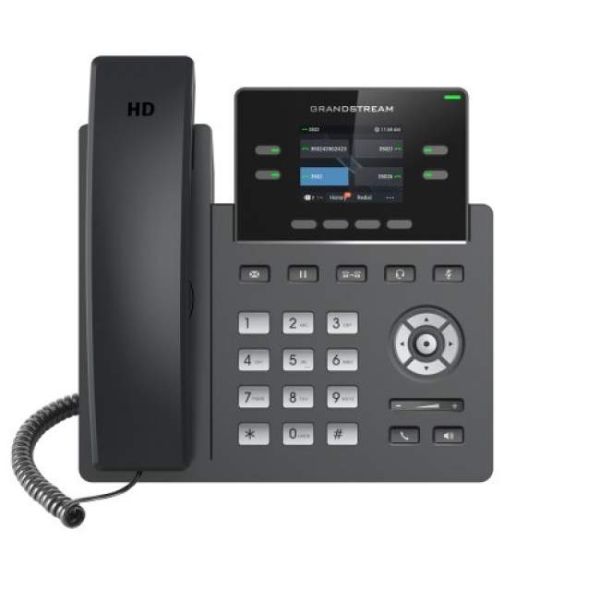

Grandstream GRP2612 IP Phone

The Grandstream GRP2612 is a powerful 2-Line Carrier Grade IP Phone designed with Zero Touch Provisioning for mass deployment and easy management. Featuring a sleek design and a host of next generation features that include 16 Virtual Multi-Purpose Keys (VPKs), a Colour LCD with Swappable Faceplates for easy Logo Customisation and more.

The GRP Series includes Carrier Grade Security Features to provide enterprise level security that include Secure Boot, Dual Firmware Images and Encrypted Data Storage. For Cloud Provisioning and Centralised Management, the Grandstream GRP2612 is supported by Grandstream's Device Management System (GDMS), that provides a centralised interface to configure, provision, manage and monitor deployments of Grandstream endpoints.

Built for busy desktop workers and designed for easy deployment by enterprises, service providers and other high volume markets. The GRP2612 offers an easy to use and easy to deploy voice endpoint.

Features

• Supports 2 SIP Accounts and 4 Multi-Purpose Line Keys
• Swappable Faceplate to Allow for Easy Logo Customisation
• HD Audi Supporting all Major Codecs, Including Wideband Codecs g.722 and Opus
• Up to 16 Digital BLF Keys
• Enterprise Level Protection Including Secure Boot, Dual Firmware Images and Encrypted Data Storage

Protocols/Standards

• SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS(A record, SRV, NAPTR), DHCP, PPPoE, TELNET, TFTP, NTP, STUN, SIMPLE, LLDP, LDAP, TR-069, 802.1x, TLS, SRTP, IPV6

Network Interfaces

• Dual Switched Auto-Sensing 10/100 Mbps Ethernet Ports

Graphic Display

• 2.4 Inch (320 x 240) TFT Colour LCD

Feature Keys

• 4 Line Keys with up to 2 SIP Accounts
• 4 XML Programmable Context Sensitive Softkeys
• 5 Navigation/Menu Keys
• 9 Dedicated Function Keys for - Message (with LED Indicator), Transfer, Hold, Headset, Mute, Send/Redial. Speakerphone, Vol+, Vol-

Auxiliary Port

• RJ9 Headset Jack (Allowing EHS with Plantronics Headsets)

Voice Codec and Capabilities

• Support for G7.29A/B, G.711µ/a-law, G.726, G.722(Wide-Band), G723, iLBC, OPUS, In-Band and Out-of-Band DTMF(In Audio, RFC2833, SIP INFO)

Telephony Features

• Hold, Transfer, Forward
• 3-Way Conference, Call Park, Call Pickup
• Shared Call Appearance (SCA/Bridged Line Appearance (BLA)
• Downloadable Phonebook (XML, LDAP, Up to 2000 Items)
• Call Waiting, Call Log (Up to 1000 Records)
• XML Customisation of Screen, Off Hook Auto Dial, Auto Answer
• Click to Dial, Flexible Dial Plan, Hot Desking
• Personalised Music Ringtones and Music on Hold
• Server Redundancy and Fail Over

HD Audio

• HD Handset, HD Speakerphone with Support for Wideband Audio

Power & Green Energy Efficiency

• Universal Power Adapter Included - Input: 100 - 240V; Output: +5V, 0.6A; Maximum Power Consumption 3W (Power Adapter)

QoS

• Layer 2 QoS (802.1Q, 802.1P) and Layer 3 ((ToS, DiffServ, MPLS) QoS

Security

• User and Administrator Level Passwords, MD5 and MD5-sess Based Authentication, 256-bit AES Encrypted Configuration File, SRTP, TLS, 802.1x Media Access Control, Secure Boot

Multi-Language

• English, German, Italian, French, Spanish, Portuguese, Russian, Croatian, Chinese, Korean, Japanese, and more

Upgrade/Provisioning

• Firmware Upgrade via FTP/TFTP / HTTP / HTTPS, Mass Provisioning using GDMS/TR069 or AES Encrypted XML Configuration File

Base Stand

• 2 Angle Positions, Wall Mountable - Wall Mount Sold Separately

Weight and Dimensions

• Dimensions - 203mm x 193mm x 52.1mm
• Weight - Unit Weight - 554 Package Weight - 936g

Package Contents

• Grandstream GRP2612 Phone
• Handset with Curly Cord
• Phone Stand
• 5V Power Adapter
• Network Cable
• Quick Installation Guide
• GPL License
