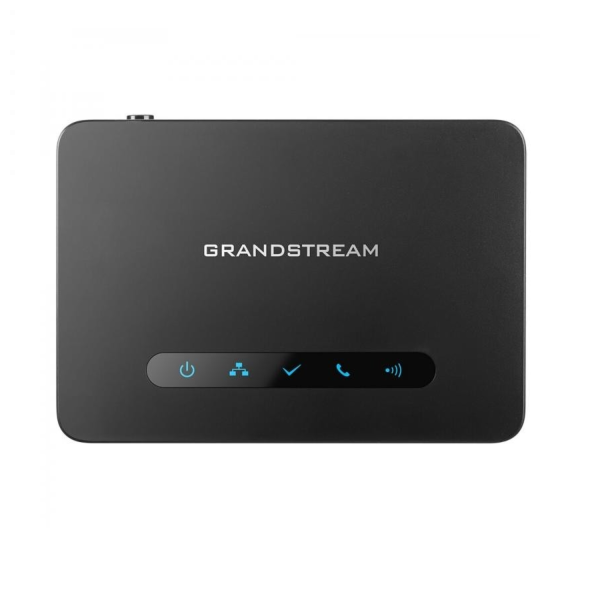

Grandstream DP760 HD DECT Repeater

The Grandstream DP760 is a powerful Wideband DECT Repeater.(Wireless Relay Station) that associates to Grandstreams DP750 DECT VoIP Base Station and DP752 DECT VoIP Base Station offering extended mobility to business and residential users. The DP760 extends an additional range of 300 metres outdoors and 50 metres indoors, giving users the freedom to move around their home or their workspace. This Wideband DECT Repeater relays up to 2 concurrent HD calls. The Ethernet Connection provides PoE for convenient installation and a variety of remote features including Provisioning, Status Monitoring and repeater Firmware Upgrades. When paired with Grandstreams DP750 DECT VoIP Base Station and DP752 DECT VoIP Base Station and Grandstreams DP720 VoIP DECT Handsets the DP760 offers a powerful extended DECT solution for users looking to add coverage to their VoIP DECT System.

Features

• Up to 2 Concurrent HD Calls
• Extends an Additional Range of 300 Metres Outdoors and 50 Metres Indoors for Added Mobility
• Automatic or Manual Association to DP750 and DP752 Base Stations for Easy Use
• Supports Plug & Play Features like Auto Association, Auto Region Detection and Seamless Call Handover
• Automated Provisioning Options Include XML Config Files
• PoE - Ethernet Connection Provides PoE Features

Technical Specifications:

Air Interface

• Telephony Standards - DECT EN 301 406:2001, DECT GAP TBR22 EN 300 444:2001, DECT WRS EN 300 700, CAT-iq TS 102 527
• Frequency Bands - 1880 – 1900 MHz (Europe), 1920 – 1930 MHz (US),1910 – 1920 MHz (Brazil)
• Number of Channels - 10 (Europe), 5 (US, Brazil)
• Range - Up to 300 Metres Outdoors and 50 Metres Indoors

Peripherals

• 5 LED Indicators - Power, Network, Association, Activity, DECT Signal Strength
• Reset Button, Dissociation Button
• One 10/100 Mbps Auto-Sensing Ethernet Port with Integrated PoE

Protocol/Standards

• TCP/IP/UDP, HTTP/HTTPS, ARP/RARP, ICMP, DNS, DHCP, PPPoE, SSH, TFTP, NTP, LLDP-MED, UPnP

Voice Codecs

• G.722 Codec for HD Audio and G.726 codec for Narrowband Audio

Telephony Features

• Plug and Play, Auto Association, Auto Region Detection and Seamless Call Handover

Power and Green Energy Efficiency

• Universal Power Supply Input AC 100-240V 50/60Hz; Output 5VDC 1A; Micro-USBC connection; PoE: IEEE802.3af Class 1, 0.44W–3.84W

Security

• User and Administrator Level Access Control, MD5 and MD5-sess Based Authentication, 256-bit AES Encrypted Configuration file, HTTPS, 802.1x Media Access Control

Multi-Language

• Arabic, Chinese Simple, Chinese Traditional, Czech, Dutch, English, French, German, Hebrew, Italian, Japanese, Korean, Polish, Portuguese, Russian, Serbian, Slovakian, Spanish, Turkish

Upgrade/Provisioning

• Firmware Upgrade Via TFTP/HTTP/HTTPS, Mass Provisioning using AES Encrypted XML Configuration File

Association

• Up to 5 Repeaters in Star , Relays up to 2 Concurrent HD Calls , Automatic or Manual Association to Base Station

Dimensions and Weights

• Dimensions - 28.5mm x 130mm x 90mm
• Weights - Repeater - 143g, Universal Power Supply - 50g, Package Weight - 360g

Package Contents

• DP760 Repeater
• Universal Power Supply
• Ethernet Cable
• Quick Start Guide
• GPL Statement
