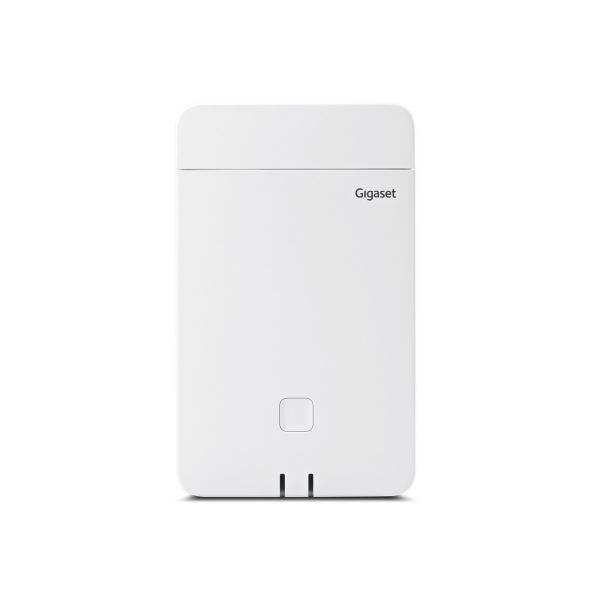

Gigaset N670 IP PRO DECT Base Station

About the Gigaset N670

The up-gradable VoIP Telephone System designed for the growing demands of your business.

The N670 IP PRO is the perfect cordless communication within any small or medium sized office with the ability to scale as and when required.

Designed to serve the 90% of businesses across Europe with less than 20 staff, the N670 offers an elegant VoIP solution for professional cordless communications. Straight out of the box the Gigaset N670 IP PRO is designed to work with the entire Gigaset Professional Handset Range with up to 20 DECT Handsets whilst supporting 8 simultaneous voice calls using both on premise or cloud based IP Telephony services. For busier offices or for larger sites an upgrade to multi cell by license and additional DECT Base Stations enable you to increase coverage, Handsets and simultaneous calls to flexibly meet the needs of your organisation.

Secure Voice and Data

Every voice call via the N670 is encrypted using both SRTP and TLS standards to ensure absolute privacy. With built in support for Lightweight Directory Access Protocol (LDAP), evry team can securely share valuable business contacts directly to and from each Handset with a centralised phonebook.

Application Integration

Ensure your teams are at their most productive through advanced application, data and communication device integration. With built in support for uaCSTA, XML and xHTML applications your inbound and outbound calls can be linked with contact data and custom applications so that critical information is instantly at your fingertips on every device.

Flexible and Reliable

Designed and tested to work with leading on premise and cloud based IP telephone service providers, the N670 features both auto-provisioning and remote management capabilities that make deployment easy and simplifies on going administration tasks such as adding users, changing numbers or setting up preferences.

Freedom to Grow

As your business needs change the N670 is ready to adopt with software and hardware upgrades which will enable your organisation to extend the reach and coverage of the system. Through a license update the Gigaset N670 IP PRO can support multiple sites whilst still delivering all its reliability, security and communication integration features.

Central Management

With a simple license upgrade to a full scale multicell solution, your organisation benefits from central management capabilities, allowing a remote administrator to manage telecommunications access across multiple sites including branch office, multi floor offices, campuses or even extended outdoor sites (Dependent on PBX or Provider).

Mini Multicell Function

Up to three N670 IP Pro can be combined into a mini multicell system without any additional licenses. Eight simultaneous calls with a maximum of 20 Handsets are still possible in rhe extended DECT range. Availability of the employees is always guaranteed, no matter where they happen to be.

Gigaset AML - Alarm, Messaging and Location

The Gigaset N670 IP Pro DECT System can be connected to Messaging and Alarm servers over an open interface (MQTT), and therby offers intelligent message management with priority dependent signaling,

Feature Highlights

• Up to 20 Users / SIP Accounts / Handsets (Via License - up to 250)
• Single Cell System (Via License up to 250)
• Up to 8 Parallel Calls
• Central Management of Gigaset N670 in Different Locations by N870 Integrator Software
• LDAP(S) Phonebook
• Profressional Zero Touch Configuration Via Auto-Provisioning
• IPUI Based Handset Registration
• uaCSAT Support for CTI Integration
• XHTML Applications by Customer
• End to End Signaling and Voice Encryption
• LED's on Front for Status and Visual Power Check

Technical Data:

Phonebook and Dialing

• Link to an External LDAP(S) Phonebook/s (Up to 10)
• XML Directories
• XSI Directories (Broadsoft)
• Central Directory, Hosted by N670
• Search Function and Reverse Look up Online
• vCard Support
• Name Indication for Incoming Calls, Outgoing Calls, Missed Call Lsit, Redial List
• DTMF (SIP Info / RFC 2833, In-Band)
• Country Specific Call Progress Tones (Provisionable)
• CLIP, CNIP - Name Indication for Incoming Calls, Outgoing Calls, Missed Call List, Redial List
• Name Replacement from Local Phonebook and Online Directories (Auto Lookup)
• Calls Lists - Up to 50 Calls (Missed, Received, Dialed)
• XSI Call Logs (Broadsoft)
• SIP MWI (Message Waiting Indicator) Signalling for Voicemail

Software

• Easy Configuration via Web Browser
• Administrator Friendly Configuration via Configuration File
• User Specific Auto Provisioning - Via MAC Address, Via XML Configuration File
• Firmware Upgrade / Downgrade
• Backup and Restore Functions
• Log to External Syslog Servers

Hardware

• Wall or Ceiling Mountable
• Antenna Diversity
• 2 Status LED's
• Reset Key
• Ethernet RJ45 10/100 Mbps
• Power over Ethernet (PoE IEEE 802.3af Class 1
• Gigaset N670 Dimensions - 180mm x 110mm x 42mm (H x W x D)
• Two Year Warranty
• Up to 20 Accounts (1 for Each User)
• MWI Signaling Configurable
• Failover - DNS, SRV, Failover Server
• Connect DECT Sync/a-sync State with SIP Registration (Handset Off or Out of Range / De-Register SIP)
• IPUI Provisioning | xHTML Applications | uaCSTA | Local Three Way Conference

Platform Features

The Gigaset N670 Supports Many Platforms Including Broadsoft and Asterisk, Genral Platform Features Include:

• Network AM
• Call Transfer - Attended, Unattended, Semi Attended, Blind
• Call Waiting | Call Hold/Toggle/Resume
• Call Reject | CLIR
• Call Forwarding - CFU, CFNR, CFB
• Distinctive Ring (Internal/External)
• Auto Provisioning | Net Directories via LDAP(S) | Group Pickup

Service

• Syslog | PCAP Tracing | SNMPv3 | CLI - Command Line Interface for Specific Service Cases
• Save and Restore | Base Station Remote Reset by Rower Rrocedure
• Firmware Update from Server, File Based, Scheduled, Automatically Updating all Base Stations | Visualisation Tool

Technical Specifications

• DECT EN 300 175-x
• Standards - GAP / pnCAP
• DECT Radio Coverage - Up to 50m Indoor and 300m Outdoor
• Support of 120 DECT Channels
• TLS1.0/1.1/1.2 for HTTPS and SIP, SIPS
• SIP (RFC3261, RFC2396, RFC2976)
• HTTP/Digest Authentication (RFC2617)
• Locating SIP Server (RFC3263)
• Call Transfer (RFC5589, RFC3515, RFC3891, RFC3892)
• MWI (RFC3265, RFC3842)
• SDP (RFC4566, RFC3264,RFC3555)
• RTP (RFC3550, RFC3551, RFC3555, RFC2833), SRTP, RTCP
• IPv4, IPv61, SNTP, DHCP (Option 1, 3, 6, 12, 15, 28, 42, 114, 120), DNS, TCP, UDP, VLAN (IEEE 802.1q)
• DNS SRV | 8 Simultaneous Calls (G.711) | Codecs G.711, G.722, G.729ab
• VAD/CNG (for G.729ab) | QoS (RFC2474, RFC2475) | Approvals - CE

Package Contents

• Gigaset N670 IP PRO Base Station
• Security Leaflet
• Screws
