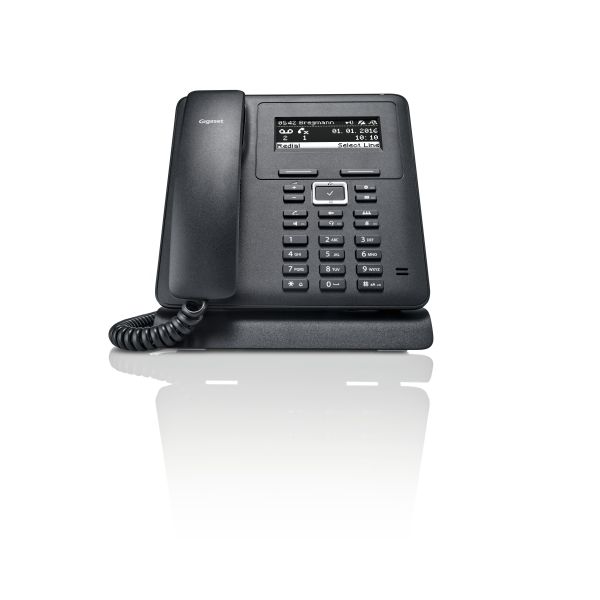

Gigaset Maxwell Basic IP Desk Phone

The Maxwell Basic is equipped with a four-line, black and white display and navigation keys to easily guide the user through the phone's settings. The Maxwell Basic has ten pre-defined function keys offering users quick access to commonly used features, allowing for quick call handling. Despite being the entry-level model within Gigaset's Maxwell series this phone offers users the benefit of Gigabit pass-through as standard.

The Maxwell Basic stand offers a choice of three different angled positions. The phone is also able to be wall mounted, making it an ideal choice for multiple different locations and business scenarios.

Hands Free Flexibility

Having your hands free during a call is key in our business life today. Maxwell Basic fulfils this need in many ways. Maxwell Basic supports HD audio in handsfree and headset.

Loudspeaker Audio

Having your hands free during a call is key in our business life today. Maxwell Basic fulfils this need in many ways. Both support loudspeaker audio in handsfree mode and handset.

Intuitive Operation

The Maxwell Basic is equipped with a black and white display and navigation key to guide the user to the desired settings. The screen projects the information in high contrast, which helps you to read the screen in a wide angle behind the desk. You will clearly see  who‘s calling.

Movable Foot and Wall Mount

Every user needs to customise their phone in a different way. On every location there are situations with overhead lightning, shortage of space on the desk, longer distance to the phone. Therefore Maxwell Basic supports a movable foot. The foot has three different positions from vertical, to horizontal under a 120-140-degree angle. Without the foot, Maxwell Basic can be mounted on the wall.

Features

• Call waiting, Call active indicator
• Internal directory with 100 entries
• Integrated Power over Ethernet
• Gigabit Ethernet (10/100/1000) with 2-port switch
• Professional zero-touch auto-provisioning setup
• Exceptional HD voice and sound
• Multiple ringtones, selectable per line (internal, external, group, door)
• Up to 4 SIP accounts
• 5-way navigation key for easy operation
• Outstanding user interface on LCD display

Directory and Call Management

• Address book with 100 entries on internal memory
• Call waiting, forward, call hold, swap, conference (attended and ad hoc), transfer (unattended)
• Display of call duration, name and number
• 2 lines in parallel
• 3-way conferencing (local)
• Pre-dialing with editing
• XML/LDAP auto-lookup
• LDAP support (network-based corporate phonebook)
• XML directories
• Quick search: characters or full text

Telephony / PBX Features

• 4 VoIP accounts
• Network AM
• Conference calls (up to 3-way)
• Call transfer: unattended, attended
• Call hold
• Call swap
• Call resume
• Call reject
• Call back
• CLIR
• Call waiitng
• Manual call deflection
• Call forwarding: CFU, CFNR, CFB
• Anonymous call blocking
• Call log
• DND
• Call back on busy
• Call record (on server)
• Zero-touch auto-provisioning
• Automatic firmware updates
• XML directories
• LDAP

Audio Features

•  Headset connection via standard RJ-9 jack
• Wideband HD sound in acc. with TIA/EIA-920 HDSP™ , G.722
• Adjustable volume: speakerphone, corded handset and headset
• Codecs G.711 u/a, G.722, G.726-32, iLBC

Technical Data

Maxwell Basic is equipped with;

• Monographic Display, illuminated
• Resolution: 128 x 48 pixels
• Full keypad (0-9, *, #)
• 10 function keys for quick handling and status indication
• Gigabit-Ethernet 2-port switch (10/100/1000), LAN (PoE) - Network/Gateway/Switch, LAN (PC) - Network/Computer
• RJ11 (2x)
• Corded Handset, Corded Headset
• PoE: IEE 802.af, class 2

Dimensions of Main Device

• 188 mm (L) x 188.5 mm (W) x 36 mm (H)
• Weight approx.: 395 g

Dimensions of Handset

• 181 mm (L) x 45.6 mm (W) x 38.5 mm (H)
• Weight approx.: 108 g

Dimensions of Foot

• 187.5 mm (L) x 156.5 mm (W) x 24.5 mm (H)
• Weight approx.: 306 g

In the Box

• Maxwell basic desk phone
• Desktop stand
• Handset
• Curly cord
• User guide
