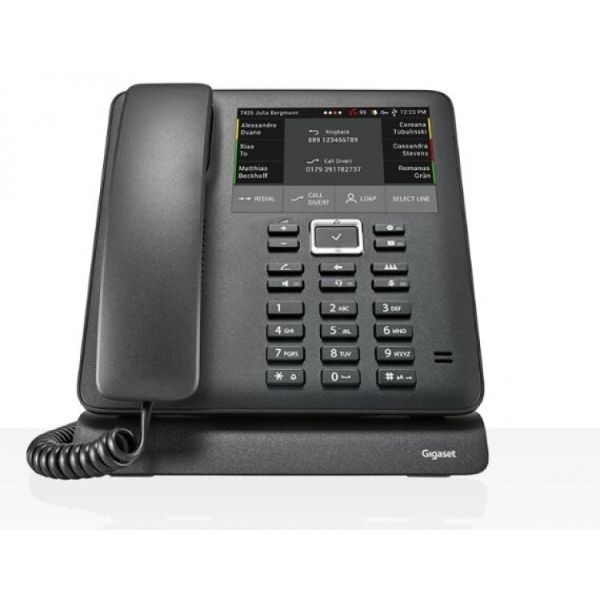

Gigaset Maxwell 4 - Professional Business Touchscreen IP Phone - New

Gigaset Maxwell 4 - Professional Business Touchscreen IP Phone

A High Quality High End Device Combining A Conventional Keypad As Well As A Colour Touchscreen

The Gigaset Maxwell 4 Offers a Powerful Communication Device With an Easy to Use Touchscreen Interface that is Flexible for Any Business Environment

Combining all the benefits of full HD Audio, professional quality handsfree calling, flexible stand and wall mounting options, the Gigaset Maxwell 4 goes further still with a crystal clear colour Touchscreen Display and Intuitive User Interface, putting all users critical business communication at their fingertips. With support for up to six SIP Accounts, the Gigaset Maxwell 4 is ready for multi-line telephony operation and designed to work with leading cloud based and on premise communication service providers.

Security by Design

Ensuring every business call is kept private, the Maxwell 4 benefits from industry standard end to end encryption using Secure Real-Time Transport Protocol (SRTP) and Transport Layer Security (TLS). Each unit is further secured with a touch gesture unlock code to prevent unauthorised usage.

Flexible and Adjustable

The 4.3 Inch Capacitive Colour Touchscreen with adjustable contrast controls plus an additional 38 programmable soft keys make the Maxwell 4 an ideal IP Phone for any small office or big business environment. Ease of use is further enhanced through a flexible stand design offering multiple viewing angles and mounting options to deliver an optimum business communication experience. The 4.3 Inch full Capacitive Colour Touchscreen ensures its easy to access all of the phones features, whilst ensuring callers details can be seen from any angle in both wall mounted and desktop modes. The Maxwell 4 includes on screen Busy Lamp Flad (BLF) status that makes calling colleagues and transferring calls a breeze.

Handsfree Flexibility

Designed to suit busy business life with seamless call handling and telephone conferencing delivered via High Definition Audio Microphones and Speakers. The Maxwell 4 supports both wired and wireless Headsets via USB.

Flexible Stand & Wall Mount

The Flexible Stand design offers multiple viewing angles and mounting options to deliver optimum business communication experience. Three different desktop stand positions as well as a wall mounting option makes the Gigaset Maxwell 4 suitable for any location.

Industry Leading Call Handling

The combination of intuitive operations via touchscreen with support for 4 parallel calls and 5 way teleconferencing make the Gigaset Maxwell 4 ideal for call centre agents and busy receptionists.

Easy Set Up and Management

Zero Touch Provisioning and a common parameter set between all Maxwell modes means the entire range is easy to set up both locally and for remote teleworkers. IT administrators have access to all settings and configuration through a simple web interface, making the Maxwell 4 a breeze to manage even in the most challenging of business environments.

Designed for PC Connectivity

With built in PC integration capabilities, the Maxwell 4 can easily connect to Customer Relationship Management (CRM) and other software applications to quickly bring up caller account details on any connected PC.

Ready for the Cloud

With certified compatibility on leading IP and Cloud Based Telephony providers incouding Broadsoft, Maxwell 4 offers simple installation using built in auto provisioning software which makes it easy to deploy and manage remotely for individual users and busy call centres.

Great for Nurturing Contacts

With its USB Port for Headsets or Storage Media, RJ9 and RJ45 Jack for Handsets and Headsets and LAN connection for communication with the network computer and PBX, the Maxwell 4 integrates perfectly in any communictions infastructure. The integrated address book holds 1000 entries, however the device can also read the company directory in the network via LDAP and permits access to online address books, The quick search using symbols or full text makes it easy to find entries and when calls are received. the phone automatiically searches for an entry in the online directory.

Feature Highlights

• Outstanding User Interface on Touch Display
• USB 2.0 - Type A
• EHS/DHSG Headset Connection
• Call Waiting / Call Active Indication
• Internal Directory with 1000 Entries
• Support of Net Provider Features Via Menu
• Integrated Power over Ethernet
• Gigabit Ethernet (10/100/1000) With 2 Port Switch
• Professional Zero Touch Auto Provisioning Set Up
• Exceptional HD Voice and Sound
• Up to Six SIP Accounts
• 5 Way Navigation Key for Eay Operation

Technical Data

• 4.3 Inch Capacitive Touch Colour TN Display, Illuminated
• 272 x 480 Pixel Resolution
• Full Keypad (0-9, *, #)
• 10 Function Keys for Quick Handling and Status Indication
• Gigabit Ethernet 2 Port Switch (10/100/1000), LAN (PoE) Network, PC - Computer
• RJ9 - Corded Handset, Corded Headset
• RJ45 (EHS/DHSG) - EHS/DHSG Headset
• USB 2.0 - Type A - Headset, Handsfree Device
• USB Plug
• PoE - IEEE 802.3af, Class x

Directory and Call Management

• Address Book with 1000 Entries on Internal Memory
• Quick Search - Characters or Full Text
• Online Address Books
• LDAP Support (Network Based Corporate Phonebook)
• Pre-Dialing with Editing
• 5 Way Conferencing (Local)
• 4 Lines in Parallel
• Display of Call Duration, Name and Number
• Call Waiting, Forward, Call Hold, Swap, Conference (Attended and Ad Hoc), Transfer (Attended and Blind)
• Online Directory Auto-Lookup for Incoming Calls

Audio Features

• Headset Connection Via EHS/DHSG, Standard RJ-9 Jack or USB
• Wideband HD Sound
• Full Duplex Speakerphone in Brilliant Sound Quality
• Adjustable Volume - Speakerphone, Corded Handset and Headsets
• Codecs G.711 u/a, G.722, G.726-32, iLbc, G.729

Telephony PBX Features

• BLF (Busy Lamp Fields)
• Conference Calls (Up to 5 Way)
• Call Transfer - Blind / Unattended / Attended
• Call Hold / Reject / Swap / Resume
• Call Bacl
• CLR
• Call Waiting
• Manual Call Deflection
• Call Forwarding - CFU, CFNR, CFB
• Anonymous Call Blocking
• MOH (Music on Hold)
• Zero Touch Auto Provisioning

Supported Protocols

• VoIP Protocol - SIP (RFC3261, RFC2543
• Security - SRTP (RFC3711), TLS (RFC2246), SIPS
• Remote Configuration - HTTP, HTTPS
• Internet Protocol - IPv4 (RFC0791)
• QoS - DiffServ (RFC2474, RFC2475)
• RTCP
• DHCPv4 (RFC2131)
• DHCP Option 60 - VendorID
• DHCP Option 114
• STUN (RFC3489)
• ICE
• DNS SRV-RR (RFC2782)
• DTMF (In-Band) RTP Payload - RFC4733, SIP-INFO
• Syslog
• IEEE 802.1Q VLAN Tagging
• HTTP
• HTTPS
• TCP
• UDP
• RTP
• LDAP

Dimensions and Weights:

Dimensions of Main Device

• 188mm x 188.5mm x 36mm (L x W x H)
• Weight Approximately - 401g

Dimensions of Handset

• 181mm x 45.6mm x 38.5mm (L x W x H)
• Weight Approximately - 108g

Dimensions of Foot

• 187.5mm x 156.5mm x 245mm (L x W x H)
• Weight Approximately - 306g

Gigaset Maxwell 4 - Professional Business Touchscreen IP Phone Package Contents

• Main Device
• Handset
• Handset Cable
• Foot
• Security Leaflet
