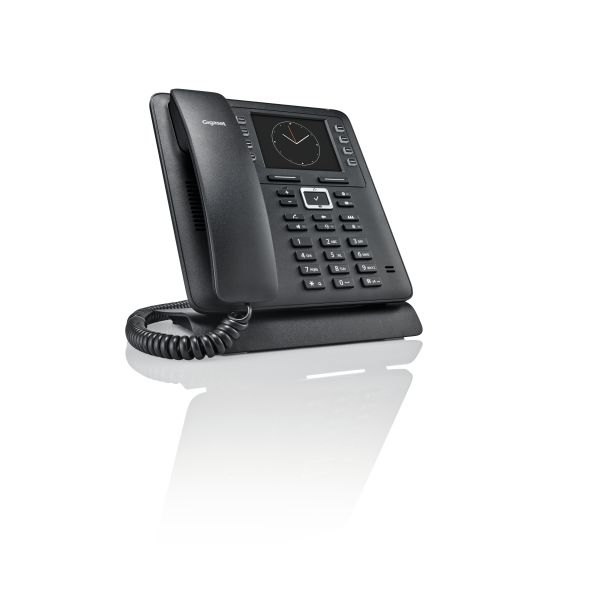

Gigaset Maxwell 3 IP Desk Phone

The Maxwell 3 is equipped with a large 3.5" TFT display and navigation keys to easily guide the user through the phone's settings. This business class phone has 8 programmable function keys offering users the flexibility to customise their phone with speed dials and quick access to their most used features, and with self-labelling keys makes them quick and simple to set up and update.

The Maxwell 3 stand offers a choice of three different angled positions. The phone is also able to be wall mounted, making it an ideal choice for multiple different locations and business scenarios.

Hands Free flexibility

Having your hands free during a call is key in our business life  today. Maxwell 3 fulfils this need in many ways. Maxwell 3  supports HD audio in handsfree and headset.

Loudspeaker audio

Having your hands free during a call is key in our business life today. Maxwell 3 fulfils this need in many ways. Maxwell 3 supports loudspeaker audio in handsfree mode and handset.

Movable foot and wall mount

Every user needs to customise their phone in a different way. On every location there are situations with overhead lightning, shortage of space on the desk, longer distance to the phone. Therefore Maxwell 3 supports a movable foot. The foot has three different positions from vertical, to horizontal under a 120-140-degree angle. Without the foot, Maxwell 3 can be mounted on the wall.

Intuitive operation

The Maxwell 3 is equipped with a large TFT display and navigation key to guide the user to the desired settings. The screen projects the information in high contrast, which helps you to read the screen in a wide angle behind the desk. You will clearly see who‘s calling.

Features

• Outstanding user interface on TFT display
• 5-way navigation key for easy operation
• Up to 4 SIP accounts
• Multiple ringtones, selectable per line (internal, external, group, door)
• Exceptional HD voice and sound
• Professional zero-touch auto-provisioning setup
• Gigabit Ethernet (10/100/1000) with 2-port switch
• Integrated Power over Ethernet
• Internal directory with 100 entries
• Call waiting . Call active indicator

Directory and Call Mangement

• Address book with 100 entries on internal memory
• Quick search: characters or full text
• XML directories
• LDAP support (network-based corporate phonebook)
• XML/LDAP auto-lookup
• Picture caller ID
• Pre-dialling with editing
• 3-way conferencing (local)
• 2 lines in parallel
• Display of call duration, name, number and photo
• Call waiting, forward, call hold, swap, conference (attended and ad hoc), transfer (un-/attended)

Telephony / PBX Features

• 4 VoIP accounts
• BLF (busy lamp fields)
• Network AM
• Conference calls (up to 3-way)
• Call transfer: unattended, attended
• Call hold
• Call reject
• Call swap
• Call resume
• Call back
• CLIR
• Call waiitng
• Manual call deflection
• Call forwarding: CFU, CFNR, CFB
• Anonymous call blocking
• Call log
• DND
• Call back on busy
• Call record (on server)
• Zero-touch auto provisioning
• Automatic firmware updates
• XML directories
• LDAP

Audio Features

• Headset connection via EHS/DHSG, standard RJ-9 jack or USB
• Wideband HD sound in acc. with TIA/EIA-920 HDSP™ , G.722
• Full-duplex speakerphone in brilliant sound quality
• Adjustable volume: speakerphone, corded handset and headsets
• Codecs G.711 u/a, G.722, G.726-32, iLBC

Technical Data

Maxwell 3 is equipped with;

• 3.5“ colour TFT Display, illuminated
• Resolution: 320 x 240 pixels
• Full keypad (0-9, *, #)
• 8 programmable function keys, illuminated (red, green, yellow)
• 10 function keys for quick handling and status indication
• Gigabit-Ethernet 2-port switch (10/100/1000), LAN (PoE) - Network/Gateway/Switch, LAN (PC)- Network/Computer
• RJ11 (2x)
• Corded Handset, Corded Headset
• RJ45 (EHS/DHSG), EHS/DHSG wireless Headset (Sennheiser)
• USB 2.0 Type A, Headset (Sennheiser), Handsfree device, USB plug
• PoE: IEEE 802.3af, class 3

Dimensions of Main Device

• 188 mm (L) x 188.5 mm (W) x 36 mm (H)
• Weight approx.: 401 g

Dimensions of Handset

• 181 mm (L) x 45.6 mm (W) x 38.5 mm (H)
• Weight approx.: 108 g

Dimensions of Foot

• 187.5 mm (L) x 156.5 mm (W) x 24.5 mm (H)
• Weight approx.: 306 g

In the Box

• Maxwell 3 desk phone
• Desktop stand
• Handset
• Curly cord
• User guide
