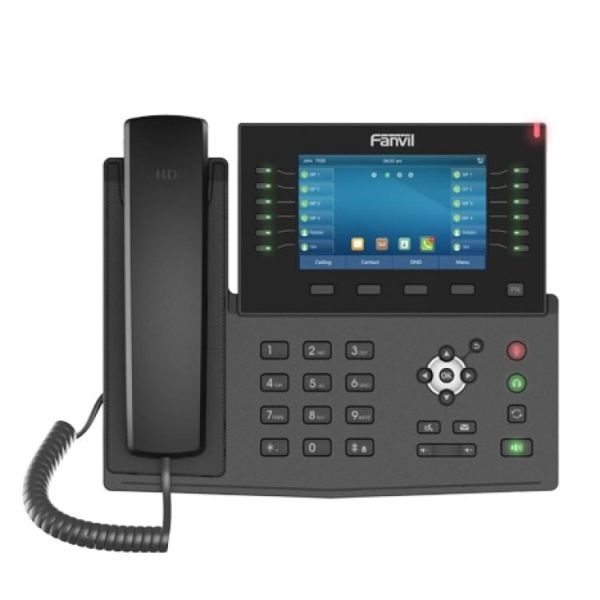

Fanvil X7C Enterprise Colour Screen IP Phone

Fanvil X7C Enterprise Colour Screen IP Phone

Elegantly Designed With Cutting Edge Telephony Features - Which Include a 5 Inch High Resolution Colour Screen, Adjustable Stand, HD Audio, Dual Gigabit Ports, Integrated PoE and many more features.

The Fanvil X7C has a modern clear design, ideal for business users who need immediate access to all of their important information. In addition to a 5 Inch High Resolution Colour Screen , the X7C also features 20 SIP Lines, HD Audio with Opus Support, Up to 60 DSS Keys (12 Physical), Built in Bluetooth, Wi-Fi Connectivity and more.

5 Inch Capacitive Colour Display

The X7C has a large Colour Display, offering convenient access to all key information such as Call Lists, Phonebook and Functions.

HD Audio for Speakerphone and Handset

Newly added support for Opus and a larger audio cavity brings abundant, strong frequency effect. The Speakerphone adopts full net coverage delivering crystal clear life like voice communication.

Up to 60 DSS Key Entries

12 DSS Keys on the side of the Display feature Multi-Coloured ;LEDs, ensuring they are easy to see. Up to 60 DSS Key Entries are available over 5 pages, and each Key can be individually configured with Speed Dial, Call Forwarding, BLF, Group Broadcasting Function etc.

Rich Extension Function

The Fanvil X7C offers a variety of device connections including Wi-Fi (Via Wi-Fi Dongle), Built in Bluetooth, EHS Headset, USB Connection for Charging Smartphones or other devices. Two Gigabit ports allow users to connect their Desktop Computer or Laptop to the Phone, with no need for any extra cabling.

Deliver HD Video Call with IP Camera/SIP Video Door Phone Integration

Equipped with Video Codec H.264, the X7C enables integration with your IP Camera or Fanvil SIP Video Door Phone, allowing you to speak with visitors and unlock the door from your Fanvil X7C IP Phone.

Fanvil X7C Enterprise Colour Screen IP Phone Key Features and Highlights

• 20 SIP Lines, 3 Way Conference, Hotspot
• HD Audio on Speakerphone and Handset
• 5 Inch High Resolution Colour Display
• Built in Bluetooth for Connecting Bluetooth Headsets
• Wi-Fi Connectivity (Via Wi-Fi Dongle)
• Up to 60 DSS Key Entries Available (12 Physical)
• Video Codec H.264 Support for Receiving Video Calls
• Dual Gigabit Ports, Integrated PoE
• Stand with 2 Adjustable Angles of 40 and 50 Degrees
• Compatible with Major Platforms Such as Asterisk, Broadsoft, 3CX, Metaswitch, Elastix, Avaya and More

 Fanvil X7C Enterprise Colour Screen IP Phone Generic Features

• 20 SIP Lines
• HD Voice
• Support Receiving Video Call
• PoE Enabled
• 5 Inch Colour LCD Screen
• Handset / Handsfree / Headset Mode
• Intelligent DSS Keys
• Optional External Power Supply (Not Included)

Fanvil X7C Enterprise Colour Screen IP Phone Features

• Local Phonebook (2000 Entries)
• Remote Phonebook (XML/LDAP, 2000 Entries)
• Call logs (In/Out/Missed, 1000 Entries)
• Black/White List Call Filtering
• Screen Saver
• Voice Message Waiting Indication (VMWI)
• Programmable DSS/Soft Keys
• Network Time Synchronization
• Built-in Bluetooth 2.1 - Supports Bluetooth Headset
• Support Wi-Fi Dongle
• Support Plantronics Wireless Headset (Through Plantronics APD-80 EHS Cable)
• Support Jabra Wireless Headset (Through Fanvil EHS20 EHS Cable)
• Support Recording (Through Flash Drive or Server Recording )
• Action URL / Active URI
• uaCSTA

Video

• Video Codec - H.264
• Video Call Resolution - QCIF / CIF / VGA

Audio

• HD Voice Microphone/Speaker (Handset/Hands-free, 0 ~ 7KHz Frequency Response)
• HAC Handset
• Wideband ADC/DAC 16KHz Sampling
• Narrowband Codec - G.711a/u, G.723.1, G.726-32K, G.729AB, AMR, iLBC
• Wideband Codec - G.722, AMR-WB, Opus
• Full-Duplex Acoustic Echo Canceller (AEC)
• Voice Activity Detection (VAD) / Comfort Noise Generation (CNG)/ Background Noise Estimation (BNE) / Noise Reduction (NR)
• Packet Loss Concealment (PLC)
• Dynamic Adaptive Jitter Buffer up to 300ms
• DTMF - In-Band, Out-of-Band – DTMF-Relay(RFC2833) / SIP INFO

Fanvil X7C Enterprise Colour Screen IP Phone Network Features

• Physical - 10/100/1000 Mbps Ethernet, Dual Bridged Port for PC Bypass
• IP Mode - IPv4 / IPv6 / IPv4 & IPv6
• IP Configuration - Static / DHCP / PPPoE
• Network Access Control: 802.1x
• VPN - L2TP / OpenVPN
• VLAN
• LLDP
• QoS
• RTCP-XR(RFC3611),VQ-RTCPXR(RFC6035)

Protocols

• SIP2.0 over UDP/TCP/TLS
• RTP/RTCP/SRTP
• STUN
• DHCP
• IPv6
• LLDP
• PPPoE
• 802.1x
• L2TP
• OpenVPN
• SNTP
• FTP/TFTP
• HTTP/HTTPS
• TR-069

Fanvil X7C Enterprise Colour Screen IP Phone Call Features

• Call Out / Answer / Reject
• Mute / Unmute (Microphone)
• Call Hold / Resume
• Call Waiting
• Intercom
• Caller ID Display
• Speed Dial
• Anonymous Call (Hide Caller ID)
• Call Forwarding (Always / Busy / No Answer)
• Call Transfer (Attended / Unattended)
• Call Parking / Pick Up (Depending on Server)
• Redial
• Do Not Disturb
• Auto Answering
• Voice Message (On Server)
• 3 Way Conference
• Hot Line
• Hot Desking

Deployment and Maintenance

• Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCPOPT66/SIP PNP/TR069
• Web Management Portal
• Web-based Packet Dump
• Configuration Export / Import
• Phonebook Import/Export
• Firmware Upgrade
• Syslog

Fanvil X7C Enterprise Colour Screen IP PhonePhysical Specifications

• Main LCD x 1 - 5 Inch (800×480) Colour Screen LCD
• Keypad - 43 Keys, Including, 4 Soft Keys, 12 DSS Keys With Tri-Colour LED, 1 Page Switch (PS) Key, 5 Function Keys (Hold, MWI, Mute, Headset, Redial), 4 Navigation Keys, 1 OK Key, 1 Return Key, 12 Standard Phone Digit Key, 2 Volume Control Keys - Up/Down, 1 Handsfree Key
• HD Handset (RJ9) x1
• Standard RJ9 Handset Wire x 1
• 1.5M CAT5 Ethernet Cable x 1
• Back Rack x1
• RJ9 Port x 2 - Handset x1, Headset x1
• RJ45 Port x2 - Network x1, PC x1 (Bridged to Network)
• USB2.0 Port x1 - Standard A, Connect with Wi-Fi USB Dongle or Flash Driver
• DC Power Input - 5V/2A
• Power Consumption (PoE) - 2.6~ 9W
• Power Consumption (Adapter) - 2.4~8W
• Working Temperature - 0~40℃
• Working Humidity - 10~95%
• Desktop Stand (Angle 1) - 268 x 185 x 189mm
• Desktop Stand (Angles 2) - 268 x 201 x 168mm
