Fanvil X7A - Android Touch Screen IP Phone

About the Fanvil X7A

The Fanvil X7A is a high end enterprise IP Phone with Android 9.0 OS, the Fanvil X7A provides a more intelligent and smoother touch operation for any user. 112 DSS Keys on the 7 Inch Colour Touch Screen, Built in Wi-FI and Built in Bluetooth make communication simpler and smarter. An optional USB Camera - Fanvil CM60 (Not Included) delivers superb audio and video for group conferences.

Optimised Android 9.0 Operation System

Android 9.0 OS in the Fanvil X7A supports a greater compatibility and more powerful functions. Moveable Icons on the Interface provide direct access to frequently used functions. Intelligent touch full keypad with Emoji.

HD Video Call with Optional Fanvil CM60 USB Camera (CM60 is an Optional Accessory - Not Included)

The Optional CM60 Portable HD USB Camera supports the 3 way Video Conference with HD full screen image, even in dark environments. Featuring a Clip and USB Cord, the Fanvil CM60 can be installed flexibly and easily on the Phone, PC or Desk.

112 DSS Keys on a 7 Inch Colour Touch Screen

The Fanvil X7A possesses 112 programmable DSS Keys without the need to add an Expansion Module. The Keys can be configured as Speed Dial, Call Forwarding, BLF or Group Broadcasting Function.

HD Audio with Harman Speaker

Featured with Harman Speaker , Wideband Codec G.722 and Audio Codec Opus, the Fanvil X7A keeps bringing the most premium sound for users.

Greater Collaboration with Built in Wi-Fi and Bluetooth

No more messy Cables on the Table with Built in 2.4g/5G Wi-Fi, Enable Multi-Tasking with Bluetooth Headset.

Main Features

• Android 9.0 OS
• 20 SIP Lines
• 7 Inch Colour Touch Screen with 112 One Touch DSS Keys
• External Fanvil USB Camera (Optional - Not Included)
• 720P HD Video Call, Video Codec H.264
• HD Audio with Harman Speaker, Wideband Codec G.722 and Audio Codec Opus
• Built in 2.4G/5G Wi-Fi and Bluetooth
• Support EHS Headset
• Support SIP Hotspot
• Local Phonebook up to 2000 Entries
• Supports both PoE and External Power Supply

Generic Features

• 20 SIP Lines, 5 Way Audio Conference, Hotspot
• Supports External Fanvil USB Camera (Optional - Not Included)
• 112 One Touch DSS Keys on a 7 Inch Capacity Colour Touch Screen
• HD Audio with Harman Speaker
• Built in Bluetooth 4.2 and 2.4G/5G Wi-Fi
• Supports Video Codec H.264 and 3 Way Video Conference
• Dual Gigaports, Integrated PoE
• Handset/ Handsfree / Headset Mode

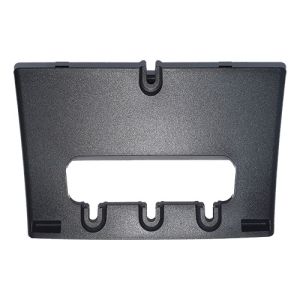

• Stand with 2 Adjustable Angles of 40 Degrees and 50 Degrees
• Compatible with Major Platforms Such as - Asterisk, Broadsoft, 3CX, Metaswitch, Avaya, Elastix etc
• Optional External Power Supply (Not Included)

Operating System

• Android 9.0 OS with Higher Security and Better Compatibility
• Built in Applications - Files, Calendar, Gallery, Browser, Email, Calculator, Notepad, Sound Recorder, Clock, Video, Music
• Supports 3rd Party Applications
• Secondary Development of API

Features

• Local Phonebook (2000 Entries)
• Remote Phonebook (XML/LDAP, 2000 Entries)
• Intelligent Search for Contacts and Call Log
• Call Logs (in/Out/Missed, 1000 Entries)
• Black/White List Call Filter
• Screen Saver
• Voice Message Waiting Indication (VMWI)
• Programmable DSS/Soft Keys
• Redial
• Do not Disturb
• Auto Answer
• Voice Message (On Server)
• 5 Way Audio Conference
• Hot Line
• Hot Desking
• BLF

Video

• Video Decoding - H.264
• Video Call Resolution - CIF/VGA/4CIF/720P
• Image Format - JPEG/PNG/BMP
• Video Format - MP4
• Bandwidth Selection - 64kbps~4Mbps
• Frame Rate Selection - 5~30fps
• Video from Remote Site can be Displayed in Full Screen
• Video Preview
• Optional 2MP, Plug & Play, Flexible Placement and Angle Adjustment, 3 Way Video Call Fanvil CM60 Portable HD USB Camera Available (Not Included)

Audio

• HD Voice Microphone|Speaker (Handset/Hands-free, 0 ~ 7KHz Frequency Response)
• HAC Handset
• Wideband ADC/DAC 16KHz Sampling
• Narrowband Codec - G.711a/u, G.729AB, iLBC
• Wideband Codec - G.722, Opus
• Full Duplex Acoustic Echo Canceller (AEC)
• Noise Reduction (NR)
• Packet Loss Concealment (PLC)
• Dynamic Adaptive Jitter Buffer
• DTMF - In-Band, Out-of-Band - DTMF Relay (RFC2833) / SIP Info

Network

• Physical - 10/100/1000 Mbps Ethernet, Dual Bridged Port for PC Bypass
• IP Mode - IPv4
• IP Configuration - Static / DHCP
• Network Access Control - 802.1x
• VPN - OpenVPN (Requires Third Party App Support)
• VLAN
• LLDP
• CDP
• QoS

Protocols

• SIP 2.0 over UDP/TCP/TLS
• RTP/RTCP/SRTP
• STUN
• Network Time Synchronisation
• Built in Bluetooth 4.2 - Support Bluetooth Headset / Bluetooth of Mobile Device
• Built in Wi-Fi - 2.4GHz, 802.11 b/g/n, 5GHz, 802.11 a/n/ac
• Support Recording
• Action URL / Active URI
• UaCSTA
• Audio/Video Recording
• SIP Hotspot
• Group Broadcasting
• Action Plan
• Group Listening

Call Features

• Call out / Answer / Reject
• Mute / Unmute (Microphone)
• Call Hold / Resume
• Call Waiting
• Intercom
• Caller ID Display
• Speed Dial
• Anonymous Call (Hide Caller ID)
• Call Forwarding (Always/Busy/No Answer)
• Call Transfer (Attended/Unattended)
• Call Parking/Pick-up (Depending on Server)
• DHCP
• CDP
• LLDP
• PPPoE
• 802.1x z OpenVPN (Requires Third-Party App Support)
• SNTP
• FTP/TFTP
• HTTP/HTTPS
• TR-069

Deployment and Management

• Auto-Provisioning Via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP PNP/TR-069
• Web Management Portal
• Supports the Third Party Communication APP
• Supports Web, Telnet
• Supports Encrypted Configuration Files Download with AES
• Supports Web Upgrade
• Supports Factory Reset Data

Physical Specifications

• LCD x 1 - 7 Inches (1024 x 600) Colour Touch Screen
• Keypad - 26 Keys - Including - 5 Function Keys (Hold, MWI, Mute, Headset, Redial), 4 Navigation Keys, 1 OK Key, 1 Return Key, 12 Standard Phone Digit Keys, 2 Volume Keys, Up/Down, 1 Handsfree Key
• HD Handset - RJ9 x 1
• Standard RJ9 Handset Cord x 1
• 1.5m CAT5 Ethernet Cable x 1
• Back Rack x 1
• RJ9 Port x 2 - Handset x1, Headset x1
• RJ45 Port x 2 - Network x 1, PC x 1 (Bridged to Network)
• USB 2.0 Port x 1 - Standard A, Connect with Flash Driver
• Safety Keyhole x 1
• Power - 5V/2A or PoE
• Power Consumption PoE - 1.596~11.86W
• Power Consumption Adapter - 0.907~9.38W
• Device Dimensions - Desktop Stand Angle 1 - 268mm x 185mm x 189mm, Desktop Stand Angle 2 - 268mm x 201mm x 168mm
