Fanvil X4G Enterprise IP Phone

This Product is End of Life

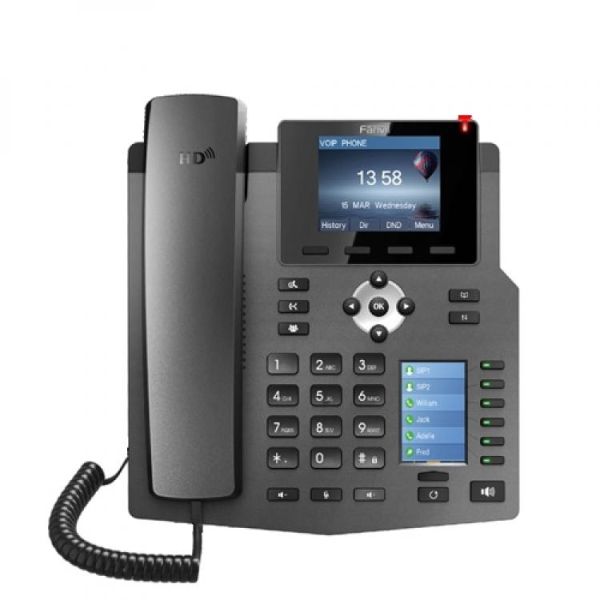

Fanvil X4G Enterprise IP Phone

The New Enterprise Phone With Intelligent DSS Key-Mapping 2.8 Inch LCD Display - 4 SIP Lines and PoE Enabled - Two Network Interfaces - Gigabit Ethernet - (10M/100M/1000M)

The Fanvil X4G IP Phone is a high end Enterprise Desktop Phone with an intelligent DSS Key Mapping LCD, Increasing Users productivity at a cost effective price. The 4-Line IP Phone has Dual 10/100/1000 Mpbs Network Ports with integrated PoE, making it ideal for extended network use. As well as delivering Superb Sound Quality and a Rich Visual Experience, it has many features as well as a second DSS Colour Screen, supporting up to 30 DSS Keys that improve work efficiency. It uses standard encryption protocols to perform highly secure remote provisioning and software upgrades.

2.8 Inch Main Colour Screen & 2.4 Inch DSS Colour Screen Smart and Friendly User Interface

The Fanvil X4G combines the advantages of existing Enterprise Phone UI design experience with a Colour Screen, The UI appearance and operating experience have a qualitative leap.

2 LCD's - Main & DSS

The first Dual Colour Screen Design IP Phone in the VoIP Industry.

6 DSS Keys corresponded to the LCD Display to provide dynamic DSS/BLF Functions of up to five pages at virtualized total of 30 DSS Keys carry the function of an External Expansion Module by itself.

EHS - (Electronic Hook Switch)

Supports EHS Wireless Headset as well as having an RJ9 Headset Port - *EHS and Wireless Headset not Included*

Web Page With Mobile Phones

Scan the X4G Screen QR Code from the Large Screen, access the Fanvil website, allowing users to view information such as Phonebook or Call log. This website can be accessed by Mobile Phone, at anytime and anywhere.

Phone Hotspot

Several Phones share one number from one server, each phone has its own extension number to contact, transfer and conference others.

38 Key Numeric Keypad

The 38 Key Numeric Keypad has many features including 6 Function Keys, 4 Soft Keys, 5 Navigation Keys, 3 Volume Control Keys - Up/Down/Mute(Microphone), 12 Standard Phone Digit Keys, 1 Handsfree Key, 6 DSS Keys with Tri-Colour LED's and 1 Page Jump/Configuration (PJC) Key.

Fanvil X4G Highlights

• DSS Key Mapping LCD - 6 DSS Keys Corresponded to the LCD Display to Provide Dynamic DSS/BLF Functions - Up to Five Pages at Virtualised Total 30 DSS Keys
• Gigabit Ethernet - 10/100/1000 Mpbs Ethernet with PoE Enabled
• Economic and Environmental Friendly Design with Elegant Housing
• High Interoperability - COmpatible with most Major Platforms - 3CX, Asterix, Broadsoft, Elastix, Zycoo and more

Main Features

• 4 SIP Lines
• HD Voice
• PoE Enabled
• 2 LCD's (Main & DSS)
• Handset (HS) / Handsfree (HF) / Headset (HP) Mode (EHS Support for Plantronics Headsets)
• Intelligent DSS Keys
• Desktop / Wall Mountable Installation
• Optional External Power Supply
• Economical and Environmental Friendly Package
• Industrial Standard Certifications

Call Features

• Call Out / Call Answer / Call Reject
• Mute / Unmute (Microphone)
• Call Hold / Resume
• Call Waiting
• Intercom
• Caller ID Display
• Speed Dial
• Anonymous Call (Hide Caller ID)
• Call Forwarding (Always/Busy/No Answer)
• Call Transfer (Attended/Unattended)
• Call Parking /Pickup (Depending on Server)
• Redial/Auto Redial
• Do Not Disturb (Per Line / Per Phone)
• Auto Answering (Per Line)
• Voice Message (On Server)
• Local 3 Way Conference
• Hotline, Hot Desking

Phone Features

• Phone Accessibility Control by User PIN
• Intelligent Phonebook (up to 500 Entries Total)
• Remote Phonebook (XML/LDAP)
• Intelligent Contact Number Matching / Filtering
• Call log (100 Entries total, in/out/missed)
• Voice Message Waiting Indication (VMWI)
• Network Time Synchronization
• Multi-language support in screen and web UI: English, Chinese(Traditional/Simplified), Japanese, Russian, Italian, Turkish, Germany, Dutch, Spanish, Hebrew, Polish, French etc

Audio

• HD Voice Microphone/Speaker (Handset/Hands-free, 0 ſġ7KHz
• Frequency Response)
• Wideband ADC/DAC 16KHz Sampling
• Narrowband CODEC - G.711a/u, G.723.1, G.726-32K, G.729AB
• Wideband CODEC - G.722
• Full-duplex Acoustic Echo Canceller (AEC) - Hands-free Mode, 96ms Tail-Length
• Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise Estimation (BNE) / Noise Reduction (NR)
• Packet Loss Concealment (PLC)
• Dynamic Adaptive Jitter Buffer up to 300ms
• DTMF: In-band, Out-of-Band – DTMF-Relay (RFC2833) / SIP INFO

Networking

• Physical - 10/100/1000Mbps, Gigabit Ethernet, Dual Bridged Port for PC Bypass
• IP Configuration - Static / DHCP / PPPoE
• Network Access Control - 802.1x
• VPN: L2TP (Basic Unencrypted) / OpenVPN
• VLAN
• QoS

Protocols

• SIP2.0 over UDP/TCP/TLS
• RTP/RTCP/SRTP
• STUN
• DHCP
• PPPoE
• 802.1x
• L2TP (Basic Unencrypted)
• OpenVPN
• SNTP
• FTP/TFTP
• HTTP/HTTPS
• TR069

RFCs

• 354/1321/1350/1769/1889/1890/2131/2132/2616/2617/2661/2833/2976
  /3261/3262/3263/3264/3265/3268/3311/3489/3711/4346/4566/5630/
  5865

Deployment & Maintenance

• Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP
  PNP/TR069
• Web Management Portal
• Web-based Packet Dump
• Configuration Export / Import
• Phonebook Import/Export
• Firmware Upgrade
• Syslog

Physical Specifications

• Main LCD x1 - 2.8 Inch (320x240) LCD colour screen
• DSS Key-Mapping LCD x1 - LCD Colour Screen
• Keypad - 38 Keys - including - 4 Soft-Keys, 6 Function Keys, 5 Navigation Keys,12 Standard Phone Digit Keys, 3 Volume Control Keys,Up/Down/Mute(Microphone),1 Hands-Free Key, 6 DSS Keys with Tri-Colour LED,1 Page-Jump/Configuration (PJC) Key
• HD Hands-Free Speaker (0 ~ 7KHz) x1
• HD Hands-Free Microphone (0 ~ 7KHz) x1
• HD Handset (RJ9) x1
• Standard RJ9 Handset Wire x1
• 1.5M CAT5 Ethernet Cable x1, RJ9 Phone Jacket x2, Handset x1, Headphone x1
• RJ45 Ethernet Jacket x2: Network x1 (802.3AF POE Class 2 Enabled), PC x1 (Bridged to Network)
• Main Chipset: Broadcom
• DC Power Input: 5V/1A
