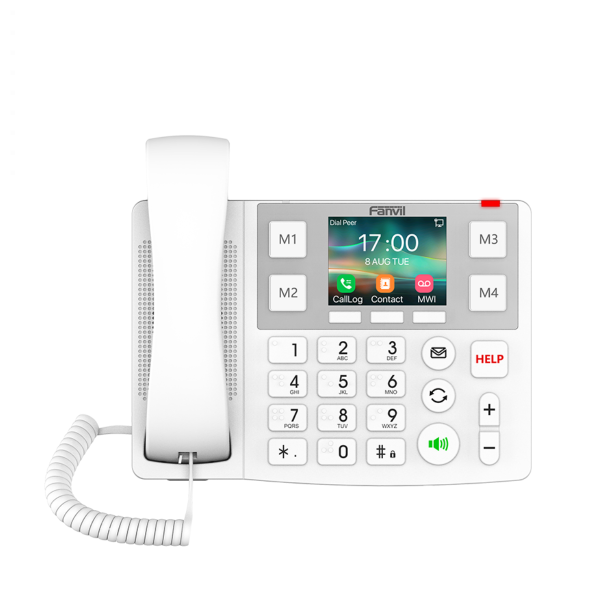

Fanvil X305 Big Button IP Phone

Big Button IP Phone Designed for Nursing Homes and Hospitals, Featuring a 3.5 Inch Colour Screen and Supportiing 2 SIP Lines, PoE (Power over Ethernet) and Braille Digits on the Number Keys

About the Fanvil X305

The Fanvil X305 has built in Dual Band Wi-Fi - 2.4GHz and 5GHz Wi-Fi, and supports Fanvil's Wireless Buttons - KT10 Wireless Button and KT20 Wireless Button provding an efficient and high quality communication experience for users. Its 3.5 Inch Large Colour Screen has a user friendly interface, and its big buttons ensure no dialing mistakes.

Braille Digits

The Fanvil X305 features 10 braille digit on the number keys, enhancing accessibility for users with visual impairments, and ensuring that everyone can make calls with ease.

One Click Call

The portable KT10 Wireless Button and KT20 Wireless Button provide users with 24/7 protection. One click call for help when you are in an emergency situation.

^{*KT10 and KT20 Wireless Buttons are a Separate Purchase and are not Included}

Speed Dial Buttons

The Fanvil X305 is equipped with four speed dial buttons that support image customisation for quick contact access. With personalised number settings, one click dialing is enabled without the need to memorize phone numbers.

Dual Band Wi-Fi

Connect easily to 2.4GHz or 5GHz Wi-Fi, no need for messy cables.

Features

• 3.5 Inch 320 x 240 Colour Screen
• 10 Digit Keys with Braille Dots
• Supports Fanvil's KT10 Wireless Button and KT20 Wireless Button
• Four Speed Dial Buttons that Support Image Customisation for One Click Call
• Supports HD Audio with Codec G.722 and Opus
• Built in Bluetooth 4.2 and 2.4GHz and 5GHz Wi-Fi
• Dual Gigabit Ports, Integrated PoE

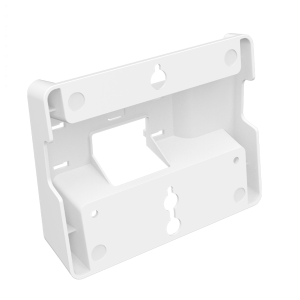

• Desktop or Wall Mount Installation (Wall Mount not Included)

Specifications:

Generic

• 2 SIP Lines, HD Voice, PoE Enables
• 3.5 Inch Colour Screen
• DSS Keys that Support Image Customisation
• Handset / Handsfree / Headset Mode
• Optional External Power Supply (Not Included)

Phone Functions

• Local Phonebook (1000 Entries)
• Remote Phonebook (XML / LDAP, 1000 Entries)
• Call Logs - Dialed, Received, Missed - 600 Entries
• Black / White Call List Filter, Screen Saver
• Voice Message Waiting Indication (VMWI)
• Programmable DSS/Soft Keys
• Network Time Synchronisation
• Supports Bluetooth 4.2
• Built in Wi-Fi - 2.4GHz and 5GHz
• Supports Poly Wireless Headset via Poly APD-80 EHS Cable
• Supports Jabra Wireless Headset (Through Fanvil EHS20 EHS Cable)
• SupportS Recording (Through Server & Flash Driver)
• Action URL / Active URI, uaCSTA

Call Functions

• Call Out / Answer / Reject
• Mute / Unmute (Microphone)
• Call Hold / Resume, Call Waiting
• Intercom, Caller ID Display
• Anonymous Call (Hide Caller ID)
• Call Forward (Always Busy / No Answer)
• Call Transfer (Attended / Unattended)
• Call Park / Call Pick Up - Depending on Server
• Redial, Do not Disturb, Auto Answering
• Voice Message (With Server or Flash Driver)
• Hot Line, Hot Desking
• Phonebook Import / Export
• Firmware Upgrade, Syslog

Audio

• HD Voice Microphone/Speaker (Handset/Handsfree, 0 ~ 7KHz Frequency Response)
• HAC Handset, Wideband ADC/DAC 16KHz Sampling
• Narrowband Codec: G.711a/u, G.723.1, G.726, G.729A/B, iLBC
• Wideband Codec: G.722, Opus
• Full Duplex Acoustic Echo Canceller (AEC)
• Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise Estimation (BNE) / Noise Reduction (NR) / Automatic Gain Control (AGC)
• Packet Loss Concealment (PLC)
• Dynamic Adaptive Jitter Buffer, DTMF: In-Band, Out-of-Band (RFC2833/ SIP INFO)
• VQM: Voice Quality Monitoring, Support Sidetone

Physical Specifications

• 3.5 Inch LCD - 320 x 240 Colour Screen
• Up to 10 Wireless Emergency Buttons are Supported
• Keypad - 4 DSS Keys, 3 Soft Keys, 3 Function Keys - MWI, Redial, HELP, 10 Standard Phone Digit Keys, 2 Volume Control Keys - Up / Down, 1 Handsfree Key
• HD Handset, 1 x Security Slot
• Wall Mountable or Desk Mountable (Wall Mount not Included)

Package Contents

• Fanvil X305 IP Phone
• Handset, Curly Cord
• Desk Stand
• Ethernet Cable
• Quick Installation Guide
