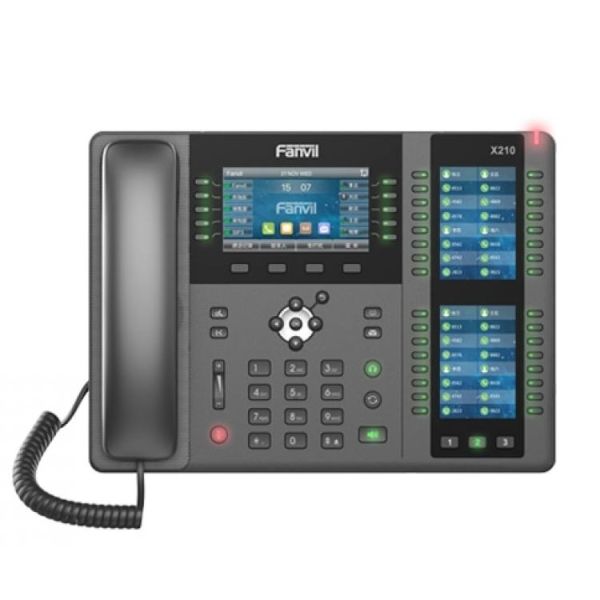

Fanvil X210 High-End Enterprise IP Phone

Fanvil X210 High-End Enterprise IP Phone

20 Line IP Phone with Wi-Fi Connectivity & Built-In Bluetooth - Delivering Convenience and Productivity

The Fanvil X210 is a high end Enterprise IP Phone for users needing access to flexible and advanced features to handle high to medium call volumes in their daily work.

Featuring 10 DSS Keys on a 4.3 Inch Colour Display, Up to 96 DSS Keys (32 Physical) on 2 x 3.5 Inch Side Colour Displays, the Fanvil X210 has up to 106 DSS Keys in total to set for BLF, Speed Dial or Group Broadcasting Function.

The Fanvil X210 has many features such as HD Audio, EHS Support, Dual Gigabit, PoE, IP Camera/SIP Door Phone Integration, delivering vast productivity with these advanced features. Built in Bluetooth and Wi-Fi Connectivity allows users multiple connectivity options.

4.3 Inch Main Colour Display & 2 x 3.5 Inch Side Colour Displays for DSS Keys

Elegantly designed and featuring a large 4.3 Inch High Resolution Colour Display and two convenient 3.5 Inch Side Colour Displays - Using the X210 is more intuitive than ever. No need to add external Expansion Modules. With three page Switch Buttons, the side displays allow up to 96 DSS Keys to be set (32 Physical), and plus 10 DSS Keys on the main display, up to 106 DSS Keys are available in total for BLF, Speed Dial and Group Broadcasting Functions.

For better user experience the Foot Stand has two adjustable angles - 50 Degrees and 40 Degrees - To Suit the Users Requirements.

HD Audio for Speakerphone and Handset

Newly added support for Opus amd a large audio cavity brings abundant, strong low frequency effect. The Speakerphone adopts full net coverage, delivering Crystal Clear, Life-Like Voice Communication.

Rich Extension Function

The X210 offers a variety of connections including Wi-Fi (Via Wi-Fi Dongle), Integrated Bluetooth, EHS Headset, USB Port for charging Smartphones or other Devices. Two Gigabit Ports allow users to connect their Desktop Computers or Laptops to the Phone, with no need for extra cabling.

Deliver HD Video Call With IP Camera/SIP Video Door Integration

The X210 is equipped with Video Codec H.264, enabling users to integrate with their IP Camera or Fanvil SIP Video Door Phone, Allowing Two Way Talk with Visitors as well as unlocking the door from the X210 IP Phone.

Highlights and Overview of the Fanvil X210 Features

• 20 SIP Lines, 3 Way Conferencing, Hotspot
• HD Audio on Speakerphone and Handset
• 4.3 Inch Main Colour Display
• Built-In Bluetooth
• 2 x 3.5 Inch Side Colour Displays for DSS Keys
• Up to 106 DSS Keys (42 Tri-Coloured Physical Keys)
• Dual Gigabit Ports, Integrated PoE
• Wi-Fi Connectivity Via Wi-Fi Dongle
• Supports EHS Headset
• Video Codec H.264 Support for Receiving Video Calls
• Stand With Two Adjustable Angles of 40 Degrees and 50 Degrees
• Compatible with Major Platforms Such as 3CX, Asterisk, Broadsoft, Metaswitch and Avaya Etc

Generic

• 20 SIP Lines
• Support Receiving Video Call
• PoE Enabled
• 3 LCD's (Main & DSS)
• Handset / Hands-Free / Headset Mode
• Intelligent DSS Keys
• Optional External Power Supply (Not Included)

Phone Features

• Local Phonebook - 2000 Entries
• Remote Phonebook (XML/LDAP, 2000 Entries)
• Call Logs - In/Out/Missed, 1000 Entries
• Black/White List Call Filtering
• Screen Saver
• Voice Message Waiting Indication (VMWI)
• Programmable DSS/Soft Keys
• Network Time Synchronisation
• Built in Bluetooth 2.1 - Supports Bluetooth Headset
• Supports Wi-Fi Dongle
• Supports Plantronics Wireless Headset - Through Plantronics APD-80 EHS Cable
• Supports Jabra Wireless Headset - Through Fanvil EHS20 Cable
• Supports Recording - Through Flash Drive or Server Recording
• Action URL / Active URI
• uaCSTA

Call Features

• Call Out / Answer / Reject
• Mute / Unmute (Microphone)
• Call Hold / Resume
• Call Waiting
• Intercom
• Caller ID Display
• Speed Dial
• Anonymous Call (Hide Caller ID)
• Call Forwarding (Always/Busy/No Answer)
• Call Transfer (Attended/Unattended
• Call Parking/Pick Up (Depending on Server)
• Redial
• Do Not Disturb
• Auto Answering
• Voice Message (On Server)
• 3 Way Conference
• Hot Line Hot Desking

Video Features

• Video Codec - H.264
• Video Call Resolution - QCIF / CIF / VGA

Audio Features

• HD Voice Microphone / Speaker (Handset/Handsfree, 0 ~ 7KHz Frequency Response)
• HAC Handset
• Wideband ADC/DAC 16KHz Sampling
• Narrowband Codec - G.711a/u, G.723.1, G.726-32K, G.729AB, AMR, iLBC
• Wideband Codec - G.722, AMR-WB, Opus
• Full-duplex Acoustic Echo Canceller (AEC)
• Voice Activity Detection (VAD) / Comfort Noise Generation (CNG)/ Background Noise Estimation (BNE) / Noise Reduction (NR)
• Packet Loss Concealment (PLC)
• Dynamic Adaptive Jitter Buffer up to 300ms
• DTMF - In-Band, Out-of-Band – DTMF-Relay (RFC2833) / SIP INFO

Networking

• Physical -10/100/1000 Mbps Ethernet, Dual Bridged Port for PC Bypass
• IP Mode - IPv4/IPv6/IPv4&IPv6
• IP Configuration - Static / DHCP / PPPoE
• Network Access Control: 802.1x
• VPN - L2TP / OpenVPN
• VLAN
• LLDP
• QoS
• RTCP-XR(RFC3611),VQ-RTCPXR(RFC6035)

Protocols

• SIP2.0 over UDP/TCP/TLS
• RTP/RTCP/SRTP
• STUN
• DHCP
• IPv6
• LLDP
• PPPoE
• 802.1x
• L2TP
• OpenVPN
• SNTP
• FTP/TFTP
• HTTP/HTTPS
• TR-069

Deployment and Maintenance

• Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCPOPT66/SIP PNP/TR069
• Web Management Portal
• Web-based Packet Dump
• Configuration Export / Import
• Phonebook Import/Export
• Firmware Upgrade
• Syslog

Physical Specifications

• Main LCD x 1 - 4.3 Inches (480 x 272) Colour LCD Screen
• DSS Key Mapping LCD x 2 - 3.5 Inch (320 x 480) Colour LCD Screen
• Keypad - 77 Keys - Including 4 Soft Keys, 6 Function Keys (Hold, Call Forward, Phonebook, MWI, Headset, Redial), 4 Navigation Keys, 1 OK Key, 1 Return Key, 12 Standard Phone Digit Keys, 3 Volume Control Keys - Up/Down/Mute (Microphone)
• 1 Handsfree Key
• 42 DSS Keys with Tri-Colour LED's
• 3 Page Switch (PS) Key
• USB 2.0 Port - Standard A, Connect with Wi-Fi USB Dongle
• Power Consumption - PoE - 2.6~ 9W
