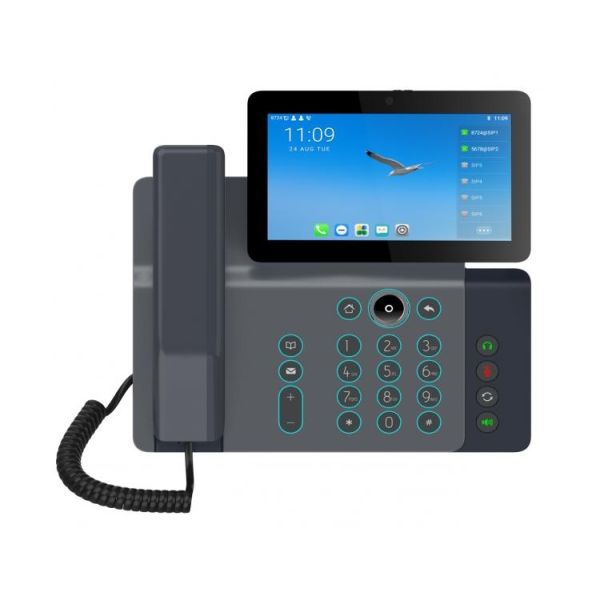

Fanvil V67 - Smart Video Touchscreen IP Phone

About the Phone

The Fanvil V67 is more than an efficient telephone, but also a delicate work of art, which provides a more intelligent and elegant office operation experience for executives, managers and teleworkers. With a brand new design, the V67 features an adjustable Touchscreen and a Keypad with a colorful light effect that improve the beauty and comfort of office desktop.

Antibacterial Surface Protection

The shell of the Handset and Keypad is made of antibacterial material, this can effectively protect against bacteria, its safer and more hygienic for users.

Adjustable Big Screen, Enjoy the View

The 7 Inch touch colour screen with high resolution (1024 x 600) can be adjusted according to the needs of environments and angles of the scene, bringing the ultimate visual experience.

Cool Lighting Colour - Show off your Keyboard

Inspired by the interior of high end cars, the keypad features RGB LED lights that can be personlised. The V67 greatly improves work efficiency.

Crystal Clear Audio - Hear Every Detail

The V67 supports wideband audio codec Opus and G.722, whilst being coupled with Noise Reduction technologies and Full Duplex AEC, that bring an immersive listening experience.

High Definition Video - Catch Every Detail

The Fanvil V67 has a built in 5 Mega Pixel HD Camera (Supporting a Privacy Cover), it supports video codec H.264 and 1080P, Two Way Video Call whilst bringing the premium office experience.

Built in Wi-Fi and Bluetooth

The V67 supports10 party audio conference (including two way video calls Built in 2.4G/5G Wi-Fi and Bluetooth 4.2 the V64 brings wireless office experience.

Android 9.0 OS Support

Based on Android 9.0 Operating System the Fanvil V67 provides a comprehensive SDK (Developer Kit) to meet the customisation needs of industry applications and secondary development.

Link with Security Products

The V67 is compatible with SIP Standard and major mainstream platforms, V67 can be easily customised into various solutions for reducing investment.

Highlights

• Antibacterial Material of the Handset and Keypad Surface Effectively Inhibits more than 99.5% of Bacteria Growth
• 7 Inch Adjustable Touch Screen (0° to 40°) for Different Lighting Environments
• A Cool Lighting Keypad, Can be set as Status Indicators
• Built in 5MP 1080p Camera with a Privacy Cover
• Supports 10 Party Audio Conferencing (Including 2 Party Video Calls) and 3 Party Video Conferencing
• Android 9.0 Operating System, Meeting the Customisarion needs of Industry Applications and Secondary Development
• Available to Link with Security Products, can be Easily Cistomised into Various Security Solutions for Reducing Investment
• Built in 2.4GHz/5GHz Wi-Fi and Bluetooth 4.2, Allowing more Flexibility
• Two Installation Methods - Desktop Stand and Wall Mountable - Wall Mount not Included
• Up to 116 DSS Keys. Every DSS Key can be set as Line/BLF/Speed Dial Key Etc

Generic

• 20 SIP Lines
• HD Voice | PoE Enabled
• Supports HD Video Call (720p/1080p
• 75 Inch (1024 x 600) Colour Touch Screen
• Handset / Handsfree / Headset Mode
• Intelligent DSS Keys (Virtual Buttons)
• Desktop Stand / Wall Mountable - Wall Mount not Included
• Power Supply is an Optional Extra and Not Included - If PoE is not Available the Power Supply will need to be Purchased

Operating System

• Android 9.0 OS with Higher Security and Better Compatibility
• Built in Applications - Files, Calendar, Gallery, Browser, Email, Calculator, Notepad, Sound Recorder, Clock, Video, Music
• Supports 3rd Party Applications
• Secondary Development of API

Phone Features

• Local Phonebook (2000 Entries)
• Remote Phonebook (XML/LDAP, 2000 Entries)
• Call Logs (In/Out/Missed, 1000 Entries
• Blocked List / Allowed List
• Screensaver
• Voice Message Waiting Indication (VMWI)
• Programmable DSS/Soft Keys
• Network Time Synchronisation
• Built in Bluetooth 4.2 - Supports Bluetooth Headset / Paring Mobile Devices
• Built in Wi-Fi - 2.4Ghz, 802.11 b/g/n, 5GHz, 802.11 a/n/ac
• Miracast
• Support Recording
• Action URL / Active URI
• uaCSTA
• Audio/Video Recording
• SIP Hotspot
• Multicast, Action Plan, Group Listening

Call Features

• Call Out / Answer | Reject
• Mute / Unmute / (Microphone)
• Call Hold / Resume
• Call Waiting, Speed Dial
• Intercom, Caller ID Display
• Anonymous Call (Hide Caller ID)
• Call Forwarding (Always / Busy / No Answer)
• Call Transfer (Attended/Unattended
• BLF, Redial, Do not Disturb
• Ten Way Audio/Video Mixed Conferencing (Up to Two Video Calls)
• Three Way Audio Conferencing
• Call Parking/Pick-Up (Depending on Server)
• Auto Answering
• Voice Message (With Server)
• Hotline, Hotdesking

Video

• Video Decoding - H.264
• Video Call Resolution - CIF/VGA/4CIF/720P/1080P
• Image Format - JPEG/PNG/BMP
• Video Format - MP4
• Bandwidth Selection - 64kbps~4Mbps
• Frame Rate Selection - 5~30fps
• Video from Remote Site can be Displayed in Full Screen
• Internal HD Camera:- 5 Mega Pixel, 1080P @ 30fps, Mechanical Shutter for Privacy
• Field of View (FOV): 82°
• Video Preview

Audio

• HD Voice Microphone / Speaker (Handset/Handsfree, 0 ~ 7KHz Frequency Response)
• HAC Handset
• Wideband ADC/DAC 16Khz Sampling
• Narrowband Codec - G.711a/u, G.723.1, G.726, G.729A/B, iLBC
• Wideband Codec - G.722, Opus
• Full Duplex Acoustic Echo Canceller (AEC)
• Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise Estimation (BNE) / Noise Reduction (NR) / Automatic Gain Control (AGC)
• Packet Loss Concealment (PLC)
• Dynamic Adaptive Jitter Buffer
• DTMF - In Band, Out of Band (RFC2833/ SIP INFO)

Network

• Physical - 10/100/1000 Mbps Ethernet, Dual Bridged Port for PC Bypass
• IP Mode - IPv4/IPv6/IPv4&IPv6
• IP Configuration - Static IP / DHCP / PPPoE
• Network Access Control - 802.1x
• VPN - OpenVPN / L2TP
• VLAN, LLDP, CDP
• QoS

Protocols

• SIP2.0 Over UDP/TCP/TLS
• RTP/RTCP/SRTP
• STUN, DHCP, LLDP, PPPoE | 802.1x
• OpenVPN (Requires Third Party App Support)
• SNTP, FTP/TFTP, HTTP/HTTPS, TR-069
• AES128 & AES256

Deployment and Management

• Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIPPNP/TR-069
• Supports the Third Party Communication APP
• Web Management Portal
• Web Based Packet Dump
• Configuration Export / Import
• Phonebook Import/Export
• Firmware Upgrade
• Syslog

Physical Specifications

• LCD - 7 Inch (1024 x 600) Colour Touch Screen
• RGB LEDs of Keys (Support Colorful Light Effect)
• Keypad - 27 Keys including - 5 Function Keys (Contact, MWI, Mute, Headset, Redial), 4 Navigation Keys, 1 OK Key, 1 Return Key.1 Home Key, 12 Standard Phone Digit Keys, 2 Volume Control Keys, Up/Down, 1 Handsfree Key
• HD Handset (RJ9) x 1
• Standard RJ9 Handset Wire x 1
• 1.5M CAT 5.E Ethernet Cable x 1
• Desk Stand x 1
• RJ9 Port x2 - Handset x1, Headset x1
• RJ45 Port x2 - Network x1, PC x1 (Bridged to Network)
• USB 2.0 Port x` - Standard A, Connect with Flash Driver & USB Headset
• Security Lock Port x1
• Power - DC5V/1A or PoE
• Installation - Desktop Stand or Wall Mount (Wall Mount not Included)

Package Contents

• Fanvil V67 IP Phone
• Handset
• Handset Cord
• Desk Stand
• Ethernet Cable
• Quick Installation Guide
