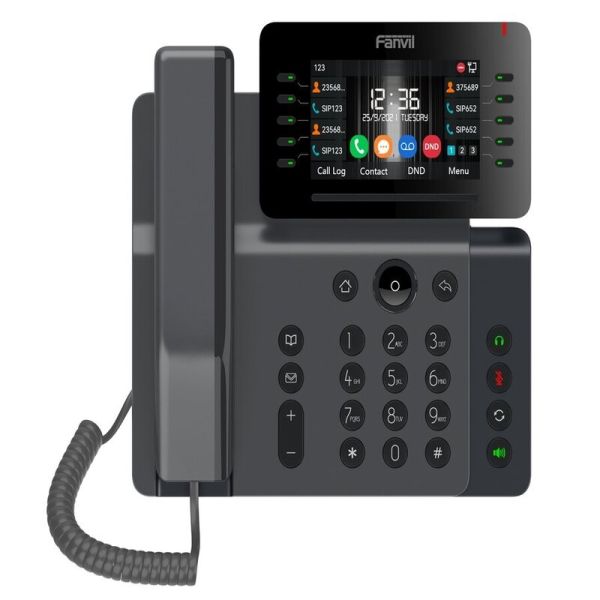

Fanvil V65 - Prime Business IP Phone

About the Phone

The Fanvil V65 is more than an efficient Telephone, but a delicate work of art that provides a smart and smooth business communication experience for executives and managers. The Prime Business Phone features an Adjustable Screen, Built in Bluetooth 4.2 and 2.4G/5G Wi-Fi. The V65 is a great combination of elegant outside and powerful inside.

Antibacterial Surface Protection

The shell of the Handset and Keypad is made of antibacterial material which can effectively protect against bacteria. It is safer and much more hygienic, ensuring the health of users.

Adjustable Big Screen - Enjoy Your View

The 4.3 inch colour screen on the Fanvil V65 can be adjusted from 0° to 40° to adjust to the needs of users in different lighting environments.

Crystal Clear Audio - Hear Every Detail

The V65 supports wideband audio codec Opus and G.722, whilst being coupled with Noise Reduction technologies and Full Duplex AEC, that bring an immersive listening experience. It is able to receive video calls with video codec H.264.

6 Party Conference - Efficient Collaboration

The Fanvil V65 supports 6 Way Audio Conference, and its conference management mode enables you to manage the conference efficiently, such as hold, remove and mute the call if the participants.

Built in W-Fi and Bluetooth

With built in 2.4G/5G Wi-Fi and Bluetooth 4.2, the V65 brings a wireless office experience and provides high scalability with USB 2.0 Interface.

Link with Security Products

The V65 is compatible with SIP Standard and major mainstream platforms, V65 can be easily customised into various solutions for reducing investment.

Fanvil V65 Highlights

• Antibacterial Material on the Handset and Keypad Surface Effectively Inhibit more that 99.5% of Bacteria Growth
• 4.3 Inch Adjustable Screen (0° to 40°) for Different Lighting Environments
• Video Codec H.264 Enables Video Calls to be Received
• Link with Security Products - Can be Easily Customised into Various Security Solutions
• Supports Audio Codec G.722 and Opus, HD Audio on Speaker and on Handset
• Supports 6 Party Local Conference
• Built in 2.4GHz/5G Wi-Fi and Bluetooth 4.2 - Allowing More Flexible Connectivity
• Two Installation Methods - Desktop and Wall Mount (Wall Mount is not Included)
• Up to 45 DSS Keys - Every DSS Key can be Set as Line / BLF / Speed Dial etc

Generic

• 20 SIP Lines, HD Voice
• Video Codec H.264 Enables Video Calls to be Received
• PoE Enabled
• 4.3 Inch (480 x 272) Colour Screen
• Handset / Handsfree / Headset Mode
• Intelligent DSS Keys
• Desktop or Wall Mountable (Wall Mount not Included)
• Optional External Power Supply

Phone Features

• Local Phonebook (2000 Entries)
• Remote Phonebook (XML/LDAP, 2000 Entries)
• Call Logs (In / Out / Missed, 1000 Entries)
• Blocked List / Allowed List
• Screen Saver
• Voice Message Waiting Indication (VMWI)
• Programmable DSS / Soft Keys
• Network Time Synchronisation
• Built in Bluetooth 4.2 - Supports Bluetooth Headset / Pairing Mobile Devices
• Built in Wi-Fi - 2.4GHz, 802.11 b/g/n, 5GH, 802.11 a/n/ac
• Supports Plantronics Wireless Headset Via APD-80
• Supports Jabra Wireless Headset Via Fanvil EHS20
• Supports Recording Through Server
• Action URL / Active URI
• uaCSTA, SIP Hotspot
• Multicast, Acrion Plan, Group Listening

Call Features

• Call Out | Answer / Reject
• Mute / Unmute (Microphone)
• Call Hold / Resume
• Call Waiting / Intercom
• Caller ID Display, Speed Dial
• Anonymous Call (Hide Caller ID)
• Call Forwarding (Always / Busy / No Answer)
• Call Transfer (Attended / Unattended)
• Call Parking / Pick-Up (Dependent on Server)
• Redial, Do not Disturb
• Auto Answering
• Voice Message (With Server)
• 6 Way Conference | Hotline
• Hot Desking | BLF

Audio

• HD Voice Microphone / Speaker (Handset / Handsfree  0 ~ 7KHz Frequency Response)
• HAC Handset
• Wideband ADC / DAC 16KHz Sampling
• Narrowband Codec - G.711a/u, G.723.1, G.726, G.729A/B, iLBC
• Wideband Codec - G.722, Opus
• Full Duplex Acoustic Echo Canceller (AEC)
• Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise Estimation (BNE) / Noise Reduction (NR) / Automatic Gain Control (AGC)
• Packet Loss Concealment (PLC)
• Dynamic Adaptive Jitter Buffer
• DTMF - In Band, Out of Band (RFC2833/ SIP INFO)
• VQM - Voice Quality Monitoring

Video

• Video Decoding - H.264
• Video Call Resolution - QVGA / CIF / VGA / 4CIF / 720P / 1080P

Network

• Physical - 10/100/1000 Mbps Ethernet, Dual Bridged Port for PC Bypass
• IP Mode - IPv4/IPv6/IPv4&IPv6
• IP Configuration - Static IP / DHCP / PPPoE
• Network Access Control - 802.1x
• VPN - L2TP / OpenVPN
• VLAN, LLDP
• CDP, QoS
• RTCP-XR (RFC3611), VQ-RTCPXR (RFC6035

Protocols

• SIP2.0 over UDP/TCP/TLS
• RTP/RTCP/SRTP
• STUN | DHCP | CDP | LLDP | PPPoE
• 802.1x
• OpenVPN
• SNTP
• FTP/TFTP
• HTTP/HTTPS
• TR-069
• AES128 & AES256

Deployment and Management

• Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIPPNP/TR-069
• Web Management Portal
• Web Based Packet Dump
• Configuration Export / Import
• Phonebook Import/Export
• Firmware Upgrade
• Syslog

Physical Specifications

• LCD - 4.3 Inch (480 x 272) Colour Screen, IPS
• Keypad - 41 Keys Including - 10 DSS Keys with LED Idicator Light, 6 Function Keys - Contact, Hold, MWI< Mute, Headset, Redial, 4 Soft Keys, 4 Navigation Keys, 1 OK Key, 1 Return Key, 12 Standard Phone Digit Keys, 2 Volume Control Keys, Up / Down, 1 Handsfree Key
• HD Handset (RJ9) x1
• Standard RJ9 Handset Wire x 1
• 1.5M CAT 5.E Ethernet Cable x 1
• Desk Stand x 1
• Status Indicator Light x 1 (Red)
• RJ9 Port x2 - Handset x1, Headset x1
• RJ45 Port x2 - Network x1, PC x1 (Bridged to Network)
• USB 2.0 Port x` - Standard A, Connect with Flash Driver & USB Headset
• Security Lock Port x1
• Installation - Desktop Stand or Wall Mount (Wall Mount not Included)

Package Contents

• Fanvil V65 IP Phone
• Handset
• Handset Cord
• Desk Stand
• Ethernet Cable
• Quick Installation Guide
