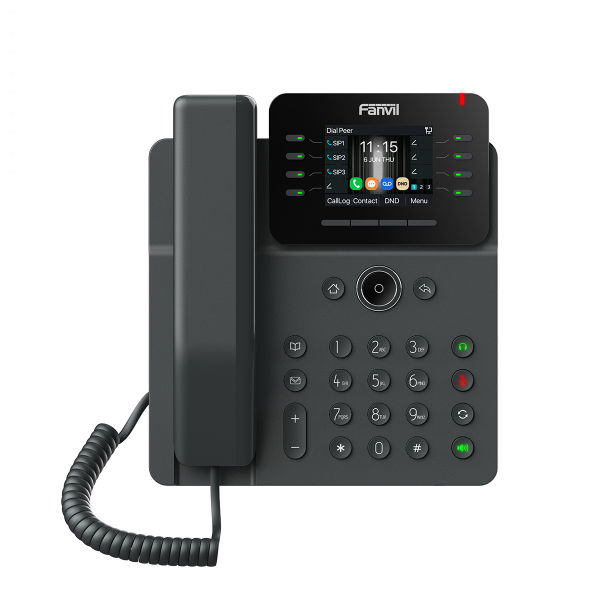

Fanvil V62G Prime Business IP Phone - Dark Grey

A Prime Business IP Phone with a 2.8 Inch Colour Screen and 12 SIP Lines

About the Fanvil V62G

The Sleek and Intuitive Fanvil V62G is a Business IP Phone, boasting a vibrant 2.8 inch HD Colour Screen and capacity for 12 SIP Lines.

Handle multiple calls simultaneously with ease, and enjoy high definition sound on every conversation.

6 Way Audio Conferencing enables the Fanvil V62G to seamlessly handle your calls and meetings, Whether you're managing a large team or handling client enquiries, V62G IP Phone offers exceptional features to streamline your workflow.

The V62G is compatible with SIP standard and major mainstream platforms, can easily be customised into various solutions - reducing investment.

Integrated Hall Switch

• Determine Whether the Handset is Properly Placed via Magnetic Induction
• No Popping Noise when Picking up or Hanging up the Handset
• More Durable Compared to the Traditional Hook Switch

Highlights

• 2.8 Inch Colour Screen, Supports 6 Way Audio Conference
• Supports Audio Codec G.722 and Opus, HD Audio on Speakerphone and Handset
• Can be Linked with Security Products and can be Easily Customised into Various Security Solutions
• Dual Gigabit Ports, Integrated PoE
• Up to 21 DSS Keys, Every DSS Key can be set as Line / BLF / Speed Dial Key

Generic Features

• Handset with Hall Effect Sensor Switch
• Desktop Stand / Optional Wall Mount (Wall Mount not Included)
• Handset / Handsfree / Headset Mode
• Intelligent DSS Keys
• Dual Gigabit Ports, PoE Enabled
• HD Voice, 12 SIP Lines, 2.8 Inch (320 x 240) Colour Screen

Phone Features

• Local Phonebook (1000 Entries)
• Remote Phonebook (XML / LDAP)
• Call Logs (Received / Dialed / Missed, 1000 Entries)
• Blocked List / Allowed List
• Screen Saver, Voice Message Waiting Indication (VMWi)
• Programmable DSS / Soft Keys
• Network Time Synchronisation
• Supports Poly Wireless Headset via Poly APD-80 EHS Cable
• Supports Jabra Wireless Headset via Fanvil EHS20 EHS Cable
• Supports Recording (Through Server)
• Action URL / Active URI
• uaCSTA, Dial Plan, SIP Hotspot
• Customise Ringtone, Multicast
• Action PLan, Group Listening

Call Features

• Call Out / Answer / Reject
• Mute / Unmute / (Microphone)
• Call Hold / Resume
• Call Waiting, Speed Dial
• Intercom, Caller ID Display
• Anonymous Call (Hide Caller ID)
• Call Forwarding (Always / Busy / No Answer)
• Call Transfer (Attended/Unattended
• BLF, Redial, Do not Disturb
• Call Parking/Pick-Up (Depending on Server)
• Auto Answering
• Voice Message (With Server)
• 6 Way Conference
• Hot Line, Hot Desking
• Call Back, IP Direct Call

Audio

• HD Voice Microphone / Speaker (Handset/Handsfree, 0 ~ 7KHz Frequency Response)
• HAC Handset
• Wideband ADC/DAC Sampling
• Narrowband Codec - G.711a/u, G.723.1, G.726, G.729A/B, iLBC
• Wideband Codec - G.722, Opus
• Full Duplex Acoustic Echo Canceller (AEC)
• Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise Estimation (BNE) / Noise Reduction (NR) / Automatic Gain Control (AGC)
• Packet Loss Concealment (PLC)
• Dynamic Adaptive Jitter Buffer
• DTMF - In Band, Out of Band (RFC2833/ SIP INFO)
• VQM - Voice Quality Monitoring

Network

• Physical - 10/100/1000 Mbps Ethernet, Dual Bridged Port for PC Bypass
• IP Mode - IPv4/IPv6/IPv4&IPv6
• IP Configuration - Static IP / DHCP / PPPoE
• Network Access Control - 802.1x
• VPN - L2TP / OpenVPN
• VLAN, LLDP
• CDP, QoS
• RTCP-XR (RFC3611), VQ-RTCPXR (RFC6035

Protocols

• SIP2.0 over UDP/TCP/TLS
• DNS A/SRV/NAPTR
• RTP/RTCP/SRTP
• STUN, DHCP, CDP, LLDP, PPPoE
• 802.1x, OpenVPN
• SNTP, FTP/TFTP
• HTTP/HTTPS, TR-069
• AES128 & AES256

Deployment and Management

• Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIPPNP/TR-069
• Web Management Portal
• Web Based Packet Dump
• Configuration Export / Import
• Phonebook Import/Export
• Firmware Upgrade
• Syslog

Physical Specifications

• LCD - 2.8 Inch (320 x 240) Colour Screen
• Keypad - 39 Keys Including -  7 DSS Keys & 1 Page Key with LED, , 5 Function Keys (Contact, Hold. MWI, Mute, Headset, Redial), 4 Soft Keys, 4 Navigation Keys, 1 OK Key, 1 Return Key. 12 Standard Phone Digit Keys, 2 Volume Control Keys, Up/Down, 1 Handsfree Key
• 1 x Security Slot
• PoE or Optional Powe Supply (Not Included)

Package Contents

• Fanvil V62G IP Phone
• Handset & Curly Cord
• Ethernet Cable, Stand
• Quick Installaton Guide
