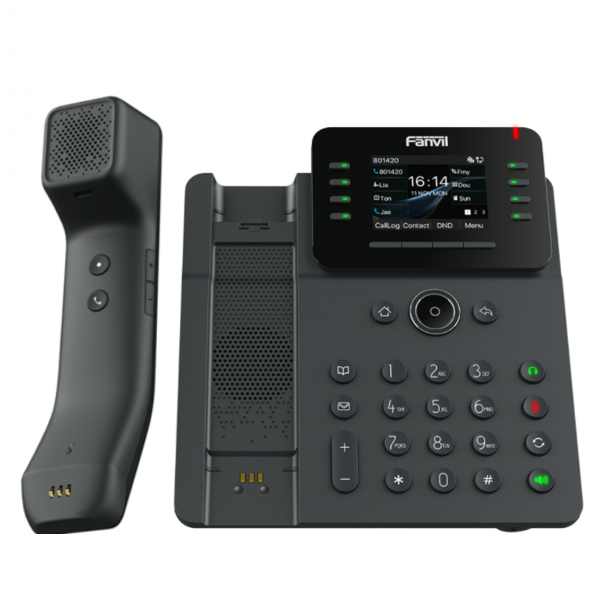

Fanvil V62 Pro Prime Business IP Phone

 An Essential Business IP Phone with a 2.8 inch Colour Screen and Enriched Wireless Bluetooth Handset with Programmable Keys

About the V62 Pro

The Fanvil V62 Pro is a cutting edge Business IP Phone that boosts productivity with its HD Colour Screen and customisable Bluetooth Wireless Handset. The Bluetooth Wireless Handset is interchangeable across the Fanvil V Pro Series range, these Handsets offer unmatched convenience and flexibility. With 12 SIP Lines, 6 Way Conferencing, and Dual Gigabit Ports. The Fanvil V62 Pro deliver a powerful communication solution for today's demanding work environments.

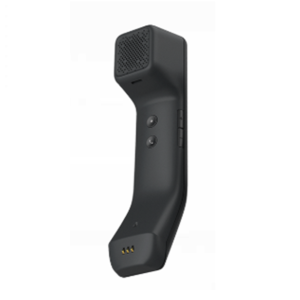

Bluetooth Wireless Handset:

Features

• Auto Pairing - Simply Place the Bluetooth Handset on the Phone and it Will Automatically Pair to the Phone
• Search Function - Features a Search Button and a 10 Metre Seamless Connection - If you are Unable to Locate the Handset Select Search & the Handset will Flash Green & Blue Alternatively & Beep
• Programmable Keys - Keys can be Programmed - Enhancing Efficiency

HD Colour Screen

The Fanvil V62 Pro seamlessly adopts the sleek design of the Fanvil V Series. Its 2.8 Inch HD Colour Screen and 21 DSS Keys with LED Indicators create a user friendly interface.

6 Way Audio Conference

The Fanvil V62 Pro supports 6 Way Audio Conferencing, the Conference Management Mode enables Conferences to be managed efficiently. Hold, remove and mute the call of participants easily.

Integrated Hall Switch

The Fanvil V62 Pro has been designed with an Integrated Hall Switch. Ensure that the Handset is placed properly on the hook through magnetic induction. No popping noise can be heard when the Handset is lifted or replaced back on the hook. The Hall Switch is more durable than an traditional Hook Switch.

 Features

• Bluetooth Handset with Programmable Keys - Supports Auto Pairing and Locating
• 2.8 Inch - 320 x 240 HD Colour Screen
• 12 SIP Lines, Up to 21 DSS Keys - DSS Keys can be Set as Line Keys / BLF Keys and Speed Dial Keys
• Supports 6 Way Audio Conference
• Two Installation Methods - Desktop Stand and Wall Mountable
• Fast Ethernet - 10/100/1000Mbps Ethernet, Integrated PoE
• Available to Link with Security Products, Can be Easily Customised into Various Security Solutions - Reducing Investment

Specifications:

Generic

• Handset / Handsfree / Headset Mode
• PoE Enabled, Intelligent DSS Keys
• 2.8 Inch - 320 x 240 Colour Screen
• 12 SIP Lines, HD Voice
• Desktop Stand / Wall Mount (Optional)
• Hall Switch Handset
• Bluetooth Wireless Handset

Phone Features

• Local Phonebook (1000 Entries)
• Remote Phonebook (XML / LDAP)
• Call Logs In / Out / Missed - 1000 Entries
• Blocked / Allowed List - 1000 Entries
• Screen Saver, SIP Hotspot
• Voice Message Waiting Indication (VMWI)
• Programmable DSS / Soft Keys
• Network Time Synchronization
• Support Recording (Via Server)
• Supports Poly Wireless Headset (Through Poly APD-80 EHS Cable)
• Supports Jabra Wireless Headset (Through Fanvil EHS20 EHS Cable)
• Action URL / Active URI, uaCSTA, Dial Plan
• Personalised Ringtone Settings
• Multicast / Action Plan / Group Listening

Audio

• HD Voice Microphone / Speaker (Handset/Handsfree, 0 ~ 7KHz Frequency Response)
• HAC Handset
• Wideband ADC/DAC 16Khz Sampling
• Narrowband Codec - G.711a/u, G.723.1, G.726, G.729 G.729A/B, G.729B, G.729AB, iLBC
• Wideband Codec - G.722, Opus
• Full Duplex Acoustic Echo Canceller (AEC)
• Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise Estimation (BNE) / Noise Reduction (NR) / Automatic Gain Control (AGC)
• Packet Loss Concealment (PLC)
• Dynamic Adaptive Jitter Buffer
• DTMF - In Band, Out of Band (RFC2833/ SIP INFO)
• VQM - Voice Quality Monitoring

Network

• Physical - 10/100/1000 Mbps Ethernet, Dual Bridged Port for PC Bypass
• IP Mode - IPv4/IPv6/IPv4&IPv6
• IP Configuration - Static IP / DHCP / PPPoE
• Network Access Control - 802.1x
• VPN - OpenVPN / L2TP
• VLAN, LLDP, CDP, QoS
• Support SIP Backup Server
• RTCP-XR (RFC3611), VQ-RTCPXR (RFC6035)
• Wi-Fi Security Mode - WPA / WPA2-PSK / 802.X.EAP

Call Features

• Call Out / Answer / Reject
• Mute / Unmute / (Microphone)
• Call Hold / Resume
• Call Waiting, Speed Dial
• Intercom, Caller ID Display
• Anonymous Call (Hide Caller ID)
• Call Forwarding (Always / Busy / No Answer)
• Call Transfer (Attended/Unattended
• BLF, Redial, Do not Disturb
• Call Parking/Pick-Up (Depending on Server)
• Auto Answering
• Voice Message (With Server)
• 6 Way Audio Conferencing
• Hot Line, Hot Desking
• Call Back, IP Direct Dial

Deployment and Management

• Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIPPNP/TR-069
• Web Management Portal
• Web Based Packet Dump
• Configuration Export / Import
• Phonebook Import/Export
• Firmware Upgrade
• Syslog

Physical Specifications

• LCD - 2.8 Inch (320 x 240) Colour Screen
• Keypad - 39 Keys - Including - 7 DSS Keys + 1 Page Key with LED
• 5 Function Keys (Contact / MWI / Mute / Headset / Redial)
• 4 Soft Keys, 4 Navigation Keys / 1 OK Key
• 1 Return Key / 1 Home Key
• 12 Standard Phone Digit Keys
• 2 Volume Control Keys - Up / Down
• 1 Handsfree Key
• Bluetooth Handset (BTH60)
• Bluetooth Handset Status Indicators - 1 x Red / 1 x Green, 1 x Blue

Package Contents

• Fanvil V62 Pro IP Phone
• Bluetooth Handset
• Deskstand
• Network Cable
• Quick Installation Guide
