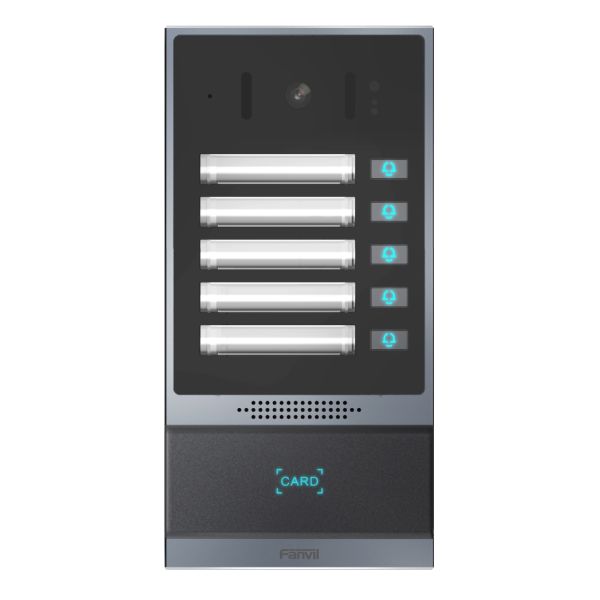

Fanvil i63 - SIP Video Door Phone

Based on SIP and ONVIF protocols,the Fanvil i63 is a Video Door Phone that integrates powerful functionalities of access control, intercom, and security protection. Featuring an aluminum alloy design and 5 Speed Dial Buttons, the i63 delivers a high quality elegant appearance.

With high a protection level of IP66 and IK07, it is waterproof, dust proof and anti vandal proof in most outdoor environments. Fanvil i63 allows users to make audio/video calls via a speed dial button and a 2 Mega Pixel Camera and allows access control by different modes. With rich input and output interfaces, i63 is easy to link with other security devices and customize into various solutions in apartments, commercial buildings, communities and industrial parks.

Elegant and Robust

Designed with aluminium alloy the i63 combines technology and art. The 5 Speed Dial Buttons with Blue Backlight enable users to see clearly, even in low light conditions.

Strong and Durable

Highly dust proof , waterproof anti vandal proof, the i63 has great performance in different outdoor environments. Anti-tamper will alarm and report to the control centre when the cover is opened without authorisation.

Efficient and Convenient

i63 allows users to access control with RFID/IC cards, NFC, Indoor Switch, Remote DTMF and Timed Open Door. It provides clear video image even in dark with an infrared night vision camera.

Thoughtful and Helpful

The i63 is able to be integrated with an induction loop antenna, providing a better experience for users with hearing impairment.

Link with 3rd Party Security Systems

With rich input and output interfaces, the i63 can be connected with 3rd party security products, reducing investment cost and safeguarding the security of communities.

Remote Access with Mobile Phones

Communicate with visitors and easily identify visitors via mobile phone APP. with the one click door opening feature, it saves time and greatly inproves management efficiency.

Highlights

• With a High Protection Level of IP66 and IK07, and a Wide Temperature Range from -40℃ to 70℃, the i63 works Perfectly in most Outdoor Environments
• Open the Door with RFID/IC Card, NFC, Indoor Switch, Remote DTMF and Timed Open Door
• Aluminium Alloy Design & 5 Speed Dial Buttons
• Built in 2 Mega Pixel Wide Angle Camera - 120° (Horizontal), 60° (Vertical), 141° (Diagonal) with an Infrared Night Vision Feature
• Fitted with a Tamper Switch that Detects Unauthorised Opening of the Device Itself
• Compatible with SIP and ONVIF Protocols
• Built in 3 Short Detect Ports and 2 Short Out Control Ports, can be Integrated with an Induction Loop Antenna
• Built in Maximum 128GB Capacity TF Card Slot for Image and Storage
• HD Voice Speech Quality with Built in 2.5W Speaker and Acoustic Echo Canceller

Generic

• 2 SIP Lines
• Video Intercom
• IP Address Announcement in English
• Programmable DSS Keys
• Support for RS485 Port
• Support for Wiegand Port
• Switch Signal Input and Output
• Door Control In and Out
• Support for Line Out for Induction Loop Antenna
• Supports TF Card
• PoE Enabled
• Open the Door Operation - DTMF, RFID Card, NFC, Indoor Switch, Time Open Door
• Supports up to 10,000 RFID Cards
• Supports up to 200,000 Door Open Records

Device Functions

• Auto Answering
• Programmable DSS Keys
• Through Button or Web page Volume Adjustment
• Network Time Synchronisation, Time Plan (Task Management)
• Dynamic Multicast Function, SIP Call Multicast Function
• HTTP API / Action URL / Active URI

Video

• Sensor - 1/2.9” Colour CMOS
• 2 Mega Pixels
• H.264 Video Coding
• Motion Detection
• Resolution - Main Stream - 1080P@30fps, Sub Stream - VGA@30fps
• High Intensity IR LEDs for Picture Lighting During Dark Hours with Internal Light Sensor
• Viewing Angles - 120° (Horizontal), 60° (Vertical), 141° (Diagonal)

Network

• Physical - 10/100 Mbps Ethernet
• IP Mode - IPv4/IPv6/IPv4&IPv6
• IP Configuration - Static IP / DHCP / PPoE
• VPN - L2TP / Open VPN
• VLAN

Protocols

• SIP v1 (RFC2543), v2 (RFC3261) Over UDP/TCP/TLS
• RTP/RTCP/SRTP, STUN, DHCP / IPv6
• PPPoE, L2TP, OpenVPN, SNTP
• FTP/TFTP, HTTP, HTTPS, TR-069

Call Functions

• Call Out / Answer / Reject
• Call Waiting / Intercom, Multicast
• Speed Dial / Anonymous Call (Hide Caller ID)

Audio

• Narrowband Codec - G.711A/U, G.729A/B,iLBC,G.723.1,G.726-32K
• Wideband Codec - G.722, Opus, Full Duplex Hands-free Speakerphone with AEC
• DTMF - In-Band, Out-of-Band (RFC2833 / SIP INFO)

Deployment and Management

• Auto Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIPPNP/TR-069
• Web Management Portal, Web Based Packet Dump
• Configuration Export / Import | Firmware Upgrade / Syslog

Physical Specifications

• Speed Dial Button x5
• RJ45 Port x 1 Connect the Network - PoE Enabled
• Tamper Switch x1
• TF Card Slot x1 - Connect TF Card - Up to 128GB
• RF Card Reader - 1.25KHz & 13.56MHz
• RS845 Support
• PoE Level - 802.3af Class 3

Package Contents

• Fanvil i63 SIP Video Door Phone
• Connector
• Quick Installation Guide
• Mounting Template
• RFID Card x 2
• Screws and Tools
