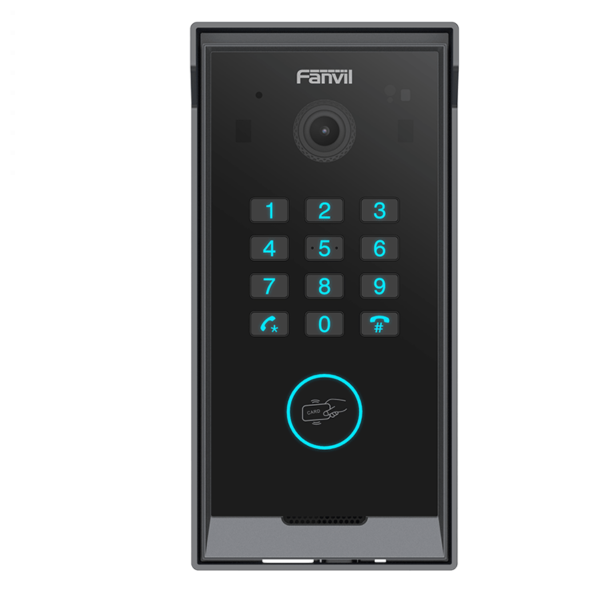

Fanvil i60K - SIP Video Door Phone

A Compact SIP Video and Audio Door Phone with One Speed Dial Button, Numeric Keypad and an IP65 Rating Making it Ideal for Use Indoors and Outdoors

About the Fanvil i60K

The Fanvil i60K is a versatile, compact SIP Video Door Phone suitable for both indoor and outdoor use thanks to its durable IP65 rating. It simplifies access control with multiple entry options, including Passwords, Mobile App, Bluetooth (BLE), IC Cards, Remote DTMF Control, and compatibility with Indoor Switches. Featuring a 2 Megapixel Camera, it facilitates clear audio and video communication. Its support for SIP and ONVIF protocols ensures seamless integration with existing security systems, making it a perfect solution for Villas, Apartments, and Residential Communities. A convenient Speed Dial Button is also included and a Numeric Keypad are also included.

High Protection Level

The Fanvil i60K's robust IP65 Rating protects it from water and dust, its wide temperature range from -40°C to 70°C ensures reliable performance even in harsh outdoor conditions.

The built-in anti-tamper mechanism triggers an alarm and notifies the Control Centre if the cover is opened without authorisation.

Access Control

The Fanvil i60K offers versatile access options, including Password, Mobile App, Bluetooth (BLE), IC Cards, and DTMF Codes. Its Infrared Night Vision Camera ensures clear video images even in low light or unlit environments.

Remote Door Opening

Enable Bluetooth Unlock in the Fanvil Link App and conveniently unlock the door simply by shaking the Phone

Features

• High Protection Level of IP65 and Wide Temperature Range from -40°C to 70°C
• Supports Multiple Access Methods - Password, Mobile App, BLE, IC Cards DTMF, Indoor Switches
• 2 Mega Pixel HDR Wide Angled Camera with Infrared Night Vision
• Compatible with ONVIF Standard Protocol Providing High Flexibility and Compatibility
• Rich Interfaces for Security Device Connectivity
• One Speed Dial Button and Numeric Keypad

Specifications

• Supported Protocols - SIP 2.0 over UDP/TCP/TLS
• Access Methods - Password, IC Card, DTMF Code, Remote Door Opening, BLE
• Interface - Wiegand Input / Output, Short Circuit Input / Output
• Supported Wiegand - 26, 34 bit
• Supported ONVIF Types - Profile S
• Supported Standards - DTMF, IC Card, Indoor Switch, BLE, Cards 13.56 MHz
• Speaking Mode - Full Duplex (High Definifiton)
• Additional - Built-in Relay, Motion Detection, Tamper Alarm, TF Card, Open API
• Body Material - ABS & OC
• Colour - Black Panel, Gunmetal Housing
• Sensor - 1/2.9-inch, CMOS
• Camera - 2 Megapixel, Supports Infrared
• Viewing Angle - 140° (FOV), 100° (Horizontal), 57° (Vertical)
• Output Video - H.264 (Baseline, Main Profile)
• Light Sensitivity - 0.1Lux
• Card Storage - 1,0000
• Power Consumption - PoE:1.63~6.93W, Adapter: 1.51~6.16W
• Power Supply - DC 12V / 1A, PoE 802.3af Class 3
• IP Level - IP65
• Panel Size - 70.7mm x 149.7mm x 30mm (L x W x D)
• Installation - Wall Mount, Rain Cover Included
• Keyboard - 1 Speed Dial Button and Numeric Keypad

Package Contents

• Fanvil i60K SIP Video Door Phone
• Mounting Template
• Bracket, Connector
• Rain Cover
• Cable Outlet Cover
• Quick Installation Guide
