Fanvil i57A - SIP Indoor Station

About the Fanvil i57A

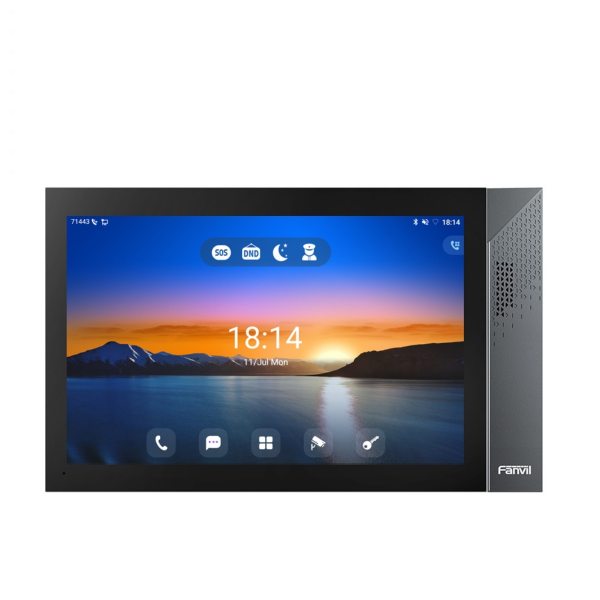

The Fanvil i57A SIP Indoor Station features a 10.1 inch Colour Touch Screen with an intuitive UI. Based on Android 9.0 Operating System it meets industry application customisation needs and secondary development. The i57A features functions like remote door opening and real time monitoring for security devices, the i57A serves as a management assistant for communities, office buildings and more.

Industrial Aesthetic Design

• Simple Colour Palette - Elegant Black and Space Grey
• Big Screen - 10.1 Inch Capacitive Touch Screen
• Top Notch Material - Aluminium and ABS

Colourful Lighting Effect

The i57A supports built in cool lighting effects, which can be changeable according to different status indicators such as ringing, voicemail and missed calls *(Lighting effect needs to be set on the web page).

Powerful Android 9.0 OS

Equipped with Android 9.0 Operating System the i57A easily integrates with third party apps, meeting the customisation needs of industry applications and secondary development.

HD Audio / Video Call

Delivering crystal clear sound and high quality two way handsfree calls, the Fanvil i57A has full screen HD video calls and users can identify the video callers with ease.

Real Time Monitor for Security

Real time monitoring can check the cameras of back gardens, warehouses, driveways and more.

Built in Bluetooth/Wi-Fi

Featuring Bluetooth 5.0 the i57A can transmit data such as music, pictures and videos, it supports flexible wireless connection of built in 2.4G/5G Wi-Fi, delivering a tidy interior and most of all less wiring.

High Scalability with Rich Interfaces

The i57A features rich input and output interfaces, that are easy to connect with other security devices that include Door Phones, Door Bells, Smoke Detectors, Alerters, Gas Leek Alarms and more, and customise them into various solutions.

Highlights

• 10.1 Inch (1280 x 800) Capacitive Colour Touch Screen
• Android 9.0 Operating System, Meeting the Customisation needs of Industry Applications and Secondary Development
• Aluminium Panel Design, Reliable and Durable
• Built in Cool Lighting Effects that can be set as Status Indicators
• Check Real Time Video of Door Phones with H.264 Video Codec and 1080p High Resolution
• HD Voice Speech Quality with Built in 2W Speaker and Acoustic Echo Canceller
• Built in Bluetooth 5.0 and 2.4GHz/5G Wi-Fi
• Supports RS-485, 8 Alarm Input Interfaces and 2 Embedded Relays
• Integrated Micro USB Interface and Maximum 256GB Capacity TF Card Slot
• Supports PoE, Supports Wall Mounted Installation

Generic

• 2 SIP LInes, HD Voice
• PoE, 1 x LCD 10.1 Inch (1280 x 800) Colour Touch Screen
• Optional External Power Supply (Not Included)
• RAM/ROM - 2G/16G

Operating System

• Android 9.0 with Higher Security and Better Compatibility
• Supports 3rd Party Applications
• Secondary Development of API

Device Features

• Local Phonebook (1000 Entries)
• Remote Phonebook
• Call Logs (In/Out/Missed, 1000 Entries)
• Blocked List / Allowed List
• Screen Saver, Programmable DSS/Soft Keys
• Voice Message Waiting Indication (VMWI)
• Network Time Synchronisation
• Built in Bluetooth, Built in Wi-Fi - 2.4GHz, 802.11 b/g/n, 5GHz, 802.11 a/n/ac
• Miracast
• Action URL / URI
• SIP Hotspot, Custom Ringtone
• Multicast, Action Plan

Audio

• Wideband ADC/DAC 16KHz Sampling
• Narrowband Codec - G711a/u, G.729AB, iLBC
• Wideband Codec - G.722, Opus
• Acoustic Echo Canceller (AEC)
• Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background  Noise Estimation (BNE)
• Packet Loss Concealment (PLC)
• DTMF - In-Band, Out-of-Band DTMF (RFC2833( SIP Info

Video

• Hardware Video Decoding - H.264
• Video Call Resolution - QVGA / CIF / VGA / 4CIF / 720P / 1080P

Network

• 10/100 Mbps Ethernet
• IP Mode: IPv4
• IP Configuration - Static / DHCP
• VPN - OpenVPN (Requires Third-Party App Support)
• Wi-Fi

Protocols

• SIP v1 (RFC2543), v2 (RFC3261) over UDP/TCP/TLS
• DNS A/SRV/NAPTR
• RTP/RTCP/SRTP
• RTSP, STUN, DHCP
• OpenVPN (Requires Third Party App Support)
• SNTP, FTP/TFTP, HTTP/HTTPS

Call Features

• Call Out / Answer / Reject
• Mute / Unmute (Microphone)
• Call Hold / Resume
• Call Waiting, Intercom, Caller ID Display
• Speed Dial, Anonymous Call (Hide Caller ID)
• Call Forwarding (Always/Busy/No Answer)
• Do-Not-Disturb, Auto-Answering, Hot Line, IP Call
• TR-069

Physical Specifications

• 2 Keys - Power Volume +/-
• TF Card Interface (MAX-256G) x1
• 10 Pin Cable x1 | 2 Pin Cable x1
• Wall Mount Bracket x1
• Screw Kit x1
• RJ45 Interface x1
• 2 Embedded Short Circuit Output Interface
• 2 Relays - Max DC30V / 2A, AC125V / 0.5A
• Alarm Input Interface x8
• Doorbell Input Interface x1
• Power - DC12V/1A or PoE
• Housing Material - ABS & Aluminium Alloy
• Wall Mount Installation

Package Contents

• i57A SIP Indoor Station
• Quick Installation Guide
• Wall Mount Bracket
• 10 Pin Cable x2
• 2 Pin Cable x1
• Screws
