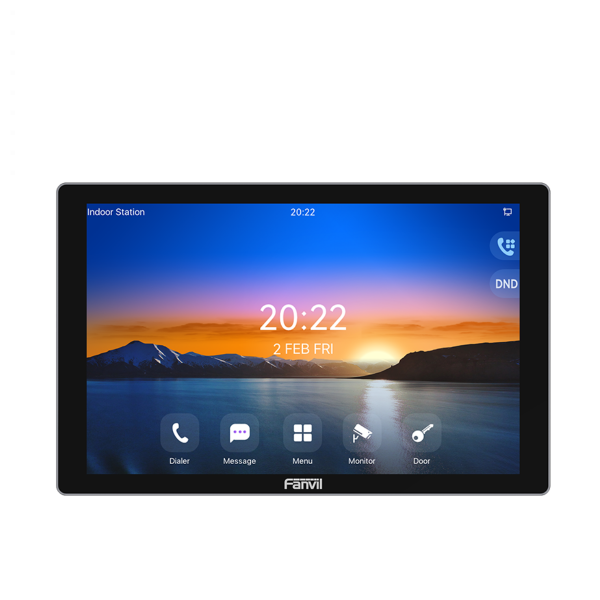

Fanvil i506W SIP Indoor Station

A 10.1 Inch Touchscreen SIP Indoor Station with an Intuitive User Interface and Stylish Design

About the Fanvil i506W

Experience the future of security and convenience with the i506W, a sleek 10.1 Inch Touchscreen Indoor Station. Featuring a stylish design and intuitive user interface, the i506W seamlessly integrates with your existing security system.

Navigate effortlessly through the user-friendly interface and access all your security features with a simple tap.

Connect to a wide range of security devices and enjoy features like two-way intercom, remote door opening, and real time alarm notifications.

Ideal for residential communities, villas, office buildings, and more, the i506W delivers a safe and secure living experience.

Stylish Design, Intuitive Interface

The 10.1 Inch Capacitive Touchscreen (IPS) with a sleek User Interface provides a more convenient user experience.

Wireless Buttons for Healthcare

The Fanvil i506W supports KT10 / KT20 and KT30 Wireless Buttons, allowing for one click calls to service centres or nurses stations, allowing an instant healthcare response and improving the speed when its an emergency.

_{*Please Note that the KT10 / KT20 and KT30 are Optional Products and are not Included*}

Main Features

• 10.1 Inch Colour Capacitive Touch Screen Offers a More Convenient User Experience
• Built in 2W Speaker and AEC Algorithm for High Quality Two Way Handsfree Calling
• Monitor and Check Real Time Videos of Third Party IP Cameras and Access Control Cameras
• Rich Interface Design Enables Integration of Various Sensors - Providing Comprehensive Security Monitoring
• Powered by PoE or External Source
• Supports 2.4G / 5G Wi-Fi, Supports Video Codec 1080p@30fps
• Supports 8 Alarm Input Interfaces, 1 Short Circuit Output Interface, 1 Doorbell Input Interface and 1 RS485 (Receiver)

Specifications

• Linux Operating System
• 10.1 Inch IPS 1280 x 800 Capacitive Colour Touch Screen
• HD Audio, 2W Speaker Power
• Full Duplex Handsfree Calling
• Supports Acoustic Echo Cancellation (AEC)
• G.722, Opus Codec
• 1080p Video Resolution
• Do Not Disturb can be User Defined
• Supports Viewing Video from Third Prty IP Cameras
• Supports Customising Incoming Call Ringtones
• Supports Remote Door Unlocking
• Supports Sending / Receiving Messages
• H.264, H.265 (Optional) Video Codec
• ONVIF, 6 SIP Lines
• Supports 2.4Ghz / 5GHz Wi-Fi
• 8 Alarm Input Interfaces
• 1 x Short Circuit Output
• 1 x Doorbell Interface
• 1 x  RS-485 Interface
• 10 / 100 Mbps
• PoE (Power over Ethernet
• Wall Mounted Installation
• Dimensions - 247.96mm x 156.96mm x 25.6mm

Package Contents

• Fanvil i506W Indoor Station
• Wall Mount Bracket
• Screws
• Quick Installation Guide
