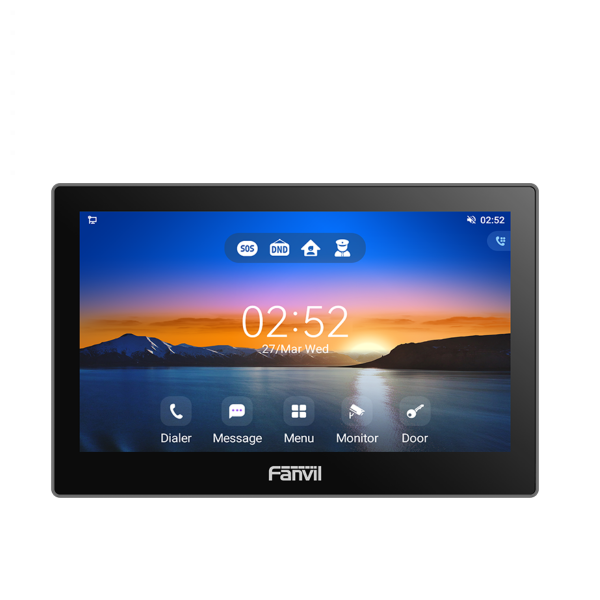

Fanvil i505W Android Indoor Station

A 7 Inch Touchscreen Indoor Station that Runs on Android 9.0 Operating System and Integrating Seamlessly with Third Party Apps

About the Fanvil i505W

Upgrade your home or office security with the Fanvil i505W, a sleek and user friendly 7 Inch Touchscreen Indoor Station.

Navigate effortlessly through the intuitive Android 9.0-based User Interface, providing a seamless user experience.

Expand the functionality of the i505W by integrating with your favorite third party apps for added convenience and user customisation.

Connect the i505W to a variety of security devices via its versatile expansion interfaces - enabling features including two way intercom, remote door opening and alarms.

Easy Integration with Android Applications

Android 9.0 Operating System enables the i505w to integrate with smart home systems, meeting the customisation needs of industry applications and secondary development.

High Scalability with Rich Interfaces

The Fanvil i505W features rich input and output interfaces that are easy to connect with other security devices and customise into various solutions.

Main Features

• 7 Inch (1024 x 600) Capacitive Touch Screen
• Supports 2.4G / 5G Wi-Fi
• Android 9.0 Operatng System - Meeting the Customers Needs of Industrial Applications and Secondary Development
• Supports Video Codec 1080p@30fps
• Monitor and Check Real Time Videos of Third Party IP Cameras and Doorphones
• Built in 2W Speaker and AEC to Achieve High Quality Handsfree Calls
• Supports 8 Alarm Input Interfaces, 1 Short Circuit Output Interface, 1 Doorbell Input Interface and 1 RS485 (Reserved)
• Powered by PoE or External Source

Specifications

• Android 9.0 Operating System
• 7 Inch 1024 x 600 Capacitive Colour Touch Screen
• HD Audio, 2W Speaker Power
• Full Duplex Handsfree Calling
• Supports Acoustic Echo Cancellation (AEC)
• G.722, Opus Codec
• 1080p Video Resolution
• Do Not Disturb can be User Defined
• Supports Viewing Video from Third Prty IP Cameras
• Supports Customising Incoming Call Ringtones
• Supports Remote Door Unlocking
• Supports Sending / Receiving Messages
• Supports the Installation of Third Party Apps
• H.264, H.265 (Optional) Video Codec
• ONVIF, 2 SIP Lines
• Supports 2.4Ghz / 5GHz Wi-Fi
• 8 Alarm Input Interfaces
• 1 x Short Circuit Output
• 1 x Doorbell Interface
• 1 x  RS-485 Interface
• 10 / 100 Mbps
• PoE (Power over Ethernet
• Wall Mounted Installation
• Dimensions - 177.38mm x 113.99mm x 22.5mm

Package Contents

• Fanvil i505W Indoor Station
• Wall Mount Bracket
• Screws
• Quick Installation Guide
