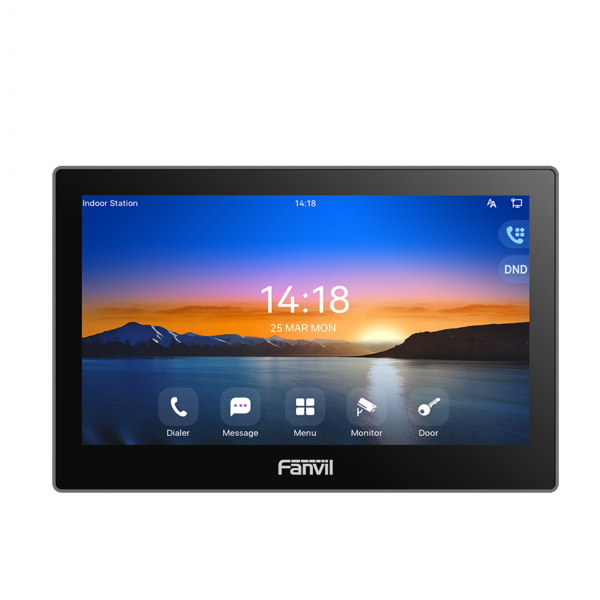

Fanvil i504W SIP Indoor Station

A 7 Inch Touchscreen SIP Indoor Station with an Intuitive User Interface and Stylish Design

About the Fanvil i504W

Experience the future of security and convenience with the i504W, a sleek 7 Inch Touchscreen Indoor Station. Featuring a stylish design and intuitive user interface, the i504W seamlessly integrates with your existing security system.

Navigate effortlessly through the user-friendly interface and access all your security features with a simple tap.

Connect to a wide range of security devices and enjoy features like two-way intercom, remote door opening, and real time alarm notifications.

Ideal for residential communities, villas, office buildings, and more, the i504W delivers a safe and secure living experience.

Stylish Design, Intuitive Interface

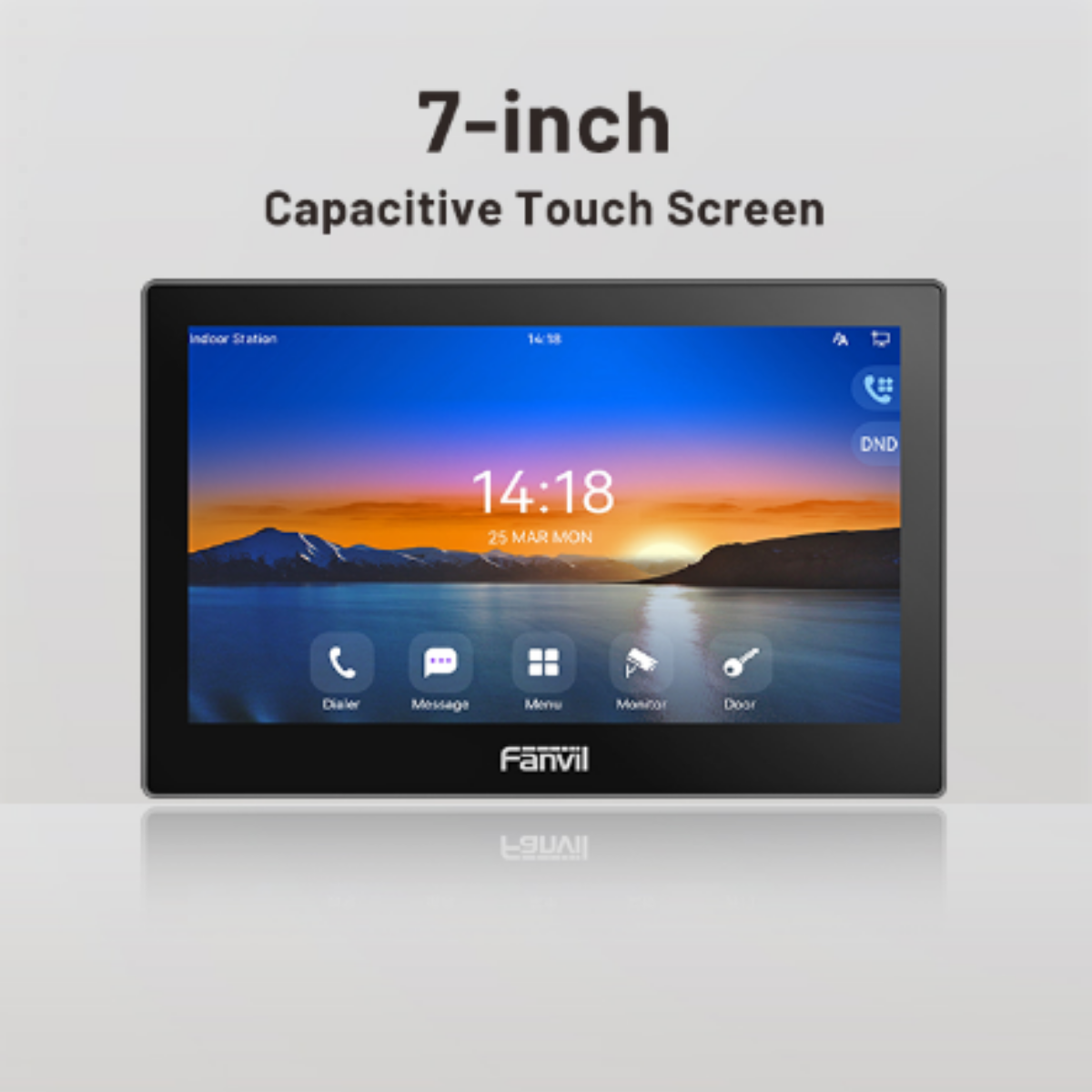

The 7 Inch Capacitive Touchscreen (IPS) with a sleek User Interface provides a more convenient user experience.

Main Features

• 7 Inch Colour Capacitive Touch Screen Offers a More Convenient User Experience
• Built in 2W Speaker and AEC Algorithm for High Quality Two Way Handsfree Calling
• Monitor and Check Real Time Videos of Third Party IP Cameras and Access Control Cameras
• Rich Interface Design Enables Integration of Various Sensors - Providing Comprehensive Security Monitoring
• Powered by PoE or External Source
• Supports 2.4G / 5G Wi-Fi, Supports Video Codec 1080p@30fps
• Supports 8 Alarm Input Interfaces, 1 Short Circuit Output Interface, 1 Doorbell Input Interface and 1 RS485 (Receiver)

Specifications

• Linux Operating System
• 7 Inch 1024 x 600 Capacitive Colour Touch Screen
• HD Audio, 2W Speaker Power
• Full Duplex Handsfree Calling
• Supports Acoustic Echo Cancellation (AEC)
• G.722, Opus Codec
• 1080p Video Resolution
• Do Not Disturb can be User Defined
• Supports Viewing Video from Third Prty IP Cameras
• Supports Customising Incoming Call Ringtones
• Supports Remote Door Unlocking
• Supports Sending / Receiving Messages
• H.264, H.265 (Optional) Video Codec
• ONVIF, 6 SIP Lines
• Supports 2.4Ghz / 5GHz Wi-Fi
• 8 Alarm Input Interfaces
• 1 x Short Circuit Output
• 1 x Doorbell Interface
• 1 x  RS-485 Interface
• 10 / 100 Mbps
• PoE (Power over Ethernet
• Wall Mounted Installation
• Dimensions - 177.38mm x 113.99mm x 22.5mm

Package Contents

• Fanvil i504W Indoor Station
• Wall Mount Bracket
• Screws
• Quick Installation Guide
