Fanvil i31S SIP Video Door Phone

This Product is End of Life

To See Our Available SIP Door Phones Please Click Here

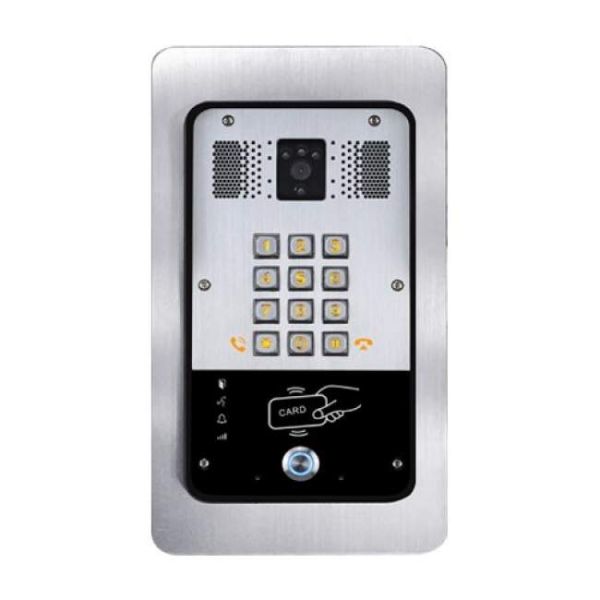

Fanvil i31S SIP Video Door Phone

All-in-One SIP Doorphone - Supports Remote DTMF, Local Password and RFID Cards to Open the Door

The design of the Fanvil i31S SIP Video Door Phone is based on experience and knowledge of Fanvil VoIP Phone development. Stream transmission uses standard IP / RTP protocol and Video Transmission adopts RTSP. The i30 has a variety of enterprise level features and is compatible with many major platforms such as 3CX, Asterix, Broadsoft, Elastix and more.

The Fanvil i31S is designed for operation in indoor conditions, the robust mechanical construction offers protective coverage rating against dust and water with a rating of IP65. The i31S is an economical device, with triple function (All-in-One) - Access control by call, by code and by RFID/IC Card.

Fanvil i31S Highlights

• Compatible with Standard SIP ((RFC3261) Protocol and Main IPPBX/IMS Platform
• Enclosure Designed on International Protection (IP) Markings to Protect Against Intrusion - Accidental or Intentional - Waterproof to IP65 and Anti-Collision up to IK10
• The System Design Adapts to Operating Under Various Environmental Conditions and Temperatures (Supports Temperatures Ranging from -40 to +70 Celsius)
• Status Indication Icon
• All-in-One (Access Control, Intercom and Broadcasting)
• Access Control (by Call, by Code, by RFID/IC, Indoor Switch)
• Built-In 3W Speaker and AEC, Support High Quality Handsfree Communication
• Built-In HD Camera with Backlight Compensation Function
• System Online Maintenance and Management
• Dual Stream - High Quality Recording Whilst Monitoring with Bandwidth Efficiency on Devices - Including Video IP Phones
• Automatic Back Up of Data - Ensures the Data Files are Retained
• Double Watchdog - Increased Reliability Through Technology
• Easy Integration - RTSP Stream for Monitoring within Existing Systems

Call Features

• Voice/Video Intercom
• Speed Dial (Speed Dial Key)
• Auto Answering (Per Line)
• Voice Message (On Server)
• Barge In and Calls Switched Automatically
• Local 3-Way Conference
• Hotline

Phone Features

• High Quality Video Calls
• Support SIP 2.0 and Related RFC's
• Call Log (Dialed/Incoming/Missed)
• Open Door Logs - Support RFID Card Issues
• Programmable DSS Keys
• Network Time Synchronisation
• Action URL / Active URI

Access Control Function

• Two SIP Lines, Support SIP 2.0 ((RFC3261) and Related RFC
• PoE Enabled
• Full Duplex Hands Free (HF)
• Default Auto Answer
• Open the Door Operation - DTMF, Password, RFID Card, Switch
• Support 200,000 Door Open Records
• Support 1000 Remote Access List
• Support 2000 RFID Cards
• Support Electric Lock, Internal or External Power Supply Options
• Support Customised DSS Keys
• Network Time Synchronisation
• Action URL / Active URI Remote Control

Audio

• Narrowband Speech Codec - G.711a / u, G.723.1, G.726-32K, G.729AB
• Broadband Speech Codec - G.722
• Full Duplex Echo Cancellation (AEC) - 96ms Tail-Length
• DTMF-  In-Band, Out-of-Band DTMF (RFC2833) / SIP Info

Video

• Sensor - 1/2.7" Colour CMOS
• 2 Megapixels
• Video Codec - H.264
• Resolution - The Main Stream - 1280 x 720@25fps, Sub-Stream - 704 x 576 (D1)@25fps
• Viewing Angle - 112 ° (H), 84 ° (V)
• Minimum Illumination - Colour 0.1Lux, Support for Infrared illumination

Networking / Protocols

• Support PoE
• Primary and Secondary DNS Servers are Supported
• Support RTSP
• Support SNTP Client
• Support VPN L2TP / OpenVPN
• Support SRTP
• Support HTTP / HTTPS Web Pages
• Support Qos - 802.1p / q, DSCP
• Support MD5 Authentication
• Support Web Filter
• DHCP / Static / PPPoE
• Support STUN

Deployment and Maintenance

• Auto-Provisioning via FTP / TFTP / HTTP / HTTPS / DHCP / TR069 / SIP PNP
• Web Management Portal
• Web-Based Packet Dump
• Configuration Backup / Restore
• Entry Log Export
• Access Table Export / Import
• Firmware Upgrade
• Syslog (Include Open Door Log)

Physical Specifications

• 1 DSS Button (Speed Dial Button)
• 5 Indicator Lights (Including Hot-Key Backlight)
• 12 Numeric Keypad (With Backlight)
• 1 Indoor Switch
• 1 Relay - MAX DC30V / 1A, AC125V / 0.5A
• Active Switching Output - 12V / 650mA DC
• Camera - 130W CMOS / IR-CUT
• RFID Reader - ID (EM4100) IC(MIFARE ONE)
• RFID Card Number Output - Positive Sequence Output 8H10D
• Microphone: -38dB
• Speaker - 4Ω / 3W
• WAN Port: RJ-45, 10 / 100M Adaptive
• Power Supply - 12V ± 15% / 1A DC or POE
• Network Cable - CAT5 or Better
• Shell Material - Aluminium Cover and Cast Aluminium Back Case
• Installation - Wall Mounted Installation or Flush Mounting
• Storage Temperature: -40 ~ 70 ℃
• Relative Humidity - 10 ~ 90%
• Protection Class - IP65 and IK10
• i31S Dimensions - 223 mm x 130 mm x 74 mm (W x H x L)
• Package Weight - 1800g
