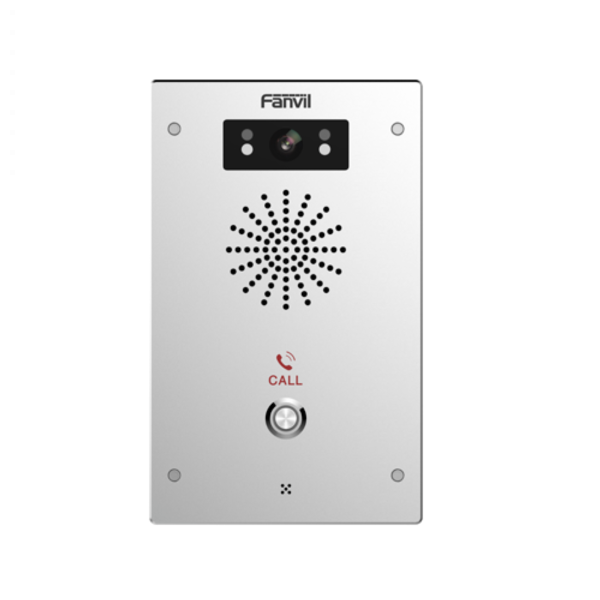

Fanvil i16SV SIP Video Intercom

About the Fanvil i16SV SIP Intercom

The Fanvil i16SV is a SIP Video Intercom that has been designed for outdoor use, its dustproof, waterproof, anti-collision IP65 and IK10 protection grade make the Intercom highly reliable. The i16SV offers audio and video intercom and broadcasting functionalities making tt the best communication solution for many users.

Superior HD Audio

The Fanvil i16SV supports wideband codec G.722 and Opus, providing a superior HD Intercom experience. The built in audio line out interface enables broadcasting with an active speaker.

Flexible Configuration for DSS Key

The DSS key on the Fanvil i16s can be configured as different functionalities on the web page. An emergency call can be made to the specified IP/SIP account by users.

Local Broadcasting with a TF Card

The Fanvil i16SV can be used to play music with the TF Card (TF Card not Included).

Multiple Protection Design

IP65 and IK10 protection grade ensures that the i16s is protected from dust, water and is anti-collision proof, a temperature range from -30°c to 60°c can be applied in many outdoor scenarios.

Easy to Manage

Configured via embedded web, Auto provisioning via Fanvil FDMS, reducing operation and maintenance costs.

Multi-Platform Compatibility

Compatible with many major platforms including 3CX, Broadsoft, Asterisk, NEC, Yeastar, Elastix and many more.

Highlights

• Built in HD Camera with Infared Night Vision, Adopt H.264 Codec
• IP65 Waterproof and Dustproof
• IK10 Anti Collision with Robust Die Cast Aluminium Frame
• Anti-Tamper Alarming when the Cover is away from the Housing, Reports to the Control Centre at the same Time
• HD Voice Speech Quality with Built in 3W Speaker and Acoustic Echo Canceller
• Audio Line Out Port, Expandable External Active Speaker
• Built in 2 Short in Detect Port and 2 Short Out Control Ports
• Supports Built in TF Card Slot for Data Storage or Audio Offline Broadcasting (TF Card not Included)
• Compatible with Major Platforms Including Asterisk, Broadsoft, 3CX, Metaswitch, Elastix, Avaya and more

Generic

• 2 SIP Lines, Speed Dial
• Spoken Announcement of the IP Address in English
• MP3 Broadcasting
• Supports Programmable DSS Key
• Supports Mono Active Speaker
• Talkback Recording Output
• Switch Signal Input and Output
• Supports TF Card
• PoE Enabled

Device Functions

• Auto Answering
• Programmable DSS Keys
• Through Button or Web Page Volume Adjustment
• Network Time Synchronisation
• Time Plan (Task Management)
• Incoming Call Multicast Function
• HTTP API
• Action URL / Active URI

Call Functions

• Call Out / Answer / Reject
• Call Waiting, Speed Dial
• Intercom, Multicast
• Anonymous Call (Hide Caller ID)

Audio

• Narrowband Codec - G.711A/U, G.729A/B, iLBC, G.723, G.726-32K
• Wideband Codec - G.722, Opus
• Full Duplex Handsfree Speakerphone with AEC
• DTMF - In-band, Out-of-Band (RFC2833/ SIP INFO)

Video

• Sensor - 1/2.8” Colour CMOS
• 2 Mega Pixels
• H.264 Video Coding
• 720P / 1080P Resolution
• Minimum Illumination - 0.1Lux, Support for Infrared Illumination
• Viewing Angle - Diagonal - 126°, Horizontal - 98°, Vertical - 65°

Network

• Physical - 10/100 Mbps Ethernet
• IP Mode - IPv4/IPv6/IPv4&IPv6
• IP Configuration - Static IP / DHCP / PPPoE
• VPN: L2TP / OpenVPN
• VLAN

Protocols

• SIP2.0 over UDP/TCP/TLS
• RTP/RTCP/SRTP
• STUN, DHCP
• IPv6, PPPoE
• L2TP, OpenVPN
• SNTP
• FTP/TFTP
• HTTP/HTTPS
• TR-069

Physical Specifications

• 1 DSS Key (Supports LED)
• RJ45 Port x1 - Connect the Network / Power over Ethernet (PoE), Class 3
• Line Out Port - Connect the Active Speaker / Out - Adjustable by Volume, max up to1.2Vpp. / Port - Terminal Socket
• IP65 and IK10 Protection Level
• Wall Mounted
• TF Card Slot, DC Port
• Dimensions - 195mm x 120mm x 40mm

Package Contents

• Fanvil i16SV SIP Intercom
• Connector
• Mounting Template
• Screw and Tool
• Quick Installation Guide
