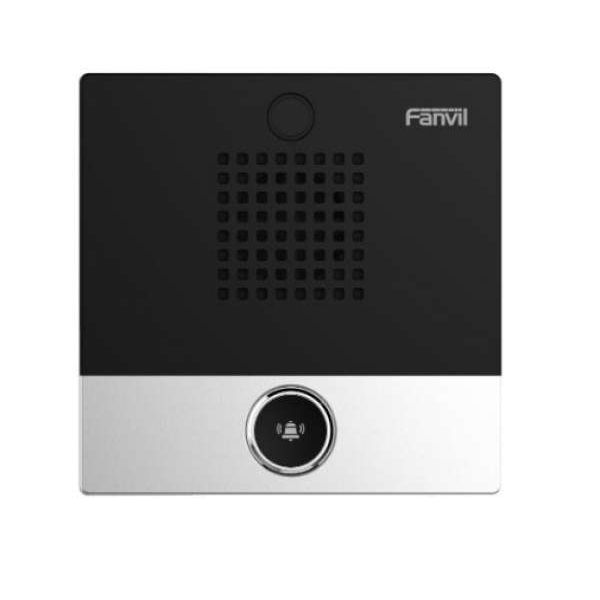

Fanvil i10 SIP Mini Intercom (Single Button)

This Product is End of Life

Please Click Here to View the Recommended Replacement - Fanvil i10S SIP Mini Intercom

Fanvil i10 SIP Mini Audio Intercom (Single Button)

2 SIP Lines, HD Audio, PoE, Waterproof and Dustproof to IP54, Single Button (No Camera), 10/100Mbps

The Fanvil i10 SIP Mini Intercom is small and elegant, with an IP54 Waterproof and Dustproof rating. Supports wall mounting installation and combines Security, Audio Intercom and broadcasting functionalities, offering the qualified communication solution for users and helping to achieve the long distance control and enhance the environment security.

HD Audio

HD Audio with built in 1W Speaker, Opus and Acoustic Echo Canceller (AEC).

Easier Access Control in Office

The Fanvil i10/i10V can be connected with the original office access control through the output interface, this enables users to open the door in distance via VoIP Phones, Cellphones or i10D unlock button after the visitor calls with one press on i10/i10V.

Waterproof and Dustproof

Featuring with IP54 standard and the wide temperature range from -20℃ to 50℃, Fanvil i10 series can be applied in different kinds of indoor environments.

Efficient Configuration and Management

Its faster and easier to configure and manage i10 series by batch deployment on Fanvil Device Management System.

Application Scenarios

• Nursing Homes
• Schools
• Office Entrances
• Apartment Entrances
• Unmanned Supermarkets
• Hotels

Multi-Platform Connectivity

Compatible with major platforms such as - 3CX, Broadsoft, Asterisk, NEC, Elastix, OpenVox, Huawei, Metaswitch, Avaya and more

Fanvil i10 Highlights

• 2 SIP Lines
• Easy Installation and Configuration
• IP54 Waterproof and Dustproof
• -20 °C to 50 °C Wide Range Temperature Adaptability
• Built in 1W Speaker and Acoustic Echo Canceller (AEC)
• Built in 1 Short Circuit Input/Output Interface
• Functionality Including Security, Intercom and Broadcasting
• PoE
• Online Management and Upgrade
• High Compatibility - Compatible with Major Platforms Such as - Asterisk, Broadsoft, 3CX, Metaswitch, Elastix, Avaya and more

Fanvil i10 Generic Features

• 2 SIP Lines
• Auto Answer
• Intercom Function

Intercom Function

• Support Customised DSS Keys
• Network Time Synchronisation
• Action URL / Active URL

Audio

• Narrowband Codec - G.711a/u, G.729AB, iLBC
• Wideband Codec - G.722, Opus
• Full-duplex Acoustic Echo Canceller (AEC)
• Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise Estimation (BNE)
• Packet Loss Concealment (PLC)
• Dynamic Adaptive Jitter Buffer up to 300ms z DTMF - In-Band, Out-of-Band – DTMF-Relay(RFC2833) / SIP INFO

Deployment and Maintenance

• Auto Provisioning Via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP PNP/TR-069
• Web Management Portal
• Web Based Packet Dump
• Configuration Export / Import
• Firmware Upgrade
• Syslog

Networking

• Physical - 10/100 Mbps Ethernet
• IP Mode - IPv4/IPv6/IPv4&IPv6
• IP Configuration - Static / DHCP / PPPoE
• Network Access Authority Authentication - 802.1x
• VPN - L2TP / OpenVPN
• VLAN
• LLDP
• QoS

Protocols

• SIP2.0 Over UDP/TCP/TLS
• RTP/RTCP/SRTP
• STUN
• DHCP
• LLDP
• PPPoE
• 802.1x
• L2TP
• OpenVPN
• SNTP
• FTP/TFTP
• HTTP/HTTPS
• TR-069

Physical Specifications

• 1 DSS Button
• 1 x RJ45 Port
• 1 Short Circuit Input Interface
• 1 Relay - NC/NO Contacts, Max DC30V/1A, AC125V/0.5A
• Active Switching Output - 12V/650mA DC
• Power - DC12V/1A or PoE
• Housing Material - ABS
• Installation - Indoor Installation
• Working Temperature: -20 ~50 °C
