Fanvil H3W - Wi-Fi Hotel IP Phone

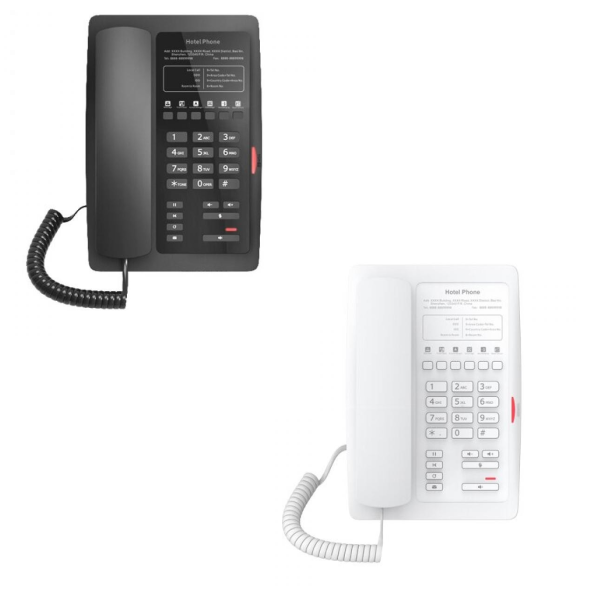

Fanvil H3W | Wi-Fi Hotel IP Phone - Available in Black or White

Built in 2.4G Wi-Fi | PoE | 2 SIP Lines | SIP Hotspot | Full Duplex Speakerphone | HD Audio | 1 USB Charging Port

The Fanvil H3W is a Wi-Fi IP Phone with HD Audio, delivering a smoother communication experience at an affordable price. The H3W is more than a Hotel IP Phone, it is also suitable for use in Supermarkets, Hospitals and Shopping Malls.

Wireless with Built-In Wi-Fi

Connecting to the Network with 2.4G Built in Wi-Fi avoids the need for messy cables, the Fanvil H3W can be installed anywhere in the room without the limitation of cabling.

Capture Every HD Voice

With the wide codec G.722 and Opus, Fanvil H3W can convey every voice during your communications clearly and stably.

Elegant Outlook

The Fanvil H3W is the IP Phone designed for hotels. With stylish, fresh appearance, excellent voice quality, and matching integrated communication platform, it can become a new generation of hotel intelligent terminal equipment.

6 Programmable Soft Keys for Service Hotline

6 programmable Soft Keys for service hotline (Housekeeping, Ticketing, Switchboard, Food and beverage, etc) and the hotel considerate services (Morning call, Voice message, and etc).

Support SIP Hotspot

Fanvil H3W IP Phones can share one number from the server. When a call comes in, each extension phone will ring together to make sure you won’t miss a call.

Features

• Customisable Information Panel
• Built in 2.4G Wi-Fi
• HD Aufio with G.722 and Opus
• 2 SIP Lines
• 1 USB Port for Phone Charging
• 6 Programmable Keys for Speed Dial Functions
• Support PoE

Highlights

• 2 SIP Lines, SIP Hotspot
• Supports Audio Codec Opus - Can Handle a Variety of Audio Applications Including IP Voice etc
• Built-in 2.4G Wi-Fi for IEEE 802.11b/g/n
• Dual Network Ports, Integrated PoE
• Compatible with Major Platforms: Asterisk, Broadsoft, 3CX, Metaswitch, Elastix, Avaya etc

Generic

• 2 SIP Lines
• HD Voice
• PoE
• Handset / Handsfree Mode
• Optional External Power Supply (PSU) - Not Included

Phone Functions

• Call Logs (In/Out/Missed, Max Support 600 Records in the web)
• Programmable DSS/Soft Keys
• Action URL / Active URI
• Web Dial
• Dial Plan
• SIP Hotspot
• Distinctive Ring
• Multicast

Call Functions

• Call Out / Answer
• Mute / Unmute
• Call Hold / Resume
• Speed Dial
• Redial
• Auto-Answering
• Hot Line
• Customised Ring

Audio

• Wideband ADC/DAC 16KHz Sampling
• Narrowband Codec - G.711A/U, G.729AB, iLBC
• Wideband Codec - G.722, Opus
• Full Duplex Handsfree Speakerphone with AEC
• Voice Activity Detection (VAD) / Comfort Noise Generation (CNG)/ Background Noise Estimation (BNE) / Noise Reduction (NR)
• Packet Loss Concealment (PLC)
• Dynamic Adaptive Jitter Buffer
• DTMF - In-Band, Out-of-Band – DTMF-Relay (RFC2833) / SIP INFO
• VQM Voice Quality Monitoring

Deployment and Management

• Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIPPNP/TR-069
• Web Management Portal
• Web-Based Packet Dump
• Configuration Export / Import
• Firmware Upgrade
• Syslog

Network

• 10/100 Mbps Ethernet
• IP Mode:IPv4/IPv6/IPv4&IPv6
• IP Configuration - Static / DHCP / PPPoE
• Network Access Control - 802.1x
• VPN - L2TP / OpenVPN
• VLAN - 802.1P/Q
• QoS
• RTCP-XR (RFC3611), VQ-RTCPXR(RFC6035)

Protocols

• SIP v1 (RFC2543), v2 (RFC3261) over UDP/TCP/TLS
• RTP/RTCP/SRTP
• STUN
• DHCP
• IPv6
• PPPoE
• L2TP
• OpenVPN
• SNTP
• FTP/TFTP
• HTTP/HTTPS
• TR-069

Physical Specifications

• Keypad - 26 Keys- Including - 12 Standard Phone Digit Keys, 6 DSS Keys, 4 Function Keys - Hold, Call Transfer, Redial, MWI, 3 Volume Control Keys - Up/Down/Mute (with Red Colour LED), i Handsfree Key
• MSG Indicator (with Red Colour LED) x1
• HD Handset (RJ9) x1
• Standard RJ9 Handset Cord x1
• RJ9 Port x1 - Handset x1
• RJ45 Port x2 - Network x1, PC x1 (Bridged to Network)
• USB Port x1 - Standard A
• Power - 5V/2A or PoE
• Power Consumption (PoE) - 1.5W ~ 5.65W
• Power Consumption (Adapter) - 2.13W ~ 7.46W
• Installation - Desktop
