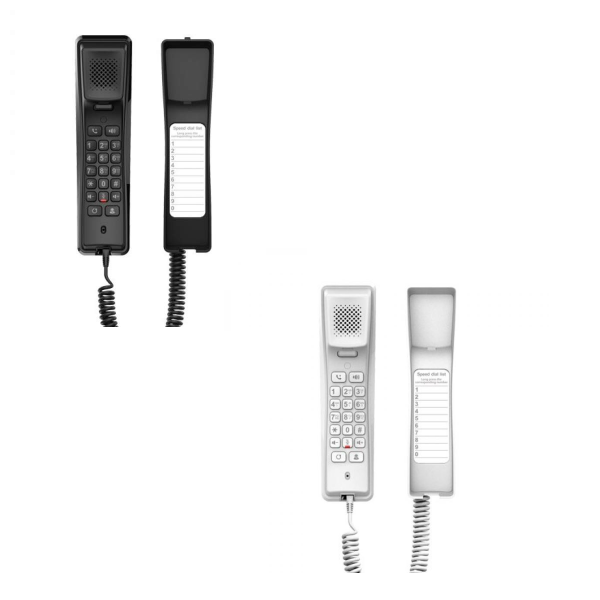

Fanvil H2U - Compact IP Phone

Fanvil H2U - Compact IP Phone

Available in Black & White

Tiny and stylish, the Fanvil H2U Compact IP Phone has been designed with brand features including 2 SIP Lines, 10 Speed Dial Keys, 1 Programmable DSS Key and a HD Speaker on the Handset. Supporting Desktop Mode and Wall Mount Mode, PoE Mode and Power Supply Charging Mode, the Fanvil H2U is more than a Hotel Phone, it can be applied in multiple scenarios such as Schools, Hospitals, Supermarkets and Residential areas. Compatible with mainstream IP-PBX/ Softswitch/IMS Platform, easy to install and use.

Cutomisable Keys - One Click Communication

10 Speed Dial Keys to Customise Different Services, 1 programmable DSS Key for Different Functions such as Achieving Remote Access Control, Speed Dial List.

HD Audio for both Speaker and Handset

With Wideband Codec G.722 and Opus, the Fanvil H2U Offers a more Stable and Clearer Audio, even in Noisy Environments.

Support SIP Hotspot

The Fanvil H2U IP Phone can Share one Number from the Server. When a Call comes in, each Extension phone will ring Together, ensuring calls aren't Missed.

Fanvil H2U Highlights

• Fashionable Product Appearance
• Easy Installation and Configuration
• Economical and Environmentally Friendly Product Concepts
• Can Store 10 Shortcut Numbers, Long Press to Achieve Speed Dial
• Adaptive 10/100Mbps Network Port
• Supports PoE or Power Supply
• Compatible with Major Platforms Such as Asterisk, Broadsoft, 3CX, Avaya Metaswitch, Elastix, Plantronics, Sennheiser and more

Fanvil H2U Features/Generic Features

• 2 SIP Lines
• HD Audio with Wideband Codec - G.722, Opus
• 10 Speed Dial Keys
• 1 Programmable DSS Key
• 3 Way Conference
• Desk/Wall Mount Mode
• Handset / Handsfree Mode
• 10/100 Mbps
• PoE Enabled
• Optional External Power Supply

Fanvil H2U Phone Functions

• Call Logs (In/Out/Missed/Max support 600 Records in the Web)
• Programmable DSS
• Action URL / URI
• Web Dial

Fanvil H2U Call Functions

• Hot Desking
• Hot Line
• 3 Way Conference
• Auto Answering
• Redial
• Speed Dial
• Call Hold / Resume
• Handsfree / Cancel Handsfree
• Mute / Unmute
• Call Out | Answer

Fanvil H2U Audio

• Narrowband Codec - G.711a/u, G.726, G.729A, iLBC
• Wideband Codec - G.722, Opus
• Acoustic Echo Canceller (AEC)
• Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise Estimation (BNE) / Noise Reduction (NR)
• Packet Loss Concealment (PLC)
• Dynamic Adaptive Jitter Buffer
• DTMF - In-band, Out-of-Band – DTMF-Relay(RFC2833) / SIP INFO

Network

• 10/100 Mbps Ethernet
• IP Mode - IPv4/IPv6/IPv4&IPv6
• IP Configuration - Static / DHCP / PPPoE
• Network Access Control: 802.1x
• VPN - L2TP / OpenVPN
• VLAN
• QoS
• RTCP-XR (RFC3611), VQ-RTCPXR(RFC6035)

Protocols

• SIP2.0 over UDP/TCP/TLS
• RTP/RTCP/SRTP
• STUN
• DHCP
• IPv6
• LLDP
• PPPoE
• 802.1x
• L2TP
• OpenVPN
• SNTP
• FTP/TFTP
• HTTP/HTTPS
• TR-069

Deployment and Management

• Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP PNP/TR-069
• Web Management Portal
• Web-based Packet Dump
• Configuration Export / Import
• Firmware Upgrade
• Syslog

Physical Specifications

• Keypad - 19 Keys Including - 12 Standard Phone Digit Keys (0-9 - Speed Dial Configuration on Webpage)
• 3 Function Keys (Handsfree, Redial, Hold)
• 3 Volume Control Keys - Up/Down/Mute (With Red Colour LED)
• 1 DSS Key
• Status Indicator (Two Colour LED) x1
• HD Handset (RJ11) x1
• Standard RJ11 Handset Cord x1
• RJ11 Port x1
• RJ45 Port x1
• Power - 5V/2A or PoE
• Desktop or Wall Mount
• H2U Dimensions - 55.8mm x 215mm x 57.8mm
