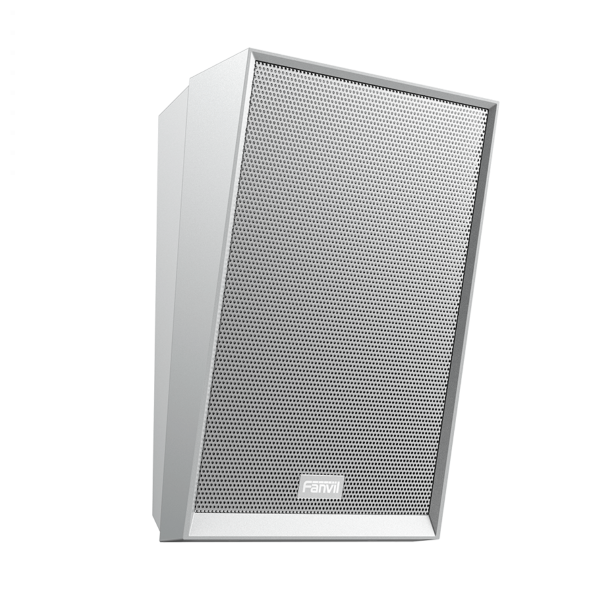

Fanvil A212 IP Wall Mounted Speaker - White

A Commercial Grade IP Audio Terminal with a Maximum Output of 105dB - Providing Powerful Sound Even at a Distance

About the Fanvil A212

The Fanvil A212 is a versatile Wall Mounted Speaker that combines intelligent security, audio and video intercom, and broadcasting capabilities into a single, cost effective solution. Designed for both indoor and outdoor use, it offers high quality communication and intercom services, making it ideal for a wide range of applications.

Supporting up to 20 multicast zones with priority management and G.722 and Opus codecs for crystal clear high definition audio.

Integrating seamlessly with Converged Communication Systems, Video Surveillance Systems. Fanvil Broadcast and Intercom Systems, Access Control Systems, Digital billboard Systems and Fire Alarm Systems.

Connect the A212 to a 15W Passive Speaker for enhanced amplification.

Outstanding Sound Quality

The Fanvil A212 Wall Mounted Speaker is available in Black or White, making it ideal for a variety of indoor environments. It supports lossless audio broadcasting, by preserving all of the original audio information and enabling HD voice calls through its built in Omni-Directional Microphone.

Security System Integration

The Fanvil A212 Wall Mounted Speaker can seamlessly integrate with IP Cameras, Alarm Lights, Electric Locks and other security and alarm devices via HTTP API and short circuit I/O Interfaces, enabling remote control, video surveillance and broadcasting functionalities.

Six Highlighted Functions

The Fanvil A212 is an all in one solution with 6 highlighted functions:

• Scheduled Broadcasting - Buiit in Audio Files with Configurable Volume, Repetition Time and Interval Time
• Real Time Broadcasting - Trigger Built-in Audio for real Time Broadcasting Through HTTP API, Input Ports and Remote SIP Calls
• Multicasting - Support Receiving Multicast from Different Zones
• Intercom and Monitoring - A Built in Omni-Directional Microphone Enables Two Way Intercom Communication, Self Test and Monitoring
• Video Linkage - Link with IP Cameras for Real Time Video Monitoring
• External Speakers - Supports External 8Ω 15W Passive Fixed Impedance Speakers and Fanvil Sub Speakers for Amplification

Highlights

• Excellent Sound Quality - Supports HD Intercom, Lossless Music Broadcast
• Flexible Integration - Supports Standard SIP Protocol, HTTP API, Short Circuit Input & Output and Video Linkage, Making it Easy to Integrate with Leading Third Party Systems
• Convenient Management Support - Supports Web, DM Software, FDCMS and Fanvil Broadcast & Intercom APP Management
• Functional Integration - Supprts Paging Broadcasting, Scheduled Broadcasting, Emergency Broadcasting, Two Way Intercom, Self Check / Monitoring, Priority Management and Other Functions
• Multi Mode - Serverless Mode, Converged Communication Mode, Fnavil Broadcast and Intercom External Linkage Mode

Basic Functions

• 2 SIP Lines
• Wall Mounted Installation, Rotary Support Installation (Optional)
• Main Speaker 8Ω 15W can be Connected to r 8Ω 15W Passive Sub Speaker
• Built in Omni-Directional Microphone, Supports Monitoroing, Self Test, Intercom Application
• Supports HD Voice using G.722 and Opus Encoding
• Supports Lossless Sound Quality Broadcasting, MP3 and Wav Encoding
• Supports 20 Multicast Partitions
• Built-in 24MB Audio File Storage Space, Supports Scheduled Task Broadcast
• Customise Audio Files for Emergency Notifications and Alarms
• 3 Short Circuit Input Detection, 1 Short Circuit Output, Linkage Security Alarm Device
• Supports External IP Camera Video Linkage
• Supports Web Remote Adjustment Volume
• Supports PoE / PoE+ Power Supply or DC24V / 2A Power Supply
• Adaptive 10/100 Mbps Network Port

Device Functions

• Default Auto Answering
• Network Time Synchronisation
• Remote Volume Adjustment
• Dynamic Multicast Function
• Action URL / Active URI

Network

• 10/100 Mbps
• Network Mode - IPv4 / IPv6 / IPv4&IPv6
• IP Settings - Static IP / DHCP / PPPoE
• VPN - L2TP / OpenVPN
• VLAN, LLDP, QoS

Protocols

• SIP2.0 over UDP / TCP / TLS
• RTP / RTCP / SRTP
• STUN. DHCP, IPv6, PPPoE, L2TP, OpenVPN
• SNTP, FTP / TFTP, HTTP / HTTPS, TR-069

Weight and Dimensions

• Weight - 2.27kg
• Dimensions - 184mm x 275mm x 124mm

Package Contents

• Fanvil A212 Wall Mounted Speaker
• Connector
• Mounting Template
• Screw and Tool
• Quick Installation Guide
