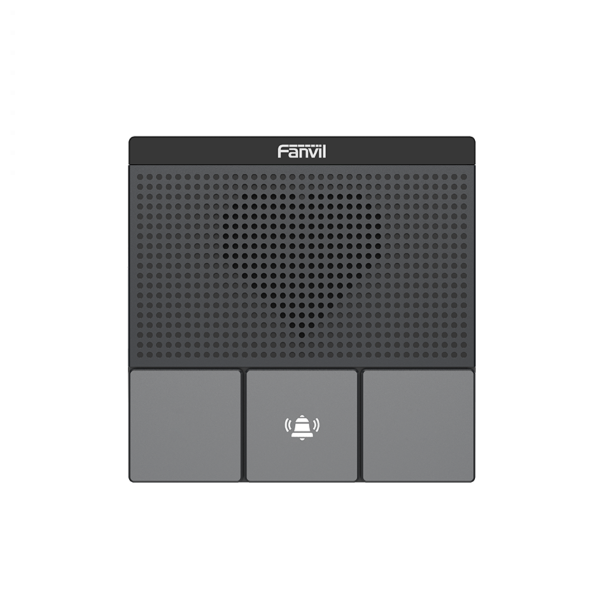

Fanvil A10W - SIP Mini Intercom

SIP Mini Intercom, Designed for Indoor Security, Intercom and Broadcasting Functionality, Compact and Stylish Appearance, 3 Customisable, Detachable Function Buttons

About the Fanvil A10W

Fanvils A10W SIP Mini Intercom has a compact, stylish design, Its rich functions that include HD Audio, IP54 waterproof and dustproof rating and built in 2.4GHz and 5GHz Wi-Fi, providing a high quality communication experience for its users. Three detachable function buttons can be customised to suit the users preference, whilst supporting wall mount installation.

HD Audio

The Fanvil A10W supports wideband audio codec Opus and G.722. With a built in 2W speaker and Acoustic Echo Canceller (AEC), it brings a crystal clear listening experience

One Click Call

When users press the Call Button for help, the host machine and other extensions will receive the call information simultaneously, providing a timely response to the users needs.

External Connections

The A10W has built in 1 shortcut circuit input and 1 shortcut circuit output interface. The A10W supports external emergency buttons, sensors, alarm lights and other security equipment to ensure a timely response in emergencies.

Dual Band Wi-Fi

Dual band Wi-Fi - 2.4GHz and 5GHz on the A10W provides wireless network communication, greatly improving work flexibility.

Compact, Stylish Appearance

The A10W has a stylish, compact appearance, equipped with 3 detachable function keys that support icon customisation according to the users needs.

Highlights

• Built in 2.4GHz and 5GHz Wi-Fi
• IP54 Waterproof and Dustproof
• Supports HD Audio with Codec G.722 and Opus
• Built in 2W Speaker and Acoustic Echo Canceller (AEC)
• Supports PE Power Supply
• Built in Short Circuit Input / Output Interface
• Features 2 SIP Accounts and 3 Customisable Detachable Function Buttons
• Supports Wall Mount Installation

Specifications:

Generic

• 2 SIP Lines, Auto Answer, HD Voice
• PoE Enabled, Intercom Function
• Built in 2.4G and 5G Wi-Fi
• Optional External Power Supply (Not Included)

Intercom Function

• Supports Customised DSS Keys
• Network Time Synchronisation
• Action URL / Active URL

Audio

• Narrowband Codec - G.711a/u, G.729AB, G.723.1, G.726, iLBC
• Wideband Codec - G.722 Opus
• Duplex Intercom with Acoustic Echo Canceller (AEC)
• Voice Activity Detection (VAD) / Comfort Noise Generation (CNG), Background Noise Estimation (BNE)
• Packet Loss Concealment (PLC)
• Dynamic Adaptive Jitter Buffer
• DTMF - In-Band, Out of Band, DTMF Relay (RFC2833) / SIP INFO

Networking

• Physical - 10/100 Mbps Ethernet
• Wi-Fi 2.4G & 5G
• IP Mode - IPv4 / IPv6 / IPv4 & IPv6
• IP Configuration - Static / DHCP / PPoE
• Wi-Fi Encryption - WP4 / WPA2-PSK / 802.X.EAP
• VPN - L2TP / OpenVPN
• VLAN / LLDP / QoS

Physical

• 3 DSS Buttons
• Status Indicator Light - Fast Flashing Red - Failed Registration or Network Anomaly, Slow Flashing Green - Call
• 1 x RJ45 Port
• 1 x Short Circuit Input Interface
• Wall Mount Installation
• Dimensions - 87.56mm x 87.56mm x 30mm

Package Contents

• Fanvil A10W SIP Intercom
• Connector, Mounting Template
• Screw and Tool
• Quick Installation Guide
