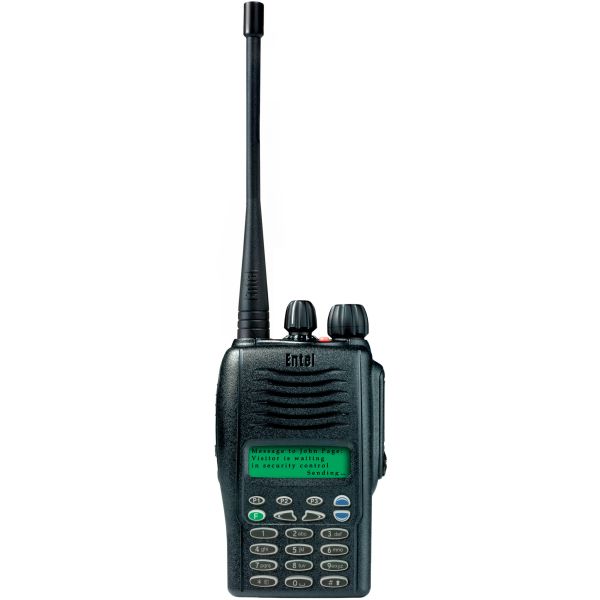

Entel HX486 UHF Two Way Radio

Entel UK
PMC Product code
6289
Manufacturer's Product Code
HX486
Discontinued
Condition
Brand New
£219.95 £263.94
RRP: £336.65

This Radio Requires a License to Operate, if you do not already have an Existing Radio License, a License will need to be Purchased before using the Radio - Please Click Here to Purchase a License

The full keypad version of the advanced signalling 255-channel compact HX486 provides feature rich and flexible systems communications in a compact ergonomically designed portable. Built to MIL-STD 810C/D/E/F specifications with a superior splash proof IP55 rating, its exceptionally loud audio will enable you to communicate in the noisiest environments.

Utilising the latest intelligent Lithium-Ion battery technology, the advanced signalling HX400, if dealer enabled, will display a battery cycle count each and every time you power-on your radio. It will even alert you to imminent battery life expiration.

Features include FFSK signalling, variable point voice scrambler, channel scanning, shunting mode, personal attack alarm, whisper mode and lone worker features. GPS automatic location information, man down and Bluetooth options are also available, while the high visibility back-lit display has scrolling text, allowing for text messaging and the use of its easy to use intuitive menus.

General Features

Environmental Protection To IP55

  • The practical HX Series 2.0 radios enjoy an IP55 rated construction, which means that they are dust protected and resistant to water ingress (i.e. splash proof). For most day to day applications, this level of protection is perfectly adequate, however, where full protection against immersion in water is required, users should consider our IP68 rated HT Series 2.0 radios.

MIL-STD 810C/D/E/F

  • Meeting MIL-STD 810C/D/E/F commercial grade construction for tough, enduring performance, the Entel's HT and HX series 2.0 portables conform to stringent standards, enabling them to withstand the everyday rigours of shock, vibration and the corrosive effects of dust and moisture, ensuring many years of trouble free use in the most hostile environments.

1800mAh Li-Ion Battery

  • All Entel portables come with the latest intelligent Lithium-Ion battery technology as standard. Whichever model you choose, these batteries will count the number of completed charge cycles, which on LCD variants, if dealer enabled, can be displayed when you power-on your radio.
  • For your convenience it will even alert you to imminent battery life expiration. Another advantage of Lithium-Ion battery technology is the way it maximizes duty cycles, while the elimination of memory effect means there is no need to fully discharge the cells before recharging. Therefore you are assured a full duty cycle each and every time you take your radio from its charger.

Flash Upgradeable To Add Future Features

  • Entel proposes to continuously add/upgrade features to its range of radios. Using Flash Upgrade technology your radios can be upgraded by your Dealer at any time.

Robust Accessory Socket

  • A completely redesigned accessory connector, when secured to the portable, is designed to withstand any amount of punishment from dropping to careless misuse. Furthermore, the securing bolt incorporates a shearing point to protect the connector.
  • On selcall and advanced variants, the connector provides a programmable interface for audio accessories and data devices, as well as a custom interface for any special applications.

Scrolling Graphic LCD Display

  • LCD display variants offer more information and versatility. For example, our high tier radios can display: Channel Name, Caller ID, Text Messages, Emails etc.

Channel Naming

  • The LCD versions allow your Dealer to "name" channels. Rather than just indicating a channel number your Entel radio can display "Security Channel" etc.

Multifunction Encoder Control

  • The encoder control fitted on top of our high tier range of radios provides: Volume control, channel change, navigate contact, status & message lists etc. In addition you can use the encoder to quickly navigate your user friendly menus.

Scan / Priority Scan

  • Both HT and HX series portables have the facility to scan for an active channel. When an active channel is found, the radio will automatically select that channel for you. Priority scan will allow you to select one channel in the scan list that is treated as a "Priority". It will be checked more frequently than all other channels in the list.

Voice Annunciation (Optional)

  • Speaks the channel number and basic settings so you can operate the radio without having to look at it.

Bluetooth Wireless Communications (Optional)

  • Allows you to connect a Bluetooth audio or data accessory.

Clone Data From Radio To Radio

  • Allows you to easily configure another radio to match your system.

Convenience

VOX Hands Free (With Audio Accessories)

  • When you attach a VOX enabled audio accessory you can operate totally hands free. All you need to do is talk and your Entel radio will automatically transmit for you.

Programmable Channel Monitor Button

  • If you have Analogue or Digital squelch enabled all signals other than your own will be filtered out. This can be temporarily disabled enabling you to monitor any other transmissions on your channel. This button may be programmed on or off by your Dealer.

2 / 5 Tone Selective Calling & FFSK

  • A whole host of additional mobile phone-like features are possible when you use 2/5 Tone selective calling. Some are listed below.

Open Or Closed Channel Modes

  • Most radio systems are "open" meaning everyone on the system can hear everyone else. In some cases this is a benefit, however call privacy may be required at times. This is where Entel's closed channel mode comes into its own (see below).

Call A Group, Individual or All Radios At Once

  • In closed channel mode your high tier Entel radio can be programmed so that a call that is "private" e.g. 1 to 1 or 1 to a small "group" can be made. If required “open” calls can still be made i.e. call everyone at once.

255 User Contact List

  • Your Entel contact list allows for up to 255 contacts (radio, phone & email). With a full keypad radio, finding a contact could not be easier. Just type the first few letters of the contact and your search will be automatically narrowed.

Multiple Ringtones

  • The high tier radios allow you to set different ringtones against different contacts in the same way you can with a mobile phone.

Battery charge count

  • Whichever model you choose, these batteries will count the number of completed charge cycles, which on LCD variants, if dealer enabled, can be displayed when you power-on your radio. For your convenience it will even alert you to imminent battery life expiration. If you opt for a system of non-display portables then we recommend that you have at least one model with a display in order to take advantage of this unique feature.

Invert display

  • Inverts the display allowing you to read it when the radio is viewed upside down on a belt clip, for example.

Talkaround

  • Some radio systems use a "repeater" to increase the system's range. However when you go outside the range of the repeater, communication with another radio is not possible no matter how close you are. Talkaround enables you to talk directly with another radio, bypassing the repeater.

Intuitive Menus

  • Modern radios offer extensive features and as such can become complex to use. Entel's goal has been to offer advanced features but with simplified operation. Our new high tier range provides the ultimate in an intuitive user interface, similar to that of a mobile phone. We are confident most features can be used without the need to refer to your user guide.

Info Button

  • Just in case you are unsure of a feature, your high tier Entel radio has a built-in user guide. Just press the "Info" button.

Speed Dial

  • Again, just like a mobile phone, speed dials can be allocated to the radio’s keys.

Who's calling (caller ID)

  • Our entire high tier radio range offers caller ID. This enables you to see who is calling you.

Missed, Received & Dialled Number List

  • Missed a call? No problem - you will have a message and indicator waiting when you return to your radio. Go to your missed call list and return the call. Received and dialled numbers are also stored for convenience.

Selectable "Profiles"

  • In a meeting but expecting an important call/message? Switch to "silent mode" and still be available. DND mode (Do Not Disturb) additionally returns a message to the calling party stating something like "I will call you back".

DTMF Dialed Mode - Stored

  • DTMF dial strings can be stored in your "Contact List" and recalled at any time. Alternatively a "Speed Dial" button may be assigned to provide quick access to any DTMF dial string.

Security

Stun & Alarm A Lost or Stolen Radio

  • If a radio is lost or stolen, and assuming it is within range, it can be remotely disabled. Once found you can enable it again.

Programmable Scrambler (Voice Inversion)

  • Used to encrypt your voice, protecting against casual eavesdropping.

Power on Password Option

  • To protect against unauthorised access your Entel radio can be password protected.

Safety

Local Personal Attack Alarm

  • All HT and HX portables include a personal attack alarm option. Once activated the speaker of your radio will emit a high pitched siren as a deterrent and provides a local call for assistance.

Panic Button With Remote Alert

  • In addition to the Local alarm feature your high tier Entel radio will enable you to send a message to another/all radios calling for assistance. This ensures your request for assistance is received even if no one is close enough to hear your local alarm.

Emergency Microphone Live

  • With remote alert your Entel radio can be programmed to automatically transmit any background sounds. This may give respondents a clue as to the type of emergency i.e. a struggle with an assailant etc.

Lone Worker Alarm Mode

  • The panic button feature relies on the casualty being able to operate the radio. Entel's Lone Worker mode goes one stage further. If the casualty is unconscious or unable to operate the radio for any other reason, after a predetermined time the radio will beep, warning its user it is about to send an automatic request for assistance. If the radio's user does not intervene the alarm will be automatically raised.

Man Down Alarm (Optional)

  • Entel's Man Down option detects when the radio is no longer in its normal position. Just like Lone Worker an alarm is emitted giving the radio user an opportunity to cancel the alarm. If the radio's user does not intervene the alarm will be automatically raised. Two options of sensor are available:
  • Tilt Only
  • Tilt & non movement (3-axis)

Shunting Mode (For Rail Companies)

  • Ensure the safety of your rail staff by using Entel's Shunting capability.

Silent Alarm Call Mode

  • In some applications, so as not to inflate the situation, a covert alarm is required. Your Entel radio can be programmed to send an alarm silently.

Continue Alarm Even If Switched Off

  • Once you have initiated an alarm and the radio is switched off, e.g. by the assailant, the radio will appear to have been switched off (display blanks, no beeps, indicators or received signals are heard). However the radio is still sending its emergency request and mike-live signals etc.

Manual Location Information With Emergency

  • It's one thing knowing Fred requires assistance, but where is he? Your high tier Entel radio allows you to manually set your location before you start a hazardous task. The location is easily selected form your location list which is similar to your contact list in ease of use.

Bluetooth Fully Automatic Indoor Location Information (Optional)

  • If you prefer, the location of your radio can be automatically updated as you move around your site. Small beacon transmitters are strategically placed so that your radio always “knows” where it is. If you initiate an emergency call your current location is automatically transmitted to the receiving radio(s).

Text Messaging & Emails

Send / Display Status Messages

  • Status messages are short predefined text messages that may be sent automatically when your radio is called, when you enable a facility, or are initiated by you manually. Examples may include: "At Lunch", "Lone Worker switched on", "Call me when you are free" etc.

Send / Display Predefined Text Messages

  • Predefined text messages are longer versions of status messages. These messages can only be sent/received using Entel's high tier radios.

Display Free Format Text / Email Text Messages

  • Any of our display high tier radios can display an incoming text or email message. Simple text or email messages can be created on 8-Key radios using our easy to use text editor screen.

Technical Specification

General

  • Frequency Range - 400 - 470MHz
  • Channels - 255 Channels
  • Channel Spacing - 12.5 kHz / 25 kHz
  • Communication Method - Simplex / semi duplex
  • Antenna Impedance - 50 ohm
  • Antenna - Whip / stubby
  • Battery Type - 1800 mAh Li-Ion battery pack
  • Power Supply - Voltage 7.4V DC
  • Microphone - Internal condenser microphone
  • Operating Temperature -20° to +55°
  • Size (mm) 61(W) x 100(H) x 31(D)
  • Weight 274g with battery and aerial

Transmitter

  • Power Output - HIGH – 5W, LOW - 1W
  • Modulation 8K0G3E/16K0G3E
  • Oscillator Method - PLL
  • Frequency Stability < ±0.00025% (±2PPM)
  • Maximum Deviation ±2.5 kHz(Narrow)/ ±5 kHz(Wide)
  • Audio Distortion < 5% (1 kHz 60%)
  • Spurious Emission -68 [dBc]
  • Hum & Noise -40 [dB]

Receiver

  • Receiver Type - Double Superheterodyne type
  • Sensitivity -0.25uV (12dB SINAD)
  • Frequency Stability ±0.00025%(±2PPM)
  • Spurious Rejection -60 dB
  • Adjacent Channel Selectivity -60 dB (Narrow) , -70 dB (Wide)
  • Distortion 5% (1 kHz 60%)
  • Hum & Noise -40 dB
  • Audio Output 1W
  • Speaker Size 45 mm

In The Box

  • CNB450E - 7.4v, 1800mAh rechargeable Lithium-Ion battery pack
  • CBH450 - Spring loaded belt clip
  • High efficiency antenna (can be exchanged for stubby antenna at point of order)
  • User manual
More Information
Product Details
Manufacturer's Code:HX486
Warranty12 months
ManufacturerEntel UK
Key Features
Radios for...Commercial (Site, Security etc)
Transmission TypeUHF
Digital or AnalogueAnalogue
Single radio or multipackSingle Radio
WaterproofingSplash / Weatherproof
IP RatingIP55
Technical Specifications
Dimensions(mm) 61(W) x 100(H) x 31(D)
Charger Dimensions-
Battery Type-
Charge Time-
Battery Capacity-
Standby Time-
Voltage7.4V DC
Talk Time-
Please Note
Please noteAll information is provided for reference only. If you are unsure about any of the features listed, please check the manufacturer's official information.
