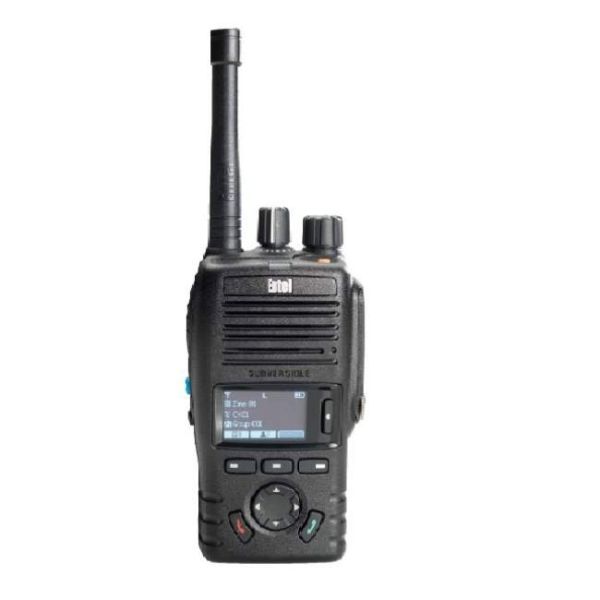

Entel DX446L DMR & Analogue Radio

The Entel DX446L DMR Digital Portable Radio is compact, MIL-STD and IP68 affordable business radios. Delivering outstanding audio clarity, quality and volume compared to other DMR Radio's.

The carefully designed ergonomics, ultra tactile buttons, superior construction and unrivalled audio levels makes the DX446L Radio ideal in applications where much larger commercial sized Radio's would have been previously used.

General Features

Environmental Protection to IP68

The DX446L has an IP68 rating, meaning that it is submersible in up to 2 metres of water for up to 4 hours, as well as being dust protected and fully submersible (even with the accessory cover removed).

MILSTD 810C/D/E/F/G

Meeting MIL-STD 810C/D/E/F/G and providing commercial grade construction for tough enduring performance. Entels DX446L Radio conforms to stringent standards, this enables it to withstand the everyday rigours of shock, vibration and the corrosive effects of dust and moisture. Users will have many years of trouble free use.

Robust Accessory Socket

The DX446L Accessory Socket has been specifically designed so that when an accessory is secured to the Radio, the connection is able to withstand any amount of punishment, from misuse to dropping. The DX446L will retain its IP68 rating even when the accessory cover is removed.

Channel / Zones

The Entel DX446L Radio provides 64 programmable channels and 8 programmable zones.

Li-Ion Battery Technology and Improved Talk Time

The Entel DX446L is supplied with the latest intelligent Lithium Battery Technology as standard. One advantage of Lithium-Ion Battery Technology is the way it eliminates memory effect, this means that its not necessary to wait until the DX446L is fully discharged to recharge the battery. This ensures that users are able to have a full charge each and every time the Entel Battery is removed from the charger. The DX446L also benefits from TDMA Digital Mode Signalling that increases battery endurance by up to 40% ensuring longer standby / talk time.

Field Upgradeable to Add Future Features

Entel adds and improves features on its DX446L Radio by way of free software updates. Using Entel's innovative End User Programmer App, the Entel DX446L Radio can be easily upgraded without the need to send the Radio back to the dealer or the dealer not having to visit the site, saving time and expense.

High Contrast White on Black OLED Display

The DX446L benefits from a high contrast white on black OLED display that delivers superior readability in varying light conditions adding to the DX446L's intuitive user interface.

Convenience

Mixed Mode Operation

In Mixed Mode Operation the Radio can receive both DMR Digital and Analogue modes without the user having to change channel. Mixed Mode is beneficial where both Analogue and Digital Radio's are being used together. For example where a customer is migrating from an existing Analogue Radio System to a DMR Digital Radio System.

Programmable Channel Monitor Button

If you have channel protection enabled on your DX446L Radio, all signals other than your own networks will be filtered out. This can be temporarily disabled, allowing you to monitor all signals on your channel.

Keylock

The DX446L has keys and controls that can be locked to avoid accidental operation.

Individual, Group Calling and Caller ID

Entel's DX446L provides both Individual and Group Calling, which can be selected via the channel control, and on display models the Radio's large contact list. Display models an also display the callers id.

TDMA Two Slot Direct Mode (aka Two Slot Simplex)

The DMR Digital Standard splits a single 12.5Khz Analogue channel into two seperate channels, therefore doubling the number of channels available to the Radio user. Two Slot Operation is normally only possible when a DMR Repeater is included in the system. However Entel DMR Radio's overcome this restriction on DMR446 channels so both channels (slots) are always available to the user.

Privacy

The DX446L Radio provides enahnced privacy as standard, therefore providing additional protection compared to Analogue Radio's.

Radio Features

• 500mW RF Power Output
• 64 Position Channel Selector
• 16 Digital Licence Free Channels
• 8 Analogue PMR446 Licence Free Channels
• IP68 - 2 Metres for 4 Hours
• MIL STD 810 C/D/E/F/G
• Weight - 267g
• Dimensions - 97mm x 59.5mm x 37mm (H x W x D)
• Duty Cycle with CNB450E 2000mAh Battery - 14 Hours Digital, 11 Hours Analogue
• Lithium-Ion Battery Technology
• Lockable Accessory Connector

In the Box

• Entel DX446L Radio
• CNB450E 2000mAh Lithium-Ion Battery Pack
• CSAHX Single Pod Rapid Mains Charger
• Spring Loaded Rear Clip
• High Efficiency Antenna
• Quick Start User Guide
