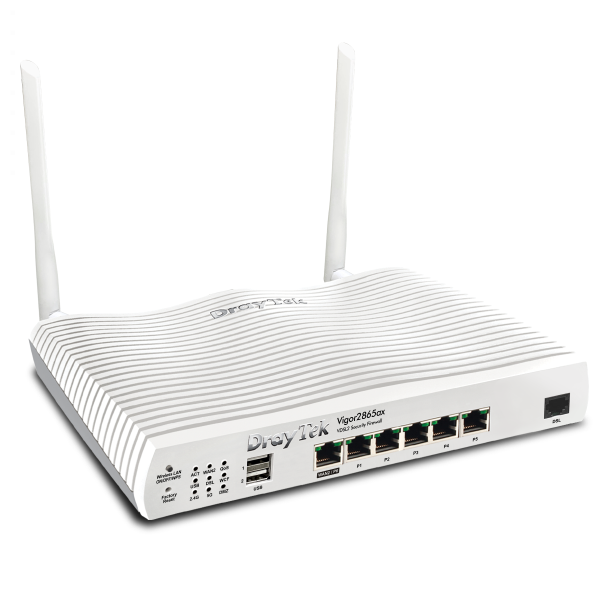

Draytek Vigor 2865ax VDSL Router with Wi-Fi 6 AX3000 Wireless

The Draytek Vigor 2865ax is a Multi-WAN Firewall VPN Router with Wi-Fi 6 AX3000 Wireless

About the DrayTek V2865AX-K

The Draytek Vigor2865ax is a VDSL2 35b/ADSL2+ Security Firewall Router that has an Integrated DSL Modem that is compatible with variants of ADSL and VDSL, including the latest 35b Supervectoring Profile.

For additional broadband flexibility, it also features a Gigabit Ethernet WAN port, enabling load balancing or failover connectivity. Furthermore, its USB ports support 3G/4G/LTE/USB modem connections.

Built-in Wi-Fi 6 technology delivers gigabit wireless speeds and reliable performance, perfect for video conferencing, low-latency gaming, and smooth 4K UHD streaming.  The Vigor 2865ax provides a reliable, cost-effective and secure networking solution for Small Businesses and Home Offices (Remote Workers).

Key Features:

VDSL & Ethernet Load Balancer

High Throughput handles fast internet connections with Load Balancing and Route Policy.

Wi-Fi 6 AX3000 Wireless

Featuring Wi-Fi 6 with 2.4 Gigabits link rate for real Gigabit Wireless.

5+1 Gigabit LAN Ports with VLANs

Extensive LAN management features, use VLANs to manage up to 8 networks.

Firewall & Content Filtering

Manage Internet Access with Firewall. App enforcement & category based web filtering.

DrayDDNS with LetsEncrypt Certificates

Each Router comes with a free DrayDDNS address and automated Let's Encrypt SSL/TLS Certificate.

Hotspot Web Portal

Provide Internet Access to guests and market your business with captive portal.

DrayTek SSL VPN

Access the Vigor 2865ax's network remotely with a TLS encrypted VPN tunnel.

Robust SMB VPN Router

Up to 32 active VPN tunnels with up to 800Mpbs IPsec Hardware Accelerated throughput.

VigorACS Central Management

Easily provision, monitor and manage remote sites without on-site IT or dedicated staff.

High Availability

Connect a pair of Vigor 2865 Series of Routers to provide a hardware backup solution.

Quality of Service with APP QoS

Easily prioritise latency sensitive applications on your network with App QoS.

Centralised LAN Management

Easily manage and provision DrayTek VigorAP Access Points and VigorSwitch Switches.

Key Specifications

• VDSL2 (Superfast Fibre) and Gigabit Ethernet WAN Router
• Multi-WAN Gigabit Peformance Router with Load Balancing & Failover
• Up to 950Mbps Firewall Throughput for Ethernet WAN
• 5+1 Gigabit RJ45 LAN Ports
• Up to 800Mbps VPN Throughput with IPsec Acceleration
• 32 LAN to LAN & Remote Teleworker VPN Tunnels
• AX3000 - Wi-Fi 6 Dual Band Wireless
• 8 LAN Subnets with VLANs (Port Based / 802.1q)
• SPI Firewall and Content Filtering
• Can be Centrally Managed by VigorACS

Specifications:

Physical Interfaces

• WAN1- VDSL2 / VDSL2 35b / ADSL2+, RJ-11
• WAN2 / LAN Switchable Port - 1x Gigabit Ethernet (1G/100M/10M), RJ-45
• LAN Ports - 5x Gigabit Ethernet (1G/100M/10M), RJ-45
• 2 x USB 2.0 Ports for 3G/4G Modem, Thermometer or Printer
• 2 x Removable Wireless Antennas
• Wireless On / Off / WPS Button
• Recessed Factory Reset Button

Performance:

NAT Performance

• 100 Mb/s Max Sync Rate with VDSL2
• 300 Mb/s Max Sync Rate with VDSL2 35b
• 950 Mb/s NAT Throughput for Ethernet WAN with Hardware Acceleration
• 1.3Gb/s Total Multi-WAN NAT Throughput
• 800 Mb/s NAT Throughput per WAN without Hardware Acceleration
• 60,000 NAT Sessions
• 8000 Hardware Accelerated NAT Sessions

VPN Performance

• 300 Mb/s IPsec (AES256) VPN Performance
• 800 Mb/s Hardware Accelerated IPsec VPN Performance
• 130 Mb/s SSL VPN Performance
• Max. 32 Concurrent VPN Tunnels
• Max. 16 Concurrent SSL VPN / OpenVPN Tunnels

WAN Interfaces

• WAN1 - VDSL2 / VDSL2 35b / ADSL2+
• WAN2 - Gigabit Ethernet

Internet Connection

• Load Balancing - IP-Based, Session-Based
• Hardware Acceleration
• 802.1p/q Multi-VLAN Tagging
• Multi-VLAN/PVC
• WAN Active on Demand - Link Failure, Traffic Threshold
• Connection Detection - PPP, ARP Detect, Ping Detect
• WAN Data Budget
• Dynamic DNS
• DrayDDNS - with Automated LetsEncrypt Certificates
• Full Feature-Set Hardware Acceleration - Hardware Accelerated Quality of Service, Multi-WAN Data Budget, Traffic Graph & Data Flow Monitor, Bandwidth Limit, Hardware Acceleration for Wireless Clients
• IPv4 Connection Types - PPPoA, PPPoE, MPoA, DHCP, Static IP, PPTP/L2TP (Ethernet WAN Only)
• IPv6 Connection Types - Ethernet -  PPP, DHCPv6, Static IPv6, TSPC, AICCU, 6rd, 6in4 Static Tunnel, 4G/LTE Modem & USB 4G/LTE Modem - TSPC, AICCU

VDSL & ADSL Features

• BT Infinity Option 1 & Option 2 Compatible
• Compliant with Openreach SIN 498
• Auto Detection of VDSL and ADSL Line Modes
• Support for GJNP & Vectoring

VDSL Standards

• ITU-T G.993.1 VDSL
• ITU-T G.993.2, G.997.1 VDSL2
• Band Plan - G.998, G.997
• Annex A, Annex B, Annex C
• VDSL2 Profile - 8a, 8b, 8c, 8d, 12a, 12b, 17a, 35b
• OLR, UPBO, DPBO Supported
• US0 Supported
• Loop Diagnostic Mode
• DSL Forum WT-114

ADSL Standards

• ANSI T1.413 Issue2
• ITU-T G.992.1 G.dmt (ADSL)
• ITU-T G.992.2 G.lite
• ITU-T G.992.3 ADSL2
• ITU-T G.992.5 ADSL2+

ATM Protocols

• RFC-2684/RFC-1483 Multiple Protocol over AAL5
• RFC-2516 PPP over Ethernet
• RFC-2364 PPP over AAL5
• Support for RFC4638 for MTU up to 1500

Wireless Features

• AX3000 Wi-Fi 6 Wireless
• 802.11ax 2x2 Wireless Access Point
• Compatible with 802.11a/b/g/n/ac Wireless
• Dual-Band (2.4/5Ghz) Simultaneous Wireless
• Up to 2400Mbps PHY rate at 160MHz with 5GHz
• Up to 574Mbps PHY rate at 40MHz with 2.4GHz
• Channel Bandwidth - 20/40MHz for 2.4GHz, 20/40/80/160MHz for 5GHz
• OFDMA, MU-MIMO
• Tx Beamforming
• 1024-QAM
• Hardware Acceleration for Wireless Clients
• Up to 4 SSIDs per Radio Band
• Extended 5GHZ Band - Channels 36-48, 52-64, 100-140
• Wireless Optimisation - Airtime Fairness, AP-Assisted Mobility, Band Steering
• Bandwidth Management (Per Station / Per SSID)
• WMM (Wireless MultiMedia)
• WPS - WiFi Protected Setup
• Station Control - Time Limited Wireless Connectivity per Station (e.g. 1 hour)
• EAPOL Key Retry - Disable EAPOL Key Retry to Protect Unpatched WLAN Clients from KRACK
• Wireless Security - WPA2, WPA3 - Requires f/w 4.3.0, Pre-Shared Key Authentication, Enterprise 802.1x Authentication, WEP/WPA for Legacy Clients, Access Control – Blacklist / Whitelist Client MAC Addresses per SSID

Router Central Management Features

• AP Management - Up to 20 VigorAP Access Points
• Switch Management -  Up to 10 VigorSwitch Network Switches
• VPN Management - Up to 8 Vigor Routers

Networking Features

• Policy-based Routing - Protocol, IP Address, Port, Domain/Hostname, Country
• High Availability - Active-Standby, Hot-Standby
• DNS Security (DNSSEC)
• Local RADIUS server
• SMB File Sharing (Requires External Storage)
• Multicast - IGMP Proxy, IGMP Snooping & Fast Leave, Bonjour
• Routing Features - IPv4 & IPv6 Static Routing, Inter-VLAN Routing, RIP v1/v2/ng, BGP

Package Contents

• Vigor 2865ax Router
• Quick Start Guide
• Screws & Wall Plugs for Wall Mounting
• 2m Cat-5e RJ-45 Network Cable
• 2x Detachable Wireless LAN Antennas
• DC 12V Power Supply with UK Plug
