DrayTek Vigor 2862N Wireless ADSL/VDSL Modem Router with Firewall

This Product is End of Life

Please Click Here for the Recommended Alternative - DrayTek Vigor 2865

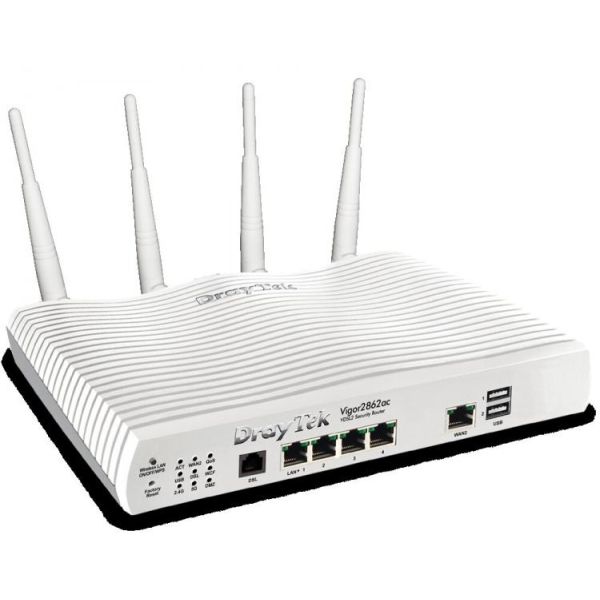

DrayTek Vigor 2862N Wireless ADSL/VDSL Modem Router with Firewall

The Vigor 2862 Series is the new flagship Router/Firewall. its the'Ultimate DSL Router', Supporting both ADSL or VDSL (BT Infinity™/FTTC) and packed with professional level features to increase security as well as functionality, making it an ideal Router for any Scenario.

As well as ADSL/VDSL support, alternative WAN ports can instead provide connectivity to Ethernet feeds (Gigabit WAN2 is switchable with LAN Port 5*), secondary xDSL modems or a 3G/4G cellular service using a supported USB adapter. These multiple LAN feeds can be combined for failover or load balancing.

The DrayTek 2862N includes support for other professional features such as VLAN Tagging, QoS (Quality of Service Assurance), High Availability, DNS Filter, Policy Based Routing and User Access Control.

Hotspot features with customisable branding and wording can be applied to guest network VLANs and SSIDs - Click here for DrayTek's Hotspot Web Portal Information - https://www.draytek.co.uk/information/our-technology/hotspot-portal

If Draytek Wireless Access Points are deployed, the Vigor 2862N can act as the Central Management Controller - Click here for further information -https://www.draytek.co.uk/information/our-technology/wireless

A 5-Port Gigabit Ethernet switch on the LAN side provides high speed connectivity for your server, other local PC's or uplink to a larger Ethernet Switch.

Comprehensive security features include content filtering, web application controls and an object based firewall management system. Port 5 is switchable with WAN2 to use it an an Ethernet WAN port instead of a LAN port.

Robust & Comprehensive Firewall

DrayTek Routers take security seriously, the firewall protects against attacks, including DoS (Denial of Service) attacks, IP based attacks and attacks by any unauthorised remote systems. The firewall allows even more setup flexibility, enabling users to create combinations of firewall rules and restrictions to suit multi-departmental organisations, The Vigor 2862N also allows selective direction firewall rules of LAN to WAN, WAN to LAN or LAN to VPN.

Runs on Either ADSL or VDSL

The Vigor 2862N has a built in DSL interface that will connect to either an ADSL or VDSL2 line. If a second line of either type is available, an additional Modem can be added (or your existing Modem from your other line) to the Vigor 2862N's WAN ports. The two lines can be set up in balancing mode, where traffic is split across both of them, or into failover mode, where the other DSL line only kicks in if the primary DSL line fails (or vice versa).

ADSL makes a good method of failover for VDSL because they are delivered differently. VDSL service is provided and powered by a cabinet in the street, that is where the line terminates. ADSL service comes from your local exchange and is powered from there. This means if the VDSL's cabinet is damaged, the DSLAM fails or power is lost to the street, VDSL is lost, but ADSL lines come via a different method and route so is less likely to be affected.

IPv6 - Next Generation Internet Routing

The Vigor 2862N supports IPv6 - the successor to the current IPv4 addressing system that has been used since the Internet was first created. IPv4 address space is full up and IPv6 allows for much more efficient routing and a larger address space. IPv6 is supported both from your own ISP, but if your ISP does not (yet) support IPv6, the Vigor 2862N also supports IPv6 broker/tunnel services to provide IPv6 access using either TSPC or AICCU via 3rd party IPv6 providers.

User Management/Authentication

The Vigor 2862N has built in user management which allows you to provide conditional internet access with Time and Data usage quotas to different users, based on their own unique login (stored in the router or an external Radius Server.

VPN Features & SSL VPN

VPN - Linking remote offices, HQ, Teleworkers and Mobile Staff

A feature central to DrayTek routers it its VPN (Virtual Private Networking) capabilities. A VPN enables users to link remote offices and branch offices back to HQ, or home based/mobile teleworkers back to your office. Once connected, they have access to your office/remote resources through a secure encrypted tunnel allowing remote desktop, file sharing and seamless access to other resources and devices.

The Vigor 2862N allows you to have up to 32 simultaneous VPN tunnels to remote offices or teleworkers. It supports all common industry standard protocols, encryption types and authentication methods (see specification tab for full support list). Teleworkers can authenticate directly with your LDAP server if preferred.

VPN Trunking is supported on the Vigor 2862N, allowing users to create tunnels down multiple WAN connections to a remote site in order to increase bandwidth. VPN Trunking provides failover (backup) of your VPN route down a secondary WAN connection. Learn more about DrayTek VPN here - https://www.draytek.co.uk/information/our-technology/vpn-overview

Specifications & Physical Interfaces

• Lan Ports (Switch)
• 5 x Gigabit Ethernet (1000Mb/s) Ports - Lan Port 5 Switchable with WAN2 (req. f/w 3.8.8 or Later)

WAN Ports

• WAN1 - ADSL/VDSL, RJ11
• WAN2 - Gigabit Ethernet (1000Mb/s) Ethernet for Load Balance and WAN Failover - Switchable with LAN Port 5
• WAN3 - USB 2.0 Port for 3G/4G Modem, Thermometer or Printer
• WAN4 - USB 2.0 Port for 3G/4G Modem or Printer (Not on Vigor 2862Ln)
• Wireless WAN - Wireless Interface can Provide WAN Connectivity



Performance

• Firewall - Up to 400Mb/s Max
• IPSec VPN - Up to 60Mb/s Max



ADSL Compatibility

• ANSI T1.413 Issue2
• ITU-T G.992.1 G.dmt (ADSL)
• ITU-T G.992.2 G.lite
• ITU-T G.992.3 ADSL2
• ITU-T G.992.5 ADSL2+
• Annex L (READSL)
• Annex A
• Annex M
• ANFP Issue 3 Compliant/Certified (for Annex A & Annex M)
• DSL Forum : TR-048/67 & TR-100



VDSL Compatibility

• BT Infinity Option 1 & Option 2 Compatible
• BT SIN 498 - MCT Approved
• Support for G.INP & Vectoring
• ITU-T VDSL2 G.993.2
• ITU-T G.993.1, G.997.1
• Band Plan: G.998, G.997
• Annex A, Annex B, Annex C
• VDSL2 Profile: 8a, 8b, 8c, 8d, 12a, 12b, 17a, 30a
• OLR, UPBO, DPBO Supported
• US0 Supported
• Loop Diagnostic Mode
• DSL Forum WT-114



Load Balance/Failover Features - Outbound Policy-Based Load-Balance to Direct Traffic Via:

• NAT or Routing
• WAN Interface
• LAN Interface
• Specific LAN Gateway
• VPN Tunnel
• IP-Based or Session-Based Load Balance Modes
• WAN Connection Fail-over
• BoD (Bandwidth on Demand)
• WAN1 PPPoE/PPPoA Fallback Account, used if the Primary Details are Unable to Establish a Working Connection
• Configurable Load-Balance pool, specify WAN Interfaces to Load Balance
• WAN Budget



Vigor 2862N ATM Protocols (DSL)

• RFC-2684/RFC-1483 Multiple Protocol over AAL5
• RFC-2516 PPP over Ethernet
• RFC-2364 PPP over AAL5
• PPPoE pass through LAN/WLAN
• PPPoE/PPPoA Relay
• Transparent bridge for MPoA
• Multiple PVC support for Triple Play Applications (up to 8 Simultaneous)
• Support for RFC4638 for MTU up to 1500



Wireless LAN Features

• 802.11g/b/n and 802.11ac (Vigor 2862ac only)
• Backward Compatibility for 802.11b/g
• Wireless Features on Vigor 2862ac:802.11a
• 802.11ac (5Ghz)
• 4x4 MU-Mimo (5Ghz)
• Up to 4 Spacial Streams
• TX Beam Forming
• 1733Mb/s Link Rate (5Ghz) + 300Mb/s (2.4Ghz)
• Dual-band (2.4/5Ghz) Simultaneous Wireless
• 256QAM
• Extended DFS Frequency Range
• Multiple SSID : Create up to 4 Virtual Wireless LANs (Independent or Joined)
• Packet Aggregation and Channel Bonding
• Optional Higher Gain or Directional Aerials Available
• Active Client list in Web Interface
• Wireless LAN Isolation (from VLAN groups and wired Ethernet Interfaces)
• 64/128-bit WEP Encryption
• WPA/WPA2 Encryption
• Switchable Hidden SSID
• Restricted Access list for Clients (by MAC address)
• Time Scheduling (WLAN Radio can be Disabled at Certain Times of Day)
• Time Scheduling for individual SSIDs

• Access Point Discovery
• WDS (Wireless Distribution system) for WLAN Bridging and Repeating
• 802.1x Radius Authentication
• Wireless VLAN
• Wireless Rate-Control
• Automatic Power Management
• 802.11e WMM (Wi-Fi Multimedia)
• Station Control, Limit Wireless Client Access Time Per Day
• Airtime Fairness!
• Band Steering
• Wireless WAN mode for WAN2, Switchable with Ethernet (Wireless Models Only)



WAN Protocols

• DHCP Client
• Static IP
• PPPoE
• PPTP
• BPA



Firewall & Security Features

• CSM (Content Security Management):
• URL Keyword Filtering - Whitelist or Blacklist Specific Sites or Keywords in URLs
• Block Websites by Category (e.g. Adult, Gambling etc. Subject to Subscription)
• Prevent Accessing of Websites by using their Direct IP Address (Thus URLs Only)
• Blocking Automatic Download of Java Applets and ActiveX Controls
• Blocking of Website Cookies
• Block http Downloads of File Types -Binary Executable : .EXE / .COM / .BAT / .SCR / .PIF
• Compressed - .ZIP / .SIT / .ARC / .CAB/. ARJ / .RAR
• Multimedia - .MOV / .MP3 / .MPEG / .MPG / .WMV / .WAV / .RAM / .RA / .RM / .AVI / .AU
• Time Schedules for Enabling/Disabling the Restrictions
• Block Popular P2P (Peer-to-Peer) File Sharing Programs
• Block Instant Messaging Programs (e.g. IRC, Skype/Yahoo Messenger etc.)
• DNS Filter - Use DNS to Enforce Categorisation
• Web Portal
• Multi-NAT (32 WAN IPs per WAN1 & WAN2)
• DMZ Host
• DMZ Port (via LAN port P1, switchable)
• 40 Port Redirection Rules
• 40 Open Port Rules (10 Port Ranges Per Rule)
• Policy-Based Firewall
• MAC Address Filter
• SPI ( Stateful Packet Inspection ) with new FlowTrack Mechanism
• DoS / DDoS Protection
• IP Address Anti-Spoofing
• E-Mail Alert and Logging via Syslog
• Bind IP to MAC Address
• User Management - Up to 200 Profiles
• Supports External Authentication via LDAP or RADIUS
• Per User Bandwidth and Time Quota
• Schedule Control to Delete or Disable Account Automatically



Bandwidth Management

• Quality of Service (QoS- For Devices in the NAT Subnet According to Source or Destination IP)
• Guaranteed Bandwidth for VoIP
• Class-Based Bandwidth Guarantee by User-Defined Traffic Categories
• Layer 2&3 (802.1p & TOS/DCSP)
• DiffServ Code Point Classifying
• 4-level Priority for each Direction (Inbound / Outbound)
• Bandwidth Borrowed
• App QoS - Classify Traffic by Application
• Temporary (5 Minute) Quick Blocking of any LAN Client
• Bandwidth Limit (Shared or individual Limit)
• Smart Bandwidth Limitation (Triggered by Traffic / Session)
• Session Limit



Network/Router Management

• Web-Based User Interface (HTTP / HTTPS)
• CLI ( Command Line Interface ) / Telnet / SSH
• Web Console: Access CLI through Web Interface
• Administration Access Control
• Brute Force Protection
• Configuration Backup / Restore
• Configuration Import from Vigor 2820, Vigor 2830, Vigor 2850 & Vigor 2860
• Built-in Diagnostic Function
• Firmware Upgrade via Web Interface, TFTP, FTP
• Logging via Syslog
• Supports SmartMonitor (up to 50 IPs monitored)
• SNMP v2 & v3 Management with MIB-II
• TR-069
• TR-104
• Access Point Management: Centrally Manage up to 20 DrayTek VigorAPs
• Switch Management: Centrally Manage up to 10 DrayTek Vigor Switches



VPN Facilities

• Up to 32 Concurrent VPN Tunnels (Incoming or Outgoing)
• Tunnelling Protocols:PPTP
• IPSec
• L2TP
• L2TP over IPSec
• DrayTek SSL
• GRE



IPSec Features

• Internet Key Exchange - IKEv1 (Main and Aggressive Mode) & IKEv2
• Security Protocols - AH Mode, ESP Mode
• DiffieHelman (DH) Groups:IKEv1 : 1,2,5,14
• IKEv2 : 1,2,5,14,19,20,21



Encryption

• DES / 3DES (168bits)
• AES (128/192/256bits) - Hardware-Accelerated



Authentication - Hardware Accelerated

• MD5
• SHA-1
• SHA-256
• IKE Authentication - Pre-shared Key or X.509 Digital Signature
• DHCP over IPSec
• NAT-Traversal (NAT-T)
• Dead Peer Detection (DPD)
• Port forwarding (Port Redirection, Open Ports) to Remote Clients Connected via an IPsec LAN to LAN VPN
• SSL VPN for Teleworkers - Up to 16 Simultaneous users. Proxy or tunnel
• LAN-to-LAN & Teleworker-to-LAN connectivity
• MOTP (Mobile One Time Password) for two Factor Authentication (2FA)
• Virtual IP Mapping, Map a Remote IP Subnet/range to Another Range to Resolve IP Subnet/Range Conflicts
• VPN Pass-Through



Network Features

• Port-Based VLAN (Inclusive/Exclusive Groups)
• 802.1q VLAN Tagging
• Port Mirroring
• 802.1X Port Authentication
• Multi Subnet DHCP Servers with DHCP Relay
• LAN Clients - Up to 1022 per Subnet (for Subnets 1-3)
• Custom DHCP Option Support
• Dynamic DNS
• DNSSEC Support
• DNS Transparent Proxy
• DNS Caching
• LAN DNS (Supports CNAME)
• NTP Client (Synchronise Router Time)
• Call Scheduling (Enable/Trigger Internet Access by Time)
• RADIUS Client
• LDAP Client
• TACACS+ Client
• High Availability
• Internal RADIUS Server
• Microsoft™ UPnP Support
• Maximum MTU 1534
• Routing Protocols - Static Routing (30 Routes), RIP V2, RIPng for IPv6



Operating Requirements

• Rack Mountable (Optional Vigor RM1 mounting bracket required)
• Wall Mountable
• Temperature Operating : 0 °C ~ 45 °C
• Storage : -25 °C ~ 70 °C
• Humidity 10% ~ 90% (non-condensing)
• Power Consumption: 18 Watt Max.
• Dimensions: L240.96 * W165.07 * H43.96 ( mm )
• Operating Power: DC 12V (via external PSU, Supplied)
• Warranty - Two (2) Years RTB
• Power Requirements - 220-240VAC
