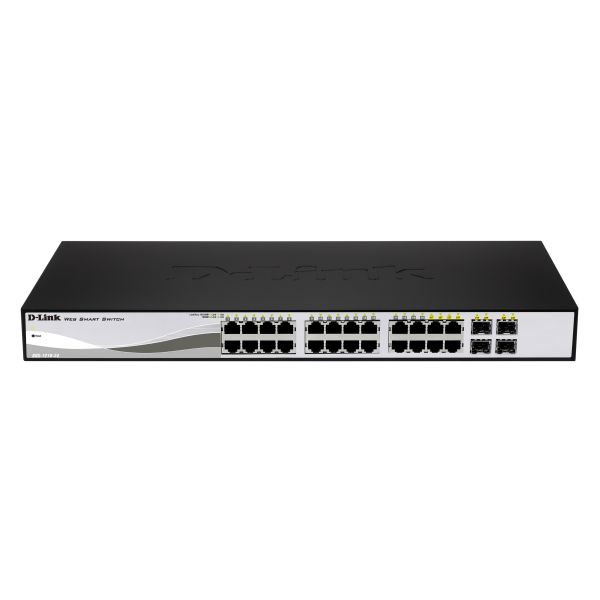

D-Link DGS-1210-24 24 Port Gigabit Switch with 4 SFP Ports

The DGS-1210 Series Gigabit Smart Managed Switches is the latest generation of D-Link Smart Managed Switches featuring D-Link Green 3.0 technology. The series offers a high level of energy saving and efficiency, as it also complies with the IEEE 802.3az Energy Efficient Ethernet standard. Support for IPv6 management and configurations ensures your network remains protected after the upgrade from IPv4 to IPv6. By offering multiple management options, the Smart Managed Switches allows quick deployment, infrastructure expansion, and seamless function upgrades. Built for small and medium-sized businesses, the DGS-1210 Series Smart Managed Switches provide functionality, security, and manageability for a fraction of the standard cost of ownership.

The DGS-1210 Series Gigabit Smart Managed Switches includes a range of affordable PoE-enable switches for businesses looking to power VoIP phones, wireless access points or network cameras. The DGS-1210-08P is a 8-port Smart Managed PoE Switch that provides 8 PoE-enabled ports that can supply power of up to 15.4 W each. Whereas the DGS-1210-24P is a 24-port Smart Managed PoE Switch that provides 12 PoE-enabled ports that can support up to 30 W of power output following IEEE 802.3at standard. The design allows more flexibility in power allocation for a variety of powered devices with affordable installation costs.

The D-Link DGS-1210 Series is designed for easy management. All configurations can be made through a Web interface regardless of the host PC’s operating system. Furthermore, the web UI contains ten language options to make operations more straightforward. During the first installation, the D-Link Network Assistant will automatically discover all D-Link Smart Managed Switches in the network, allowing administrators to assign IP addresses and the subnet mask quickly. It also allows simultaneous firmware upgrades to multiple switches, saving a great deal of time. The D-Link Network Assistant1’s important management commands, such as downloading firmware or a configuration file, offer a sophisticated method of batch operations for multiple switches.

DGS-1210 Series are capable of conserving power without sacrificing operational performance or functionality by using D-Link Green 3.0 technology. Using the Energy Efficient Ethernet standard, the network will automatically decrease the power usage when traffic is low with no setup required. For environments not fully supporting the standard, DGS-1210 switches offer advanced power-saving settings including port shutoff and standby, LED shutoff, and system hibernation based on custom scheduling profiles. The profiles can also be applied to the PoE switch so that there is no unnecessary power consumption during off hours. The DGS-1210 Series switches can also detect the length of connected cables to automatically reduce power usage on shorter cable connections.

The process of setting up IP surveillance and VoIP on a network is automated and cannot be easier. Auto Surveillance VLAN (ASV) consolidates data and surveillance video transmission through the network, sparing businesses the expense of maintaining dedicated facilities. ASV also protects the quality of real-time video by grouping IP surveillance devices on a single high priority VLAN. This ensures that surveillance video streams will not be affected when ordinary data traffic is at their highest levels. Similarly, the Auto Voice VLAN guarantees clear audio quality and efficient transmission for all voice communication.

Equipped with a complete line-up of L2 features, the DGS-1210 Series switches include IGMP Snooping, Port Mirroring, Spanning Tree, and Link Aggregation Control Protocol (LACP). The IEEE 802.3x Flow Control function allows servers to directly connect to the switch for fast, reliable data transfer. At 2000 Mbps Full Duplex, the Gigabit ports provide high-speed data pipes to servers with minimum data transfer loss. Network maintenance features include Loopback Detection and Cable Diagnostics. Loopback Detection is used to detect loops created by a specific port and automatically shut down the affected port. The Cable Diagnostic feature is designed primarily for administrators and customer service representatives, and can rapidly discover the type of error and determine the cable quality.

D-Link’s innovative Safeguard Engine protects the switches against traffic flooding caused by virus attacks. The switches also support 802.1X port-based authentication, allowing the network clients to be authenticated through external RADIUS servers. In addition, the Access Control List (ACL) feature enhances network security and protects the network by screening traffic from illegal MAC or IP addresses. ARP Spoofing Prevention prevents malicious intruders from sending massive fake ARP messages through a manipulated source. This protects important data from being stolen by Man-in-the-Middle attacks, and prevents wasting CPU cycles on these packets. For added security, the DHCP Server Screening feature blocks rogue DHCP server packets from user ports to prevent unauthorized IP assignment.

DGS-1210-24 - 24 ports

DGS-1210-24 - 4 ports

DGS-1210-24 - 56 Gbps

DGS-1210-24 41.7Mpps

• 16K

• 6 MB per device

• Up to 13,000 Bytes

• Power (per device)
• Link/Activity/Speed (per 10/100/1000 Mbps port)
• Link/Activity/Speed (per SFP port)

• DGS-1210-24 - 3.6W / 17.6W

• 10 to 240 VAC, 50/60HZ internal universal power supply

• DGS-1210-24 - 441 x 209.9 x 44 mm

• Operating: -5° to 50°C (23° to 112°F)
• Storage: -20° to 70°C (-4° to 158°F )

• CE Class A

• cUL, LVD

• L2 Features
• MAC Address Table: 16K
• Flow Control
• 802.3x Flow Control
• HOL Blocking Prevention
• Jumbo Frame up to 13,000 Bytes
• IGMP Snooping
• IGMP v1/v2 Snooping
• IGMP Snooping v3 Awareness
• Supports 256 IGMP groups
• Supports at least 64 static multicast addresses
• IGMP per VLAN
• Supports IGMP Snooping Querier
• MLD Snooping1
• Supports MLD v1/v2 awareness
• Supports 256 groups
• Fast Leave
• Spanning Tree Protocol
• 802.1D STP
• 802.1w RSTP
• Loopback Detection

• One-to-One, Many-to-One
• Supports Mirroring for Tx/Rx/Both
• Multicast Filtering
• Forwards all unregistered groups
• Filters all unregistered groups
• LLDP, LLDP-MED

• 802.1Q Tagged VLAN
• VLAN Group
• Max. 256 static VLAN groups
• Max. 4094 VIDs
• Management VLAN
• Asymmetric VLAN
• Auto Voice VLAN
• Max. 10 user-defined OUI
• Max. 8 default OUI
• Auto Surveillance VLAN

• 802.1p Quality of Service
• Queue Handling
• Strict
• Weighted Round Robin (WRR)
• 8 queues per port
• Bandwidth Control
• Port-based (Ingress/Egress, min. granularity for 10/100/1000Base-T ports is 15 Kb/s)
• CoS based on
• 802.1p Priority Queues
• DSCP
• ToS
• TCP/UDP port number
• IPv6 traffic class 1
• Access Control List (ACL)
• Max. 50 profiles
• Max. 200 rules shared by profiles
• Single or multiple ports (each rule)
• ACL based on, MAC Address, IPv4 Address (ICMP/IGMP/TCP/UDP), IPv6 Address (ICMP/TCP/UDP)1, 802.1p, DSCP, Ether type, IPv6 traffic class 1
• ACL Actions, Permit, Deny

• Port Security, Supports up to 64 MAC addresses per port
• Broadcast/Multicast/Unicast Storm Control
• Static MAC
• D-Link Safeguard Engine
• DHCP Server Screening
• Trusted Host
• ARP Spoofing Prevention, Max. 64 entries
• SSL, Supports v1/v2/v3, Supports IPv4/IPv6
• Traffic Segmentation
• Smart Binding 1, Discover connected devices and click to bind, ARP Packet Inspection: 512 entries, IP Packet Inspection: 128 entries, Supports DHCP Snooping

• 802.1X Port-based Authentication
• Supports RADIUS Server
• Supports EAP, OTP, TLS, TTLS, PEAP

• Cable Diagnostics
• Factory Reset

• 1213 MIB II
• 1493 Bridge MIB
• 1907 SNMP v2 MIB
• 1215 Trap Convention MIB
• 2233 Interface Group MIB
• D-Link Private MIB
• Power-Ethernet MIB
• LLDP MIB
• D-Link Zone Defense MIB1

• RFC 783 TFTP
• RFC 854 Telnet Server
• RFC 951 BootP/DHCP Client
• RFC 1157 SNMP v1, v2, v3
• RFC 1213 MIB II, IF MIB
• RFC 1215 MIB Traps Convention
• RFC 1350 TFTP
• RFC 1493 Bridge MIB
• RFC 1542 BootP/DHCP Client
• RFC 1769 SNTP
• RFC 1901 SNMP v1, v2, v3
• RFC 1907 SNMP v2 MIB
• RFC 1908 SNMP v1, v2, v3
• RFC 2068 FCS
• RFC 2131 BootP/DHCP Client
• RFC 2138 RADIUS Authentication
• RFC 2139 RADIUS Authentication
• RFC 2233 Interface Group MIB
• RFC 2246 SSL
• RFC 2475
• RFC 2570 SNMP v1, v2, v3
• RFC 2575 SNMP v1, v2, v3
• RFC 2598 CoS
• RFC 2616 FCS
• RFC 2618 RADIUS Authentication
• RFC 2819 RMON v1
• RFC 2865 RADIUS Authentication
• RFC 3164 System Log
• RFC 3195 System Log
• RFC 3411-17 SNMP
• RFC 3621 Power Ethernet MIB

• Multi-Language Web-based GUI, English (default), Simplified Chinese, Traditional Chinese, French, German, Italian, Japanese, Portuguese, Russian, Spanish
• SmartConsole Utility
• Simplified CLI
• Telnet Server
• TFTP Client
• IPv6 Neighbor Discovery
• Configurable MDI/MDIX
• SNMP, Supports v1, v2, v3

• System Log, Max. 500 log entries

• D-Link Network Assistant support1
• SNTP
• ICMPv6
• IPv4/v6 Dual Stack
• DHCP Auto Configuration
• RMON v1

• Power Saving by: Link Status, Cable Length detection, LED or Port Shutoff, Port Standby mode, System Hibernation mode, Time-based PoE (PoE model only)
