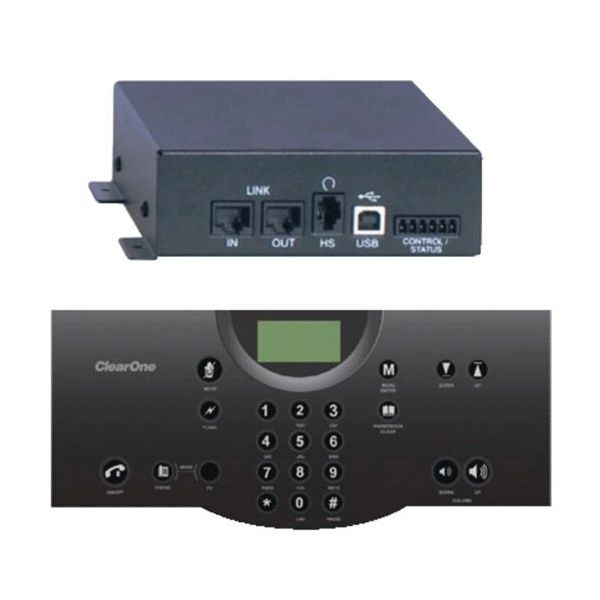

ClearOne Interact Wired Kit

Provides an interface to telephone sets via the headset port or to PC audio via a USB port. For use with ClearOne Interact Conference Units.

Features

• USB Audio Channel
• USB 2.0 Compatible
• Connector - Mini Type B
• TX and RX Channel, 16-bit at 16 kHz
• Headset Audio Channel:
• Connector - RJ11
• Supported Telephone Sets - Most Cisco, Avaya, and Nortel Phones
• Frequency Response - 40 to 3300 Hz
• THD and Noise - < 0.04% Re-Max Level with 0 dB Gain @ 1 kHz Dynamic Range: > 84 dB (Non A-Weighted)
• Receive Automatic Level Control
• Line Echo Cancellation for Side-Tone Elimination
• GPIO:
• Pin 1: Global Mute (C)
• Pin 2: Global Mute (S)
• Pin 3: ON/OFF Hook (C)
• Pin 4: ON/OFF Hook (S)
• Pin 5: 5V DC up to 40 mA

Interact Dialer

• Controller provides an intuitive interface that emulates a telephone keypad

Functions

• Dialing
• Volume Control
• Mute Control
